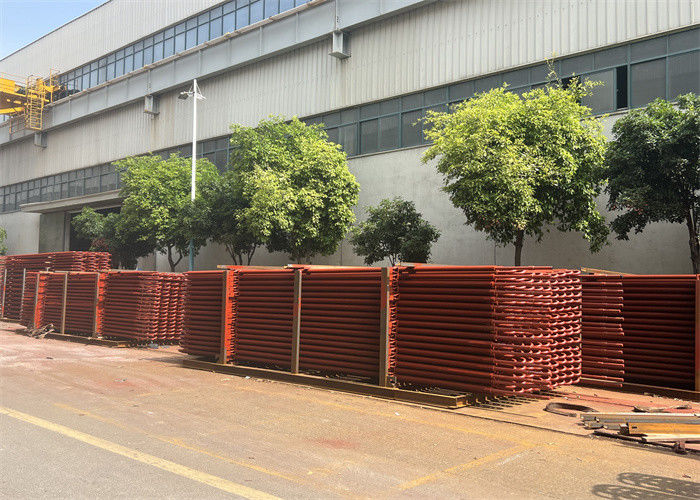

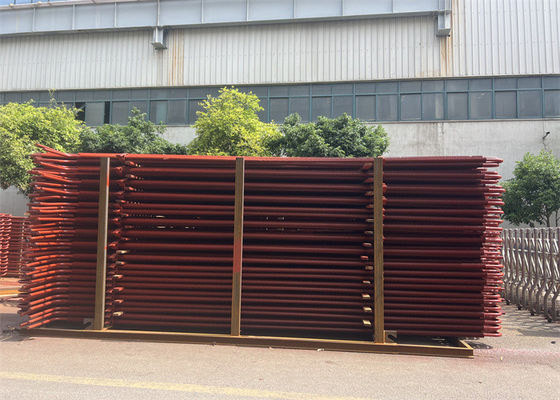

High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil

High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil

High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil
High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil
High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil
Product Details:
Place of Origin: CHINA
Brand Name: HDT
Certification: ISO9001,ASME,Grade A,SGS,EN,TUV
Model Number: Boiler Fin Tube
Payment & Shipping Terms:
Minimum Order Quantity: 2T
Price: 800 - 9000 USD / ton

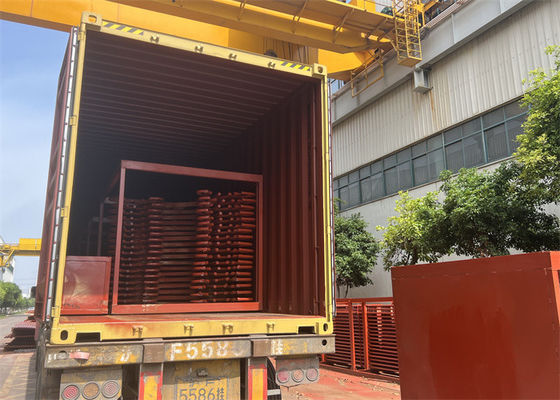

Packaging Details: seaworthy packing for exporting
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: About 10000 ton / month
Contact Now
Detailed Product Description
Type: Fin Tube,Heat Exchanger Tube Color: Customized
Package: Wooden Case With Steel Frame,In Bundles,etc. Port: Shanghai
Warranty: 1 Year Heat Transfer Efficiency: High Efficiency
Highlight:

High Frequency Welding Economizer Coil

,

High Frequency Welding Stack Economizer Coil

,

Customized Stack Economizer Coil









High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil

Boiler economizer

Boiler Economizer is the energy improving device that helps to reduce the cost of operation by saving the fuel. The economizer in Boiler tends to make the system more energy efficient. In boilers, economizers are generally designed to exchange heat with the fluid, generally water. The exhaust from the boilers is generally in the temperature range of 200°C – 250°C, so there are a huge amount of losses from the boiler if any heat recovery devices are not installed after it. Boiler Economizer that suit your boiler system and will increase its overall efficiency from 3% – 5%. Increase in boiler efficiency will save a lot of your operating cost and eventually will prolong the life of your boiler system.
We can manufacture three types of boiler economizer, bare tube economizer, H-finned tube economizer and spiral finned tube economizer.



Product Description



1.Finned Tube Heat Exchangers consist of a shell and finned tubes assembly.

2.Fins are used to increase the effective surface area of heat exchanger tubing.

3.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger, thermic fluid to air heat exchanger, when an extended surface is needed on only one fluid side or when the operating pressure needs to be contained on one fluid side.





Technical parameter



Medium air, flue gas, thermal oil, water, brine, refrigerant, etc.
Temperature standard heat exchanger to 560 ° C by special materials can be higher
Pipe materials carbon steel, stainless steel, alloy or special materials
Ribs materials carbon steel, stainless steel, non-ferrous metal, alloy or special materials
Thermal insulation &Surface treatment according to customers specification



High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil 0



Features



1. The equipment body can be designed into many modules to ensure the long term and stable running;

2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage

3. Improve the heat transfer efficiency

4. Structure arrangement: In line or staggered arrangement





Details



1.Our products can be modified according to our customers' needs and the situation.
2.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.
3.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.







Company Introduction


Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



1. Fabrication area of 200,000 square meters

2. 150 Engineers

3. 600 Coded welders

4. 60 Licensed Inspectors(NDT Level-III instructors)

5. Class-A Licenses for Design and Manufacture Boiler

6. ISO 9001:2008 Quality System

7. ASME Certificate of Power Boilers

8. ASME 'S','U' and NB stamp authorization
