High Pressure Carbon Steel Seamless Tube Boiler Parts as Superheater Reheater in Power Plant
Product Details
| Product Name: | Boiler Tube | Standard: | Chinese GB5310 |
|---|---|---|---|
| Application: | Heating-pipelines,containers,coal-saving Devices Superheaters And Reheaters | Main Steel Pipe Grade: | 20G 、 25MnG 、 15MoG 、 15CrMoG 、 12Cr2MoG 、 12Cr1MoVG |
| Highlight |
cs seamless pipe,cs galvanized pipe |
||
Product Description

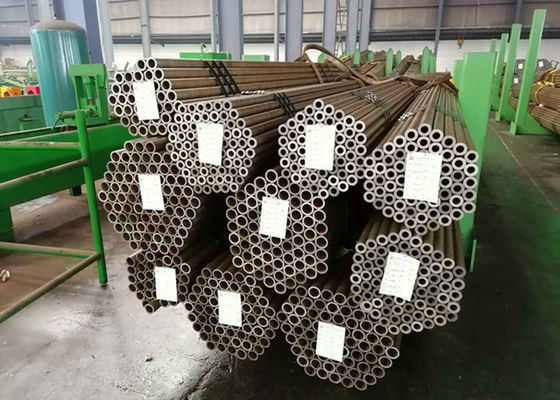

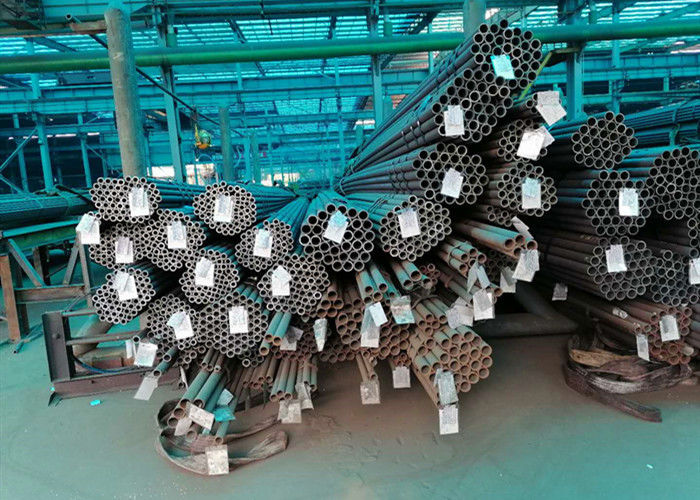

Seamless Steel Tube for High Pressure Boilers in Power Plant
Company Introduction
Zhangjiagang Hua Dong Energy Technology Co., Ltd. is a high-tech enterprise specialized in producing all kinds of stainless, carbon and alloy steel tubes and pipes, steel plates which are widely used in the field of boiler&heat exchanger, energy, petrochemical, mining, food, paper, gas and fluid industry. And we have passed the attestations including ASME, TUV, Grade A, ISO9001, EN12952, EN10216, SO3834.
Product Details
Standard : Chinese GB5310
Application : It is used for heating-pipelines,containers,coal-saving devices superheaters and reheaters of high pressure boilers (P>9.8Mpa, 450 ℃ <T< 650 ℃ )
Main steel pipe grade : 20G , 25MnG , 15MoG , 15CrMoG , 12Cr2MoG , 12Cr1MoVG ( Other grade is also negotiable. )
Chemical Compositon & Mechanical Propertise :
| Standard | Grade | Chemical Composition(%) | ||||||
| C | Mn | Si | V | Cr | Mo | P.S | ||
| GB5310 | 20G | 0.17~0.24 | 035~0.65 | 0.17~0.37 | / | / | / | ≤ 0.030 |
| 25MnG | 0.22~0.30 | 0.70~1.00 | 0.17~0.37 | / | / | / | ≤ 0.030 | |
| 15MoG | 0.12~0.20 | 0.40~0.80 | 0.17~0.37 | / | / | 0.25~0.35 | ≤ 0.030 | |
| 15CrMoG | 0.12~0.18 | 0.40~0.70 | 0.17~0.37 | / | 0.80~1.10 | 0.40~0.55 | ≤ 0.030 | |
| 12Cr2MoG | 0.08~0.15 | 0.40~0.70 | ≤ 0.50 | / | 2.00~2.50 | 0.90~1.20 | ≤ 0.030 | |
| 12Cr1MoVG | 0.08~0.15 | 0.40~0.70 | 0.17~0.37 | 0.15~0.30 | 0.90~1.20 | 0.25~0.35 | ≤ 0.030 | |
| Mechanical Propertise | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | |||||
| 20G | 410~550 | ≥ 245 | ≥ 24 | |||||
| 25MnG | ≥ 415 | ≥ 240 | ≥ 22 | |||||
| 15MoG | 450~600 | ≥ 270 | ≥ 22 | |||||
| 15CrMoG | 440~640 | ≥ 235 | ≥ 21 | |||||
| 12Cr2MoG | 450~600 | ≥ 280 | ≥ 20 | |||||
| 12Cr1MoVG | 470~640 | ≥ 255 | ≥ 21 | |||||
Product Highlights
Seamless Steel Tube for High Pressure Boilers in Power Plant Company Introduction Zhangjiagang Hua Dong Energy Technology Co., Ltd. is a high-tech enterprise specialized in producing all kinds of stainless, carbon and alloy steel tubes and pipes, steel plates which are widely used in the field of ...
High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil
High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil Boiler economizer Boiler Economizer is the energy improving device that helps to reduce the cost of operation by saving the fuel. The economizer in Boiler tends to make the system more energy efficient. In boilers, economizers are generally designed to exchange heat with the fluid, generally water. The exhaust from the boilers is generally in the temperature range of 200°C – 250°C, so there
High Frequency Welding Boiler Spiral Fin Tube For Economizer Heat Transfer
High Frequency Welding Boiler Spiral Fin Tube For Economizer Heat Transfer Boiler economizer Boiler Economizer is the energy improving device that helps to reduce the cost of operation by saving the fuel. The economizer in Boiler tends to make the system more energy efficient. In boilers, economizers are generally designed to exchange heat with the fluid, generally water. The exhaust from the boilers is generally in the temperature range of 200°C – 250°C, so there are a huge
Heat Exchanger H Type Boiler Parts Tube For Utility Power Station Plant
High Efficient Heat Exchang H Type High Temperature Resistance Boiler Parts For Utility/Power Station Plant Product Introduce H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface.H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H
Extension Heating Surface Boiler Fin Tube For Industrial Power Plant Boiler
Energy Saving Extension Heating Surface Boiler Fin Tube For Industrial Power Plant Boiler Product Description H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface. H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H economizer,
