TP304L TP316L Seamless Welded Stainless Steel Pipe / Welding Stainless Pipe ASTM A249 ASME SA249 38.1*1.2 1.5MM

TP304L TP316L Seamless Welded Stainless Steel Pipe / Welding Stainless Pipe ASTM A249 ASME SA249 38.1*1.2 1.5MM

  • TP304L TP316L Seamless Welded Stainless Steel Pipe / Welding Stainless Pipe ASTM A249  ASME SA249 38.1*1.2 1.5MM
  • TP304L TP316L Seamless Welded Stainless Steel Pipe / Welding Stainless Pipe ASTM A249  ASME SA249 38.1*1.2 1.5MM
  • TP304L TP316L Seamless Welded Stainless Steel Pipe / Welding Stainless Pipe ASTM A249  ASME SA249 38.1*1.2 1.5MM
  • TP304L TP316L Seamless Welded Stainless Steel Pipe / Welding Stainless Pipe ASTM A249  ASME SA249 38.1*1.2 1.5MM
TP304L TP316L Seamless Welded Stainless Steel Pipe / Welding Stainless Pipe ASTM A249  ASME SA249 38.1*1.2 1.5MM
Product Details:
Place of Origin: China(Mainland)
Brand Name: HDT
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: TP304,TP304L,TP316L,TP316H, TP316Ti,TP321,TP410
Payment & Shipping Terms:
Minimum Order Quantity: 5T
Price: 800 - 9000 USD / ton
Packaging Details: seaworthy packing for exporting
Delivery Time: 60-75days
Payment Terms: L/C, T/T, Western Union
Supply Ability: About 10000 ton / month
Contact Now
Detailed Product Description
Material: TP304,TP304L,TP316L,TP316H, TP316Ti,TP321,TP410 Finishing: Annealed & Pickled/Bright Annealed
Application: Boiler, Energy, Petrochemical, Mining, Food, Paper, Gas And Fluid Industry Shape: Round Seamless
Outer Diameter: 6.00mm To 830mm Wall Thickness: 0.5mm To 48mm
Highlight:

ss welded pipe

,

ss welded tube

ASTM A249 / ASME SA249 TP304 TP304L TP316L Stainless Steel Welded Tube BA 38.1*1.2/1.5MM



Hua Dong Energy Technology has more than 35 years experience for heat exchanger tube / boiler tube/ cooling tube,

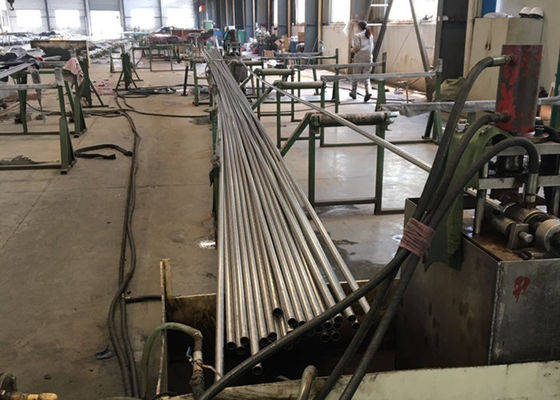

TP304L TP316L Seamless Welded Stainless Steel Pipe / Welding Stainless Pipe ASTM A249  ASME SA249 38.1*1.2 1.5MM 0



ASTM A 249 / SA 249
Standard Specification for Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes


1.1 This specification covers nominal-wall-thickness welded tubes made from the austenitic steels listed in Table 1, with various grades intended for such use as boiler, superheater, heat exchanger, or condenser tubes.

1.2 Grades TP304H, TP309H, TP309HCb, TP310H, TO310HCb, TP316H, TP321H, TP347H, and TP348H are modifications of Grades TP304, TP309S, TP309Cb, TP310S, TP310Cb, TP316, TP321, TP347, and TP348, and are intended for high-temperature service such as for superheaters and reheaters.

1.3 The tubing sizes and thicknesses usually furnished to this specification are 1/8 in. [3.2 mm] in inside diameter to 5 in. [127 mm] in outside diameter and 0.015 to 0.320 in. [0.4 to 8.1 mm], inclusive, in wall thickness. Tubing having other dimensions may be furnished, provided such tubes comply with all other requirements of this specification.

1.4 Mechanical property requirements do not apply to tubing smaller than 1/8 in. [3.2 mm] in inside diameter or 0.015 in. [0.4 mm] in thickness.

1.5 Optional supplementary requirements are provided and, when one or more of these are desired, each shall be so stated in the order.

1.6 The values stated in either inch-pound units or SI units are to be regarded separately as standard. (A combination of values from the two systems may result in nonconformance with the specification.) The inch-pound units shall apply unless the "M" designation of this specification is specified in the order.



Chemical Composition:



Elements 304L(wt%) 316L (wt%)

(C) Carbon, max 0.035 0.035
(Mn) Manganese, max 2.00 2.00
(P) Phosphorus, max 0.040 0.040
(S) Sulfur, max 0.030 0.030
(Si) Silicon, max 0.75 0.75
(Ni) Nickel 8.0 - 13.0 10.0 - 15.0
(Cr) Chromium 18.0 - 20.0 16.0 - 18.0
(Mo) Molybdenum N/A 2.0 - 3.0
(Fe) Iron Bal. Bal.
(Cu) Copper N/A N/A
(N) Nitrogen N/A N/A





Dimensional Tolerences
all dimensions in inches (mm)

Size OD Nominal Wall Outside Diameter Length Wall

1/2" (12.7) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
3/4" (19.1) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
1" (25.4) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
1-1/2" (38.1) 0.065" (1.65)/0.049" (1.25) +/-0.008" (0.20) +1/8" (3.18) - 0 +/-10.0%
2" (50.8) 0.065" (1.65)/0.049" (1.25) +/-0.008" (0.20) +1/8" (3.18) - 0 +/-10.0%
2-1/2" (63.5) 0.065" (1.65) +/-0.010" (0.25) +1/8" (3.18) - 0 +/-10.0%
3" (76.2) 0.065" (1.65) +/-0.010" (0.25) +1/8" (3.18) - 0 +/-10.0%
4" (101.6) 0.083" (2.11) +/-0.015" (0.38) +1/8" (3.18) - 0 +/-10.0%
6" (152.4) 0.083" (2.11) +/-0.030" (0.76) +1" (25.4) - 0 +/-10.0%
6" (152.4) 0.109" (2.77) +/-0.030" (0.76) +1" (25.4) - 0 +/-10.0%
8" (203.2) 0.109" (2.77) +0.061" (1.55)/-0.031" (0.79) +1" (25.4) - 0 +/-10.0%

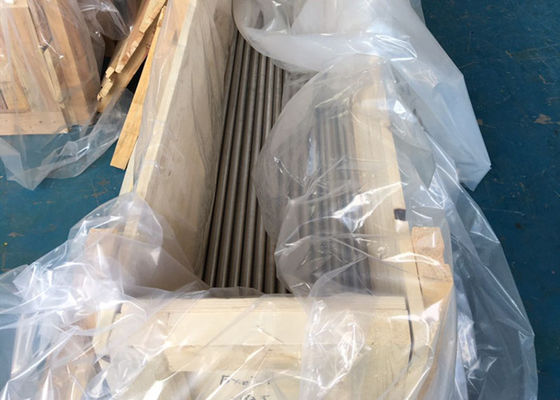

TP304L TP316L Seamless Welded Stainless Steel Pipe / Welding Stainless Pipe ASTM A249  ASME SA249 38.1*1.2 1.5MM 1

Certification

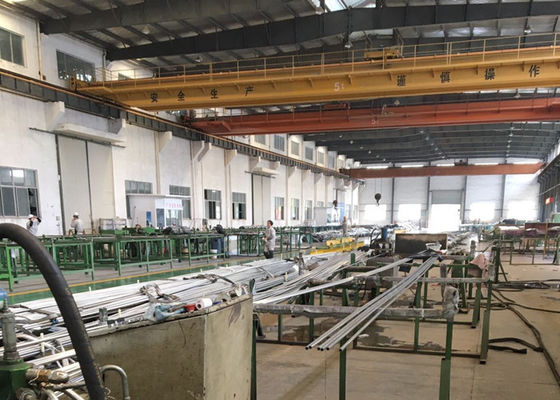

TP304L TP316L Seamless Welded Stainless Steel Pipe / Welding Stainless Pipe ASTM A249  ASME SA249 38.1*1.2 1.5MM 2

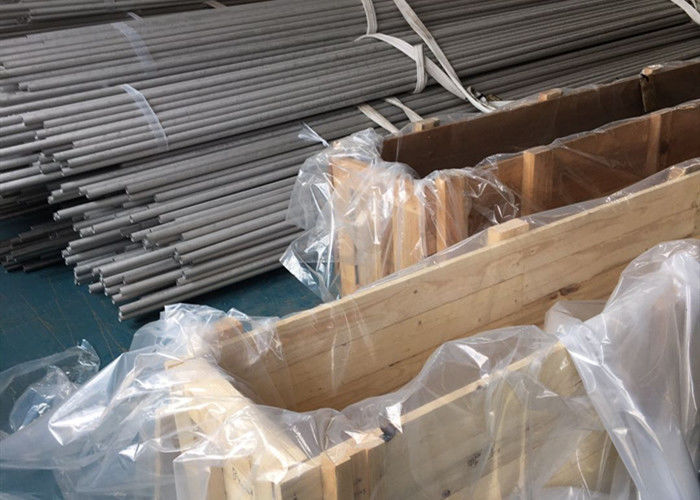

TP304L TP316L Seamless Welded Stainless Steel Pipe / Welding Stainless Pipe ASTM A249  ASME SA249 38.1*1.2 1.5MM 3
