Place of Origin: | China(Mainland) |
Brand Name: | HDT |
Certification: | ASME, TUV, SGS, ABS, PED, ISO9001, Grade A |
Model Number: | TP347 / 347H, 300 Series Stainless Steel |
Minimum Order Quantity: | 5T |
---|---|
Price: | 800 - 9000 USD / ton |

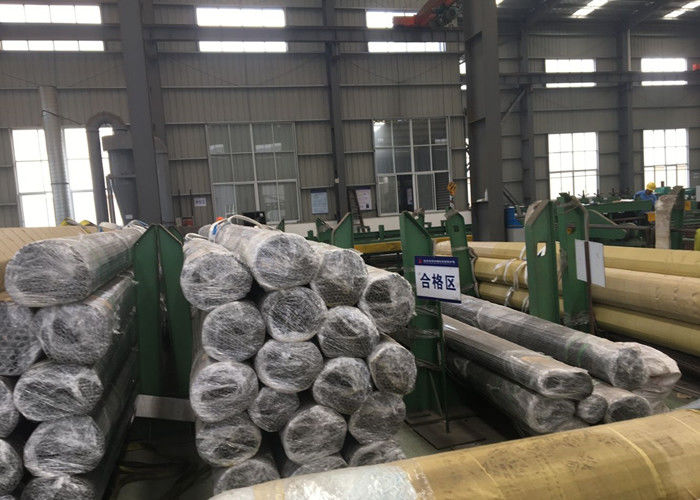

Packaging Details: | seaworthy packing for exporting |
Delivery Time: | 60-75days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | About 10000 ton / month |
Material: | TP304 TP304L TP316 TP316L , 300 Series | Finishing: | Solution Annealed & Pickled |
---|---|---|---|
Application: | Boiler&heat Exchanger, Energy, Petrochemical, Mining, Food, Paper, Gas And Fluid Industry | Shape: | Welded Tube |
OD: | 5.80mm To 2032mm | WT: | 0.25mm To 28mm |
Highlight: | stainless steel welded pipe,duplex stainless steel tube |
Heat Exchanger Stainless Steel Welded Tubing , ASTM A270 / A249 For Papermarking
Hua Dong Energy Technology deals with stainless steel welded pipe and tube already more than 10 years, every
year sell more than 5000 tons of stainless steel pipe and tube. Our client already cover more than 45
countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical,
Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.
Material Grade | TP304, TP304L, TP304H, TP316, TP316L, TP316Ti, TP309S, TP310S, TP321, TP321H, TP347, TP347H, etc |
Outer Diameter | 5.80mm-2032mm (0.23" to 80") |
Wall Thickness | 0.25mm-28mm (0.01" to 1.125") |
Length | Normally fixed length 6m, can as per customer’s requirement |
Standard | ASTM A312; ASTM A269; ASTM A789; ASTM A790 ect. |
Process Method | ERW, EFW etc |
ASTM A249 Standard :
Size OD | Nominal Wall | Outside Diameter | Length | Wall |
1/2" (12.7) | 0.065" (1.65)/0.049" (1.25) | +/-0.005 (0.13) | +1/8" (3.18) - 0 | +/-10.0% |
3/4" (19.1) | 0.065" (1.65)/0.049" (1.25) | +/-0.005 (0.13) | +1/8" (3.18) - 0 | +/-10.0% |
1" (25.4) | 0.065" (1.65)/0.049" (1.25) | +/-0.005 (0.13) | +1/8" (3.18) - 0 | +/-10.0% |
1-1/2" (38.1) | 0.065" (1.65)/0.049" (1.25) | +/-0.008" (0.20) | +1/8" (3.18) - 0 | +/-10.0% |
2" (50.8) | 0.065" (1.65)/0.049" (1.25) | +/-0.008" (0.20) | +1/8" (3.18) - 0 | +/-10.0% |
2-1/2" (63.5) | 0.065" (1.65) | +/-0.010" (0.25) | +1/8" (3.18) - 0 | +/-10.0% |
3" (76.2) | 0.065" (1.65) | +/-0.010" (0.25) | +1/8" (3.18) - 0 | +/-10.0% |
4" (101.6) | 0.083" (2.11) | +/-0.015" (0.38) | +1/8" (3.18) - 0 | +/-10.0% |
6" (152.4) | 0.083" (2.11) | +/-0.030" (0.76) | +1" (25.4) - 0 | +/-10.0% |
6" (152.4) | 0.109" (2.77) | +/-0.030" (0.76) | +1" (25.4) - 0 | +/-10.0% |
8" (203.2) | 0.109" (2.77) | +0.061" (1.55)/-0.031" (0.79) | +1" (25.4) - 0 | +/-10.0% |
Application :
a) For fluid and gas transport
b) Structure and machining

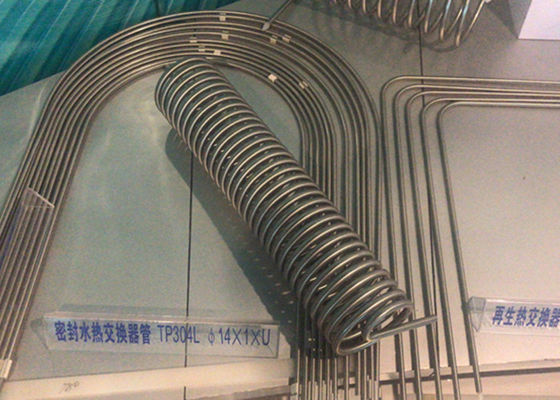

c) Heat exchanger pipes etc
Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG | |||||
SWG | Wall Thickness | SWG | Wall Thickness | ||
0 | 0.324 | 8.23 | 21 | 0.032 | 0.81 |
1 | 0.3 | 7.62 | 22 | 0.028 | 0.71 |
2 | 0.276 | 7.01 | 23 | 0.024 | 0.61 |
3 | 0.252 | 6.4 | 24 | 0.022 | 0.56 |
4 | 0.232 | 5.89 | 25 | 0.02 | 0.51 |
5 | 0.212 | 5.38 | 26 | 0.018 | 0.46 |
6 | 0.192 | 4.88 | 27 | 0.0164 | 0.42 |
7 | 0.176 | 4.47 | 28 | 0.0148 | 0.38 |
8 | 0.16 | 4.06 | 29 | 0.0136 | 0.35 |
9 | 0.144 | 3.66 | 30 | 0.0124 | 0.31 |
10 | 0.128 | 3.25 | 31 | 0.0116 | 0.29 |
11 | 0.116 | 2.95 | 32 | 0.0108 | 0.27 |
12 | 0.104 | 2.64 | 33 | 0.01 | 0.25 |
13 | 0.092 | 2.34 | 34 | 0.0092 | 0.23 |
14 | 0.08 | 2.03 | 35 | 0.0084 | 0.21 |
15 | 0.072 | 1.83 | 36 | 0.0076 | 0.19 |
16 | 0.064 | 1.63 | 37 | 0.0068 | 0.17 |
17 | 0.056 | 1.42 | 38 | 0.006 | 0.15 |
18 | 0.048 | 1.22 | 39 | 0.0052 | 0.13 |
19 | 0.04 | 1.02 | 40 | 0.0048 | 0.12 |
20 | 0.036 | 0.91 | |
