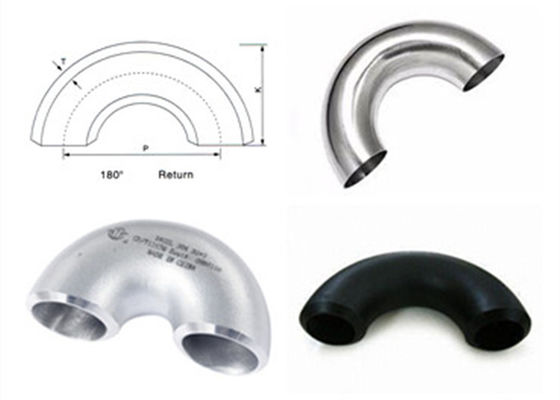

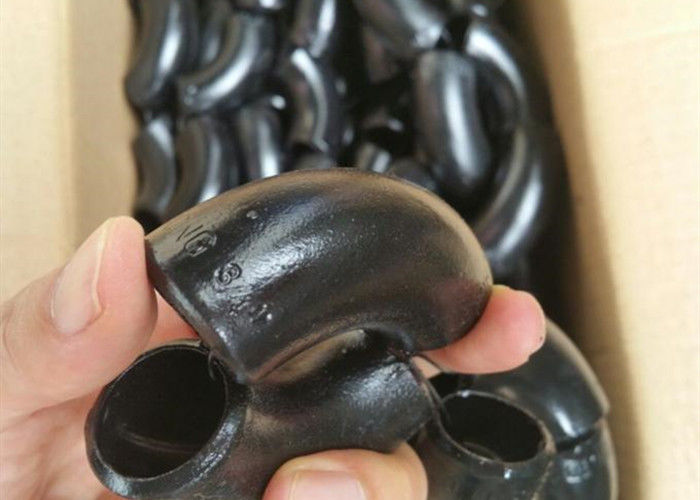

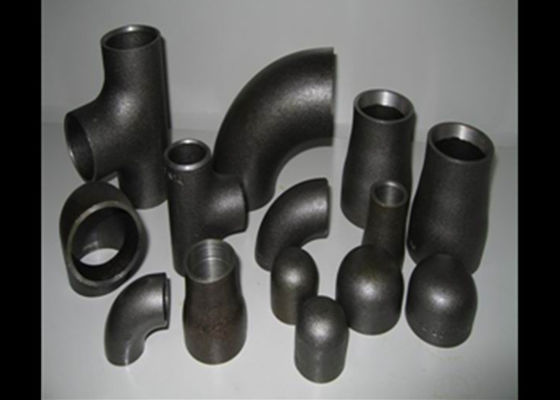

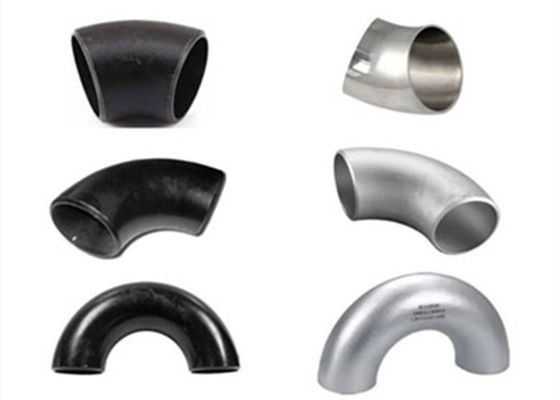

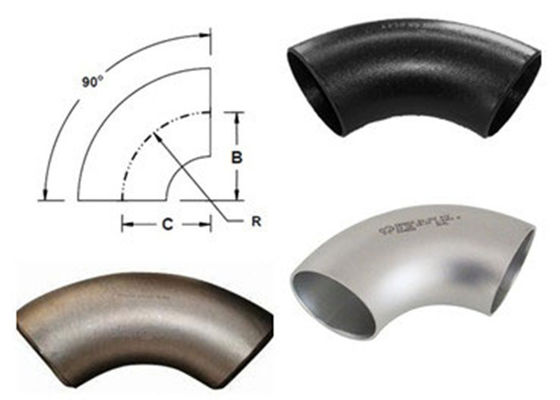

Erw Welded Elbow Steel Boiler Tubes Sch Std Sch80 Reduce Seamless Type
Product Details
| Material: | WPB , WPC , WPHY 42, WPHY 46, WPHY52, WPHY 56, WPHY 60 , WPHY 65 , WPHY 70 , WPHY 80 | Application: | Boiler, Energy, Petrochemical, Mining, Food, Paper, Gas And Fluid Industry |
|---|---|---|---|
| OD: | 1/4" To 100" Sch10s To XXS | Surface: | Black Or Other Color Coated |
| Highlight |
duplex steel elbow,carbon steel pipe elbow |
||
Product Description
SCH STD SCH80 Steel Fittings REDUCE ELBOW Seamless/ERW/Welded
Products information:
Size : 1/8"NB TO 100"NB
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated /Forged
Form : Eccentric Reducer, Concentric Reducer
Materials
Stainless Steel Reducer - SS Reducer
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Reducer - CS Reducer
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Reducer - LTCS Reducer
ASTM A420 WPL3 / A420WPL6
Alloy Steel Reducer - AS Reducer
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Reducer
ASTM A 815 UNS NO S 31803 , S 32205.
Nickel Alloy Reducer
Standard
- ASTM / ASME SB 336.
- UNS 10276 (HASTELLOY C 276 Reducer)
- UNS 2200 (NICKEL 200 Reducer),
- UNS 2201 (NICKEL 201 Reducer),
- UNS 4400 (MONEL 400 Reducer),
- UNS 8020 (ALLOY 20 Reducer),
- UNS 8825 (INCONEL 825 Reducer),
- UNS 6600 (INCONEL 600 Reducer),
- UNS 6601 (INCONEL 601 Reducer),
- UNS 6625 (INCONEL 625 Reducer),
Value Added Services
- Hot Dip Galvanizing
- Epoxy Coating
Test Certificate
Mill Test Certificate as per EN 10204 / 3.1B
Carbon Steel Pipe Fitting - Reducing Elbows
ASME/ANSI B16.9
Standard
| Nominal Pipe Size | Center To End | Weight In Pounds |
| 2 X 1 | 3 | 1.2 |
| 2 X 1 1/4 | 3 | 1.3 |
| 2 X 1 1/2 | 3 | 1.4 |
| 2 1/2 X 1 1/4 | 3.75 | 2.5 |
| 2 1/2 X 1 1/2 | 3.75 | 2.6 |
| 2 1/2 X 2 | 3.75 | 2.8 |
| 3 X 1 1/2 | 4.5 | 3.3 |
| 3 X 2 | 4.5 | 3.6 |
| 3 X 2 1/2 | 4.5 | 4.2 |
| 3 1/2 X 2 | 5.25 | 4.5 |
| 3 1/2 X 2 1/2 | 5.25 | 5.5 |
| 3 1/2 X 3 | 5.25 | 6 |
| 4 X 2 | 6 | 6 |
| 4 X 2 1/2 | 6 | 6.8 |
| 4 X 3 | 6 | 7.7 |
| 4 X 3 1/2 | 6 | 8.4 |
| 5 X 2 1/2 | 7.5 | 10.7 |
| 5 X 3 | 7.5 | 11.8 |
| 5 X 3 1/2 | 7.5 | 12.6 |
| 5 X 4 | 7.5 | 13.4 |
| 6 X 3 | 9 | 16.8 |
| 6 X 3 1/2 | 9 | 17.8 |
| 6 X 4 | 9 | 18.9 |
| 6 X 5 | 9 | 21 |
| 8 X 4 | 12 | 33.1 |
| 8 X 5 | 12 | 36.2 |
| 8 X 6 | 12 | 39.7 |
| 10 X 5 | 15 | 58.5 |
| 10 X 6 | 15 | 63.2 |
| 10 X 8 | 15 | 73 |
| 12 X 6 | 18 | 86.5 |
| 12 X 8 | 18 | 98.4 |
| 12 X 10 | 18 | 113 |
Standard
| Nominal Pipe Size | Center To End | Weight In Pounds |
| 2 X 1 | 3 | 1.7 |
| 2 X 1 1/4 | 3 | 1.8 |
| 2 X 1 1/2 | 3 | 1.9 |
| 2 1/2 X 1 1/4 | 3.75 | 2.9 |
| 2 1/2 X 1 1/2 | 3.75 | 3 |
| 2 1/2 X 2 | 3.75 | 3.4 |
| 3 X 1 1/2 | 4.5 | 4.5 |
| 3 X 2 | 4.5 | 4.9 |
| 3 X 2 1/2 | 4.5 | 5.7 |
| 3 1/2 X 2 | 5.25 | 6.4 |
| 3 1/2 X 2 1/2 | 5.25 | 7.3 |
| 3 1/2 X 3 | 5.25 | 8.2 |
| 4 X 2 | 6 | 8.4 |
| 4 X 2 1/2 | 6 | 9.4 |
| 4 X 3 | 6 | 10.5 |
| 4 X 3 1/2 | 6 | 11.4 |
| 5 X 2 1/2 | 7.5 | 15.1 |
| 5 X 3 | 7.5 | 16.5 |
| 5 X 3 1/2 | 7.5 | 17.4 |
| 5 X 4 | 7.5 | 18.8 |
| 6 X 3 | 9 | 24.9 |
| 6 X 3 1/2 | 9 | 26.3 |
| 6 X 4 | 9 | 27.9 |
| 6 X 5 | 9 | 31.4 |
| 8 X 4 | 12 | 49.5 |
| 8 X 5 | 12 | 54.3 |
| 8 X 6 | 12 | 60.8 |
| 10 X 5 | 15 | 78.5 |
| 10 X 6 | 15 | 86.5 |
| 10 X 8 | 15 | 102 |
| 12 X 6 | 18 | 114 |
| 12 X 8 | 18 | 132 |
| 12 X 10 | 18 | 148 |
Certification
Product Highlights
SCH STD SCH80 Steel Fittings REDUCE ELBOW Seamless/ERW/Welded Products information: Size : 1/8"NB TO 100"NB Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS Type : Seamless / ERW / Welded / Fabricated /Forged Form : Eccentric Reducer, Concentric Reducer ...
