Boiler Galvanized Carbon Steel Pipe A213T11 A213T12 A213T22 A192 A106 A53
Product Details
| Standard: | API/CE / ISO /TUV | Product Name: | Carbon Steel Pipe Boiler Tube For Heat Exchanger |
|---|---|---|---|
| Application: | Industrial Boiler | Surface Treatment: | Dry Varnish Coated |
| Highlight |
A213T11 Galvanized Carbon Steel Pipe,A213T11 Boiler Carbon Steel Pipe,A213T12 Carbon Steel Pipe |
||
Product Description
Galvanized Coated Carbon Steel Boiler Tubes A213T11 A213T12 A213T22 A192 A106 A53
A213T11 A213T12 A213T22 A192 A106 A53 carbon steel boiler pipe
Description:
Carbon steel pipe can be divided into seamless steel pipe, straight steel pipe, spiral steel pipe, high frequency welded steel pipe and so on.Carbon steel seamless steel pipe is a kind of long steel.
The pipe has a hollow section and is used in a large number of pipelines for fluid transportation, such as those for oil, natural gas, gas, water and some solid materials.
Generally, the outer diameter of hot-rolled seamless pipe is greater than 32mm, the wall thickness is 2.5-75mm, the outer diameter of cold-rolled seamless pipe can be up to 6mm, the wall thickness can be up to 0.25mm, and the outer diameter of thin-walled pipe can be up to 5mm, the wall thickness is less than 0.25mm, and the precision of cold rolling is higher than that of hot rolling.
General carbon steel pipe: it is made of 16Mn, 5MnV and other low-alloy structural steels, such as 10, 20, 30, 35, 45, 45 etc.Seamless pipes made of mild steel such as 10 and 20 are mainly used for fluid transportation pipes.The seamless pipe made of medium carbon steel such as 45 and 40Cr is used to make mechanical parts, such as mechanical parts of cars and tractors.Carbon steel tubes are generally used for strength and flattening tests.The hot-rolled steel pipe is delivered in the hot-rolled or heat-treated condition;Cold rolling is delivered as heat treatment.
Specification:
Standard:
ASTM A 106M, ASTM A 192M, ASTM A213M, GB/T 5310, JIS G3461
Brand:
A213T11, A213T12, A213T22, A192, A106, A53, etc
Chemical
| Grade | C | Si | Mn | S | P | Cr | Mo | |
| Standard | size | max | ||||||
|
ASTM A 192M ASME SA-192M |
A192 SA-192 |
0.06 ~ 0.18 |
≤0.25 |
0.27 ~ 0.63 |
0.020 | 0.025 | ||
|
ASTM A106M ASME SA-106 |
A 106B SA-106B |
≤0.30 | ≥0.10 |
0.29 ~ 1.06 |
0.020 | 0.025 | ||
|
A 106C SA-106C |
≤0.35 | ≥0.10 |
0.29 ~ 1.06 |
0.020 | 0.025 | |||
|
ASTM A213M ASME SA-213M |
A213 T11 SA-213 T11 |
0.05 ~ 0.15 |
0.50 ~ 1.00 |
0.30 ~ 0.60 |
0.020 | 0.025 |
1.00 ~ 1.50 |
0.44 ~ 0.65 |
|
A213 T12 SA-213 T12 |
≤0.15 | ≤0.50 |
0.30 ~ 0.61 |
0.020 | 0.025 |
0.80 ~ 1.25 |
0.44 ~ 0.65 |
|
| JIS G3461 | STB 340 | ≤0.18 | ≤0.35 |
0.30 ~ 0.60 |
0.020 | 0.025 | ||
| GB 5310 | 20G |
0.17 ~ 0.23 |
0.17 ~ 0.37 |
0.35 ~ 0.65 |
0.015 | 0.025 | ||
| Standard | Grade | Tensile strength (MPa) | yield strength | elongation | Impact energy | Hardness |
|
ASTM A106M ASME SA-106 |
A 106B SA-106B |
≥415 | ≥240 | ≥30 | ||
|
A 106C SA-106C |
≥485 | ≥275 | ≥30 | |||
|
ASTM A 192M ASME SA-192M |
A192 SA-192 |
≥325 | ≥180 | ≥35 | 77HRB(137HBW) | |
|
ASTM A213M ASME SA-213M |
A213 T11 SA-213 T11 |
≥415 | ≥205 | 85HRB(163)HBW | ||
|
A213 T12 SA-213 T12 |
≥415 | ≥205 | 85HRB(163)HBW | |||
| JIS G3461 | STB 340 | ≥340 | ≥175 | ≥35 | ||
| GB 5310 | 20G | 410~550 | ≥245 | ≥22 | ≥27 |

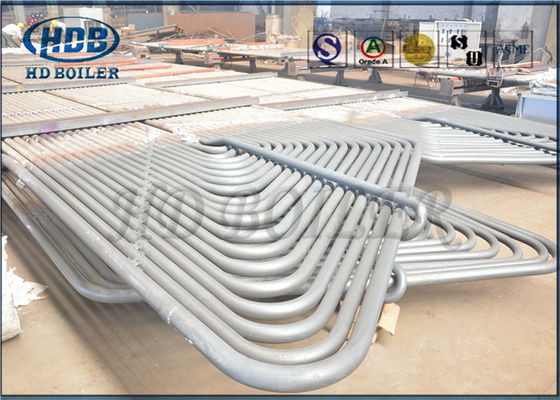

Product Show:
Applications:
General boiler tube is mainly used to manufacture water wall tube, boiling water tube, superheated steam tube, locomotive boiler superheated steam tube, large, small smoke tube and arch brick tube.
Boiler seamless steel tube is mainly used to manufacture high pressure and ultra-high pressure boiler superheater tube, reheater tube, pipe, main steam pipe.
