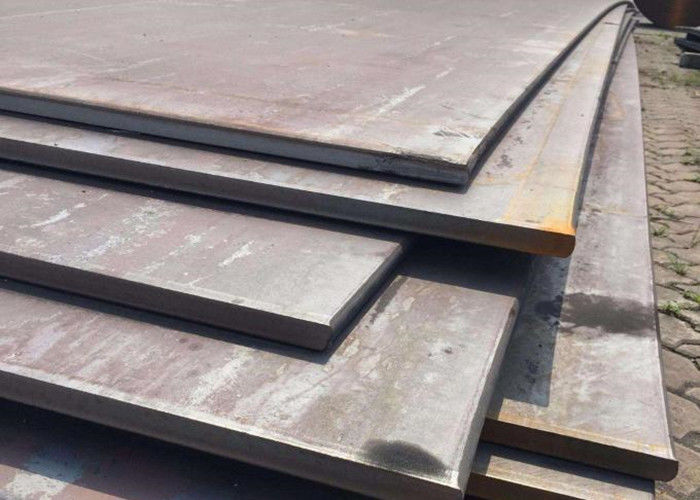

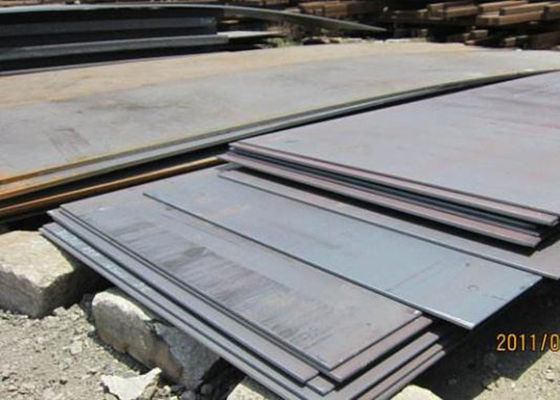

Hot Rolled Steel Plate SAE 1045 4 - 120mm CK 45 For General Machinery Parts
Product Details
| Surface: | Hot Rolled Carbon Steel Plate | Material: | SAE 1045 |
|---|---|---|---|
| Thickness: | 5mm-600mm | Width: | 200mm-2500mm |
| Bundle Weight: | 3MT-6MT | Length: | 100mm To 12000mm |
| Highlight |
plate astm a36,cold rolled plate |
||
Product Description
Hot rolled SAE 1045 4-120mm CK 45 carben steel plate for general machinery parts, mining, refinery
Sizes
Thickness: 5-600mm
Width:200-2500mm
Length: 100-12000mm
Application
- Carbon steel AISI 1045 Used for making die-board,general machinery parts.
- Component parts for vehicles, shafts, bushings, crankshafts, connecting rods and parts for the machine building industry and steel for axes, knives, hammers etc.
Equivalent Grade
| GB | DIN | NF | SS | JIS | BS | AISI | ISO |
| 45# | 1.0503 | C45 | 1650 | S45C | IC45/080A47 | 1045 | C45E4 |
Chemical Analysis
| NO. | C | Mn | Si | Cr | Cu | Ni | P | S | ||||||||
| Aisi 1045 | 0.43~0.50 | 0.6~0.9 | 0.10~0.60 | ≤0.40 | ≤ 0.50 | |||||||||||
| DIN1.0503 | 0.42~0.48 | 0.6~0.9 | 0.15~0.35 | ≤0.15 | ≤0.3 | ≤0.2 | ||||||||||
| JIS S45C | 0.42~0.50 | 0.5~0.8 | ≤0.40 | ≤0.40 | ≤ 0.4 | |||||||||||
| GB45 | 0.42~0.50 | 0.5~0.8 | 0.17~0.37 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.035 | ≤0.035 | ||||||||
Mechanical properties
| Annealing | Forging | Tempering and Hardening | Normalization | |||||||||||||
|
Subcritical annealing: 650~700 Isothermal annealing: 820~860 |
1100~850 |
Tempering: 550~660 Hardening : 820~860 water |
840~880 | |||||||||||||
Heat Treatment
Soft annealing: heat to 550-650°C, cool slowly.
Hardness after annealing: Max. 269HB
Hardening: 820 - 870 °C
Normalizing temperature: 840-870°C
Product Highlights
Hot rolled SAE 1045 4-120mm CK 45 carben steel plate for general machinery parts, mining, refinery Sizes Thickness: 5-600mm Width:200-2500mm Length: 100-12000mm Application - Carbon steel AISI 1045 Used for making die-board,general machinery parts. - Component parts for vehicles, shafts, bushings, ...
