Zhangjiagang Hua Dong Energy Technology Co., Ltd.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | HDT |
| Certification: | SGS ISO |
| Minimum Order Quantity: | 5T |
|---|---|
| Price: | 800 - 9000 USD / ton |
| Packaging Details: | seaworthy packing for exporting |
| Delivery Time: | 60-75days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | About 10000 ton / month |
| Product Name: | Alloy Steel Plate | Grade: | Q345D S355J2 |
|---|---|---|---|
| Length: | 2000-6000mm | Width: | 1000-2500mm |
| Highlight: | pressure vessel plate,boiler plates |
||

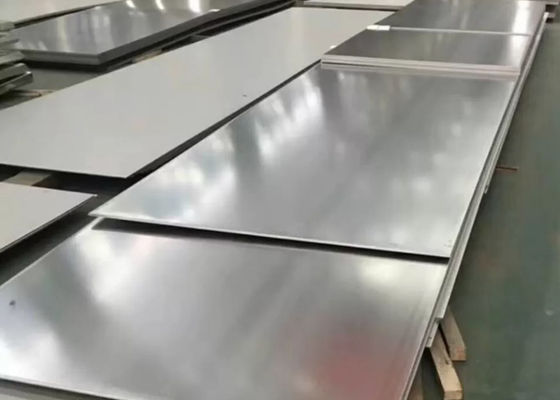

Hot Rolled Alloy Steel Plate Grade Ship Steel Plate
Firstly we suggest steel grade equivalent S355J2+N is ship steel plate ASTM A131 GR.DH36 (minimum yield strength 355 MPa, Tensile 490 to 620 Mpa, heat treatment under normalized or TMCP, charpy V-notch impacting test @ -20 ℃).Then ASTM A131 Gr.EH36 (minimum yield strength 355 MPa, Tensile 490 to 620 Mpa, heat treatment under normalized or TMCP, charpy V-notch impacting test @ -40 ℃) is also ok and even better than S355J2+N.
The same techincals as A131 GR.DH36 and EH36,ABS Grade DH36 and ABS Grade EH36 are both ok for replacing of S355J2+N.
Second we can suggest you choose alloy structural steel ASTM A572Gr50 (minimum yield strength 345 MPa, Tensile above 450 MPa).Of course adding techincals Normalized heat treatment and Charpy V-notch impacting test -20 centigrade for A572Gr50 when ordered.
Besides,DIN 17100 St52-3 N (minimum yield strength 345 MPa, Tensile above 490-630 MPa) is also one low alloy steel. GB/T1591 Q345D (minimum yield strength 345 MPa,Tensile above 470-630 MPa,D meas done Charpy V-notch impacting at minus 20 centigrade)
The table below show the mechanical properties of grade S355J2
|
Minimum yield strength Reh
MPa |
Tensile strength Rm
MPa |
Minimum elongation - A
Lo = 5,65 * √So (%) |
Notch impact test
|
|||||||||||
| Steel grade |
Nominal thickness
mm |
Nominal thickness
mm |
Nominal thickness
mm |
Temperature
|
Min. absorbed energy
|
|||||||||
|
≤16
|
>16
≤40 |
>40
≤63 |
>63
≤80 |
>80
≤100 |
>100
≤125 |
>3
≤100 |
>100
≤125 |
>3
≤40 |
>40
≤63 |
>63
≤100 |
>100
≤125 |
°C
|
J
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
| S355J2 |
355
|
345
|
335
|
325 | 315 |
295
|
470-630
|
450-600
|
22
|
21
|
20
|
18
|
-20
|
27
|
The table below show the chemical composition of grade S355J2
|
Ladle analysis
|
|||||||||||||
| Steel grade |
C
max. % |
Mn
max. % |
Si
max. % |
P
max. % |
S
max. % |
N
max. % |
Cu
max. % |
Other
max. % |
CEV
max. % |
||||
|
Nominal thickness
mm |
Nominal thickness
mm |
||||||||||||
|
≤16
|
>16
≤40 |
>40
|
|
|
|
|
|
|
|
≤30
|
>30
≤40 |
>40
≤125 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| S355J2 |
0,20
|
0,20
|
0,22
|
1,60
|
0,55
|
0,030
|
0,030
|
-
|
0,55
|
-
|
0,45
|
0,47
|
0,47
|
S355J2 Steel Grade Equivalent Table
|
USA
|
Germany
DIN,WNr |
Japan
JIS |
European old
EN |
China
GB |
Sweden
SS |
|
|
|
|
|
|
|
|
A656
|
St52-3N
|
SS490YA
|
Fe510D2 S355J2G4 |
Q345D
|
2134-01
|
