High Pressure Annealed Pipe Seamless DIN2391C ST52.4 NBK Phosphating Cold Drawn DNV GL
Product Details
| Steel Grade: | ST37.4, ST52.4 | Application: | Heat Exchanger Tube, Boiler Tube |
|---|---|---|---|
| Standard: | DIN 2391C | Surface: | NBK+Phosphating |
| 3rd Party Inspection: | BV,SGS | OD: | 4-600mm |
| Highlight |
bright annealed tube,pickling stainless steel pipe |
||
Product Description
High Pressure Seamless Boiler tube DIN2391C ST52.4 NBK + Phosphating Precision Cold Drawn DNV.GL Approved
DIN2391 Precision Cold Drawn Seamless Pipes and Tubes, Gr St35 St45 St52 St37.4, Cold Finished Seamless Pipe use for Hydraulic and Pneumatic.
Delivery Status: NBK (+N) BKW (+LC) GBK (+A) BKS (+SR) BK (+C) OD x WT = 4~120 x 0.5~15mm
DIN2391 St52.4+N Phosphated Hydraulic Tube
atmosphere.
| Steel grade |
Chemical composition,
as a percentage by mass
|
|||||
| Symbol |
Material
number
|
C max. | Si max. | Mn |
P
max.
|
S
max.
|
| St 30 Si | 1.0211 | 0.10 | 0.30 | <=0.55 | 0.025 | 0.025 |
| St 30 Al | 1.0212 | 0.10 | 0.05 | <=0.55 | 0.025 | 0.025 |
| St 35 | 1.0308 | 0.17 | 0.35 | <=0.40 | 0.025 | 0.025 |
| St 45 | 1.0408 | 0.21 | 0.35 | <=0.40 | 0.025 | 0.025 |
| St 52 | 1.0580 | 0.22 | 0.55 | <=1.60 | 0.025 | 0.025 |
|
The following alloying elements may be added:
Nb: <=0,03%; Ti: <=0,03%; V: <=0,05%; Nb + Ti + V: <=0,05%.
|
||||||
| Steel grade | Chemical Composition(%): | ||||||
| Steel name | Steel number | C max | Si max | Mn | P max | S max | Al min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 |
0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
Certification
Product Highlights
High Pressure Seamless Boiler tube DIN2391C ST52.4 NBK + Phosphating Precision Cold Drawn DNV.GL Approved DIN2391 Precision Cold Drawn Seamless Pipes and Tubes, Gr St35 St45 St52 St37.4, Cold Finished Seamless Pipe use for Hydraulic and Pneumatic. Delivery Status: NBK (+N) BKW (+LC) GBK (+A) BKS (...
High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil
High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil Boiler economizer Boiler Economizer is the energy improving device that helps to reduce the cost of operation by saving the fuel. The economizer in Boiler tends to make the system more energy efficient. In boilers, economizers are generally designed to exchange heat with the fluid, generally water. The exhaust from the boilers is generally in the temperature range of 200°C – 250°C, so there
High Frequency Welding Boiler Spiral Fin Tube For Economizer Heat Transfer
High Frequency Welding Boiler Spiral Fin Tube For Economizer Heat Transfer Boiler economizer Boiler Economizer is the energy improving device that helps to reduce the cost of operation by saving the fuel. The economizer in Boiler tends to make the system more energy efficient. In boilers, economizers are generally designed to exchange heat with the fluid, generally water. The exhaust from the boilers is generally in the temperature range of 200°C – 250°C, so there are a huge
Heat Exchanger H Type Boiler Parts Tube For Utility Power Station Plant
High Efficient Heat Exchang H Type High Temperature Resistance Boiler Parts For Utility/Power Station Plant Product Introduce H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface.H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H

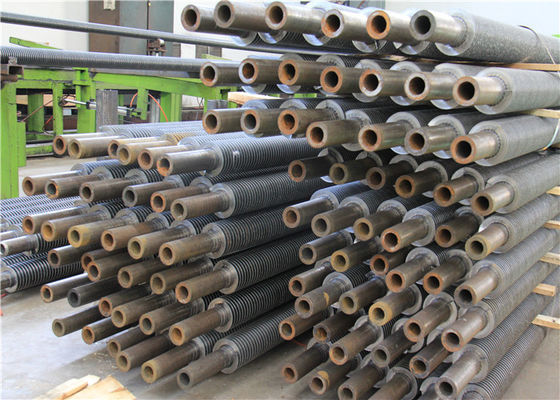

Extension Heating Surface Boiler Fin Tube For Industrial Power Plant Boiler
