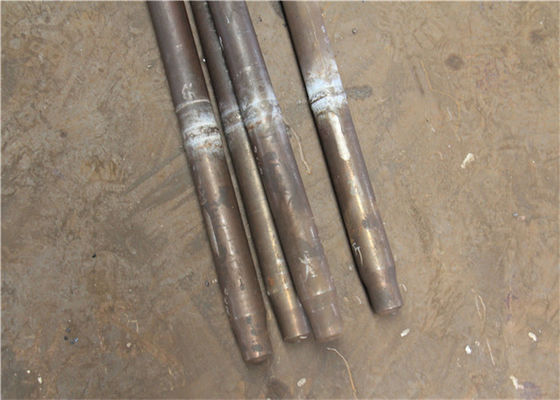

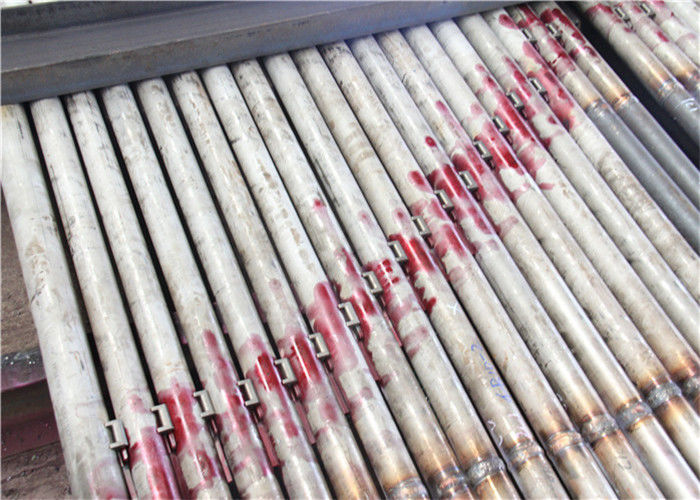

Annealed Alloy Steel Seamless Pipe For Boiler Superheater ASTM A213 ASME SA213 T1 T11 T12
Product Details
| Steel Grade: | T1, T11, T12 | Application: | Boiler, Heat Exchangers, Superheater&reheater |
|---|---|---|---|
| Standard: | ASTM A213 / ASME SA213 | Surface: | Annealed |
| Third Party Inspection: | BV,SGS | Size: | 3/4" (19.05), 1"(25.4) , 1-1/4"(31.75), 1-1/2"(38.1), 2" (50.8), 2-1/2"(63.5) , 3" (76.2) |
| Highlight |
bright annealed tube,annealed copper pipe |
||
Product Description
Annealed,Alloy Steel Seamless pipe for Boiler,Superheater,ASTM A213/ASME SA213 T1 T11 T12
Hua Dong Energy Technology can supply huge qty of Cr-Mo Alloy seamless pipe and tube , and export more than 30 countries . Our alloy seamless tube be width used in boiler and heating.

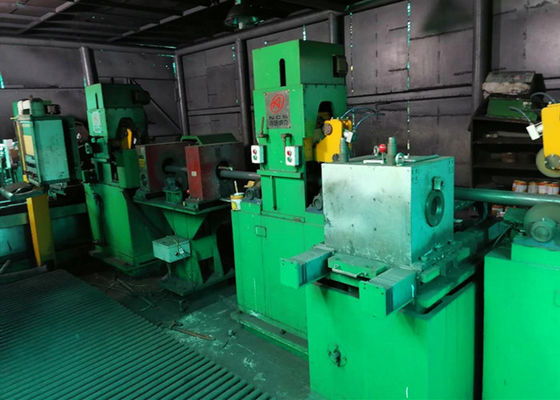

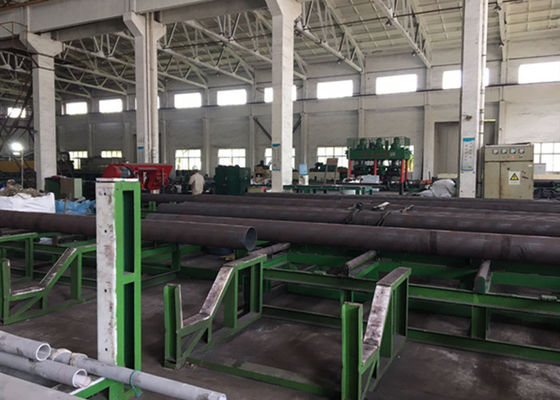

Hua Dong Energy Technology controls the entire manufacturing process from raw material to finished products, Inspection points are localed in the manufacturing process to ensure all products meet all requirements. In such quality control system, faults are detected at the earliest possible stage of the production process in order to eliminate the risk of rejection at final inspection. We have made continuous efforts to reduce the problem throughout total quality assurance system including traceability control, HUA DONG not only inspects by ourself , also through TPI like BV, SGS, DNV, ABS, MOODY, IBR, so that today the quality of our productsis clearly recognized by our client.
| Carbon | Chromiun | Low Temperature | Stainless Steel | Duplex | Copper& Bronze | Titanium | Ni-Alloy | ||
| SA178-A | SA213-T1 | SA333-Gr.1 | SA213 | TP316L | A789-S31803 | SB111-C70600 | SB338-GR.1 | SB163 | NO2200 |
| SA178-C | SA213-T11 | SA333-Gr.3 | SA249 | TP316H | A789-S32205 | SB111-C71500 | SB338-GR.2 | SB167 | NO2201 |
| SA179 | SA213-T12 | SA333-Gr.6 | SA268 | TP316Ti | A789-S32750 | SB111-C71640 | SB338-GR.5 | SB444 | NO8020 |
| SA192 | SA213-T22 | SA333-Gr.7 | SA269 | TP316LN | A789-S32760 | SB111-C68700 | SB338-GR.7 | SB514 | NO6022 |
| SA209-T1 | SA213-T5 | SA333-Gr.8 | SA376 | TP321 | A789-S32707 | SB111-C44300 | SB338-GR.9 | SB619 | N10276 |
| SA209-T1a | SA213-T9 | SA334-Gr.1 | TP304 | TP321H | A789-S32304 | SB338-GR.12 | SB622 | NO4400 | |
| SA209-T1b | SA213-T91 | SA334-Gr.3 | TP304L | TP347 | A789-S31500 | SB626 | NO6600 | ||
| SA210-A1 | SA334-Gr.6 | TP304H | TP347H | S31254 | SB674 | NO6601 | |||
| SA210-C | SA334-Gr.7 | TP304N | TP405 | 254MA | SB677 | NO6625 | |||
| SA214 | SA334-Gr.8 | TP310H | TP409 | 17-4PH | SB704 | NO690 | |||
| SA513 MT 1010 | TP310S | TP410 | 17-7PH | SB705 | NO8800 | ||||
| SA513 MT 1015 | TP309S | TP430 | 15-7PH | N1001 | NO8810 | ||||
| SA513 MT 1020 | TP317 | TP439 | N10665 | NO8811 | |||||
| TP317L | TP444 | N10675 | NO8825 | ||||||
| TP348 | TP446 | TP904L | |||||||
| TP347HFG | |||||||||
| Pipe Sizes for Heat Exchangers & Condensers & Boiler | |||||||||
| Outside Diameter | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| Wall Thickness mm | |||||||||
| 0.508 | 0.71 | 0.89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||
| mm | inch | Weight kg/m | |||||||
| 6.35 | 1/4 | 0.081 | 0.109 | 0.133 | 0.174 | 0.212 | |||
| 9.53 | 3/8 | 0.126 | 0.157 | 0.193 | 0.257 | 0.356 | 0.429 | ||
| 12.7 | 1/2 | 0.214 | 0.263 | 0.356 | 0.457 | 0.612 | 0.754 | ||
| 15.88 | 5/8 | 0.271 | 0.334 | 0.455 | 0.588 | 0.796 | 0.995 | ||
| 19.05 | 3/4 | 0.327 | 0.405 | 0.553 | 0.729 | 0.895 | 1.236 | ||
| 25.4 | 1 | 0.44 | 0.546 | 0.75 | 0.981 | 1.234 | 1.574 | 2.05 | |
| 31.75 | 1 1/4 | 0.554 | 0.688 | 0.947 | 1.244 | 1.574 | 2.014 | 2.641 | |
| 38.1 | 1 1/2 | 0.667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||
ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Chemical Composition and Mechanical Properties
| Grade | Chemical Composition% | ||||||||
| C | Si | Mn | P, S Max | Cr | Mo | Ni Max | V | Al Max | |
| T2 | 0.10~0.20 | 0.10~0.30 | 0.30~0.61 | 0.025 | 0.50~0.81 | 0.44~0.65 | – | – | – |
| T11 | 0.05~0.15 | 0.50~1.00 | 0.30~0.60 | 0.025 | 1.00~1.50 | 0.44~0.65 | – | – | – |
| T12 | 0.05~0.15 | Max 0.5 | 0.30~0.61 | 0.025 | 0.80~1.25 | 0.44~0.65 | – | – | – |
| T22 | 0.05~0.15 | Max 0.5 | 0.30~0.60 | 0.025 | 1.90~2.60 | 0.87~1.13 | – | – | – |
| T91 | 0.07~0.14 | 0.20~0.50 | 0.30~0.60 | 0.02 | 8.0~9.5 | 0.85~1.05 | 0.4 | 0.18~0.25 | 0.015 |
| T92 | 0.07~0.13 | Max 0.5 | 0.30~0.60 | 0.02 | 8.5~9.5 | 0.30~0.60 | 0.4 | 0.15~0.25 | 0.015 |
| Grade | Chemical Composition% | Mechanical Properties | |||||||
| W | B | Nb | N | T. S | Y. P | Elongation | Hardness | ||
| T2 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) | |
| T11 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) | |
| T12 | – | – | – | – | ≥ 415MPa | ≥ 220MPa | ≥ 30% | 163HBW(85HRB) | |
| T22 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) | |
| T91 | – | – | 0.06~0.10 | 0.03~0.07 | ≥ 585MPa | ≥ 415MPa | ≥ 20% | 250HBW(25HRB) | |
| T92 | 1.50~2.00 | 0.001~0.006 | 0.04~0.09 | 0.03~0.07 | ≥ 620MPa | ≥ 440MPa | ≥ 20% | 250HBW(25HRB) | |
ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Tolerance
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
- SA213 T11 Alloy Steel Pipe uses in Petrochemical Industry
- SA213 T11 Alloy Steel Pipe uses in Chemical Industry
- SA213 T11 Alloy Steel Pipe uses in Nuclear Power Plant Industry
- SA213 T11 Alloy Steel Pipe uses in Oil and Gas Industry
- SA213 T11 Alloy Steel Pipe uses in Research & Development
- SA213 T11 Alloy Steel Pipe uses in Mega Projects & Defense & Development Industries
- SA213 T11 Alloy Steel Pipe uses in Pulp & Paper Indusry
