quality High Frequency Welded 430mm Width Spiral Fin Tube factory

High Frequency Welded 430mm Width Spiral Fin Tube

Brand Name: HDT

Place of Origin: China

Minimum Order Quantity: 5 tons

u bend tube

Product Details

Product Name:

Spiral Fin Tube

Material Of Base Tube:

Carbon Steel

Material Of Fin:

Carbon Steel

Connection Type:

Welding

Highlight

welded spiral fin tube

430mm width spiral fin tube

high frequency spiral fin tube

Product Description

High Frequency Welded Stainless Steel Spiral Fin Tubes Carbon Steel Spiral Finned Tubes

Description of Spiral Finned Tubes:
The spiral fin steel pipes currently used are mostly wound, high frequency welded and brazed spiral fin steel pipes.

The advantages of spiral fin steel pipes are as follows:
1. Long service life, is more than 20 years;
2. The surface of the fin is smooth, and it is not easy to produce ash accumulation, ash blocking and slagging.
3. It has good density, yield strength, tensile strength and wear resistance of metal structure.
4. The welding quality is high, so that it is not easy to cause unstable heat transfer performance because of fin loosening and falling off.

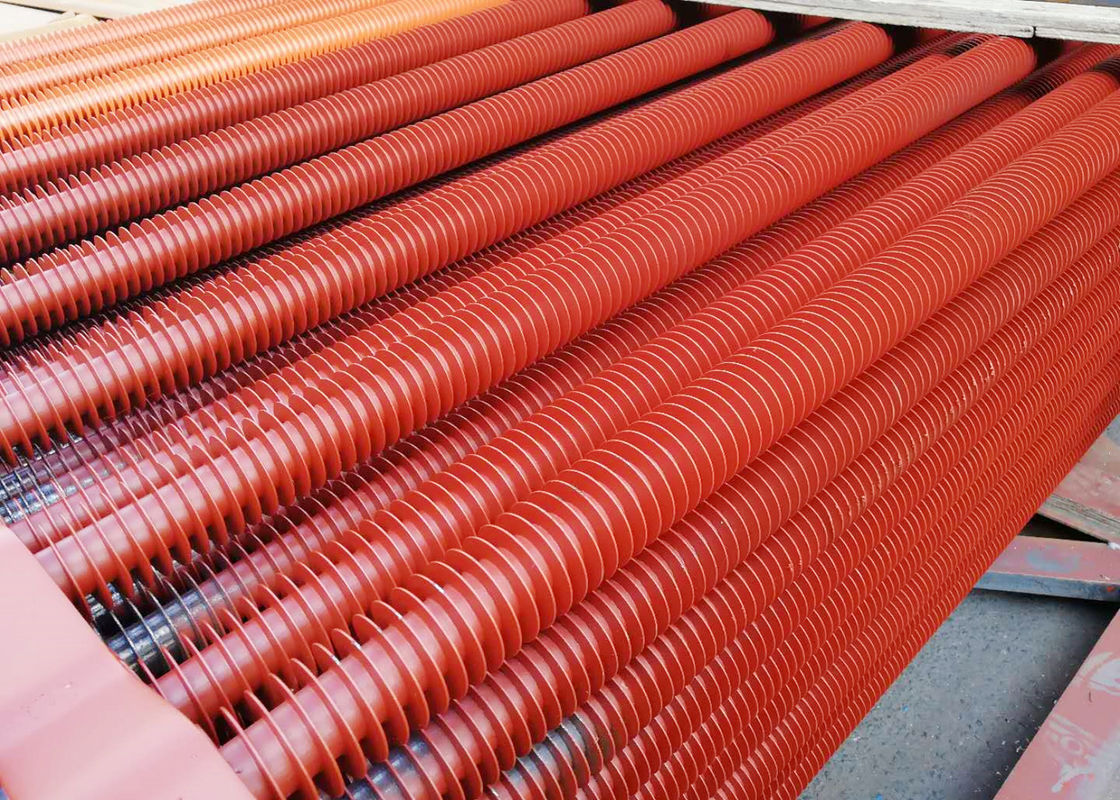

High Frequency Welded 430mm Width Spiral Fin Tube 0

Application of Spiral Fin Tubes:
Waste heat boiler tube;
Economizer tube;
Power station boiler tube;
Marine boiler tube;
Heat exchanger

Finned Tube as a part of air heat exchanger,it takes a very important roles here.

Finned Tube Heat Exchanger heat tranfer area/M

Reference Selection (heat exchanger tube φ18 .Fin diameter φ38) heat exchanger area M 2
surface Tube quantity	Tube row quantity	Width	Tube lenght(mm)
surface Tube quantity	Tube row quantity	Width	600	800	1000	1200	1600	2000	2500	3000
8	3	430	10.5	14.0
	4		14.0	18.7
	5		17.5	23.4
	6		21.0	28.0
10	3	515	13.1	17.5	21.9
	4		17.5	23.4	29.2
	5		21.9	29.2	36.5
	6		26.3	35.0	43.8
12	3	605	15.8	21.0	26.3	31.5
	4		21.0	28.0	35.0	42.0
	5		26.3	35.0	43.8	52.6
	6		31.5	42.0	52.6	63.1
14	3	695		24.5	30.7	36.8
	4			32.7	40.9	49.1
	5			40.9	51.1	61.3
	6			49.1	61.3	73.6
Reference Selection (heat exchanger tube φ25 .Fin diameter φ50) heat exchanger area M 2
surface Tube quantity	Tube row quantity	Width	Tube lenght(mm)
surface Tube quantity	Tube row quantity	Width	600	800	1000	1200	1600	2000	2500	3000
8	3	505	15.8	21.1	26.4
	4		21.2	28.2	35.2
	5		26.4	35.2	44.0
	6		31.7	42.2	52.8
10	3	615	19.8	26.4	33.0	39.6
	4		26.4	35.2	44.0	52.8
	5		33.0	44.0	55.0	66.0
	6		39.6	52.8	66.0	79.2
12	3	725		31.7	39.6	47.5
	4			42.2	52.8	63.4
	5			52.8	66.0	79.2
	6			63.4	79.2	95.0
14	3	8.5			46.2	55.4	73.9
	4				61.6	73.9	98.6
	5				77.0	92.4	123.2
	6				92.4	110.9	147.8

Finned Tube for Air Heat Exchanger Application:

This type of Finned Tube Air heat exchanger is widely used in the drying in the industries of chemical,textile printing and drying,chemical fiber,latex,lather, timber,metallurgy coating,feed,lamination machine and others.

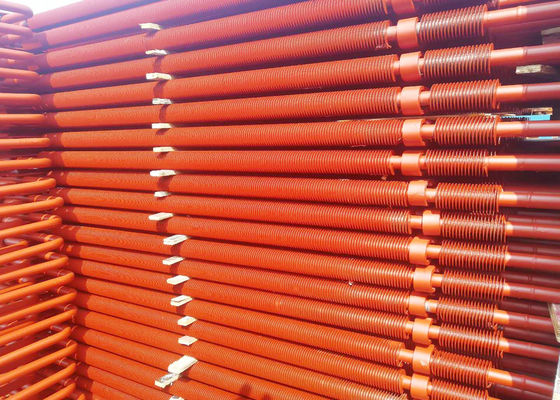

High Frequency Welded 430mm Width Spiral Fin Tube 1
