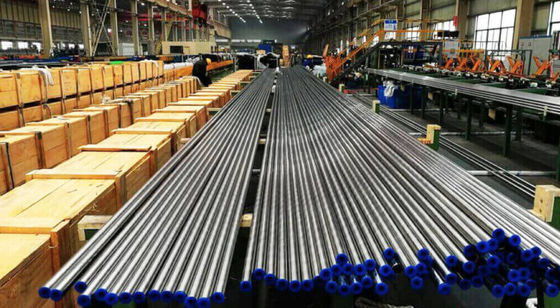

EN10216-5 1.4301 1.4307 1.4401 Stainless Steel Seamless Tube
Product Details
| STANDARD: | JIS, AiSi, ASTM, GB, DIN, EN | MATERIAL: | TP304L |
|---|---|---|---|
| SPECIFICATION: | Stainless Steel Seamless Tube , Pickled And Solid And Annealed . EN10216-5 1.4301 1.4307 1.4401 1.4404 1.4571 1.4438 | Package: | Standard Seaworthy Package |
| Processing: | Bending, Welding, Decoiling, Punching, Cutting, Moulding | Shape: | Round |
| Highlight |
1.4401 Stainless Steel Seamless Tube,EN10216-5 Stainless Steel Seamless Tube,1.4301 Stainless Steel Seamless Tube |
||
Product Description
Description

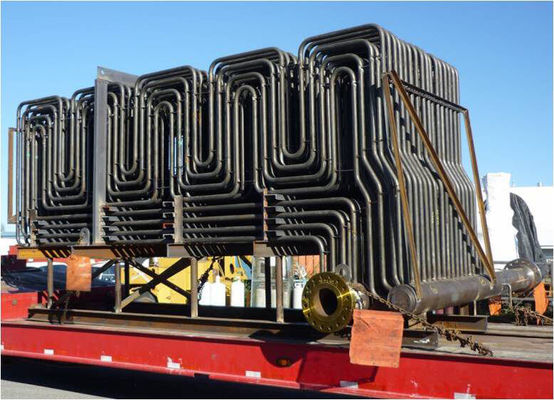

HDT specialized manufacturer of Stainless Steel Tubes for U Bend Tube Heat Ex-changer . Solution annealing after bend will be process to lower the residual stress, and followed by hydrostatic testing and dye penetrant testing if required.
Stainless Steel Tube are widely used in heat exchanger systems. Heat exchanger equipment on the basis of stainless steel tube is essential in strategically important and critical fields nuclear and petrochemical machine building.
Surface condition Finished Tube shall be free of scale, without scratches after bending
Mechanical Properties
| Material | Tensile Stress (MPa) min | Yield Stress 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| AISI 304L | 485 | 170 | 40 | 92 | 201 |
Chemical Composition
| Type | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| SS 304L | minimum | - | - | - | - | - | 18 | - | 8 | - |
| maximum | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 20 | 12 | 0.1 | ||
Equivalent Grade
| SS Grade | UNS No | Old British | EN / Euronorm | Swedish SS | Japanese JIS | GOST | ||
| BS | En | No | Name | |||||
| 304L | S30403 | 304S31 | 58E | 1.4306 / 1.4307 | X5CrNi18-10 | 2332 | SUS 304L | 03Х18Н11 |
Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
Product Highlights
Description HDT specialized manufacturer of Stainless Steel Tubes for U Bend Tube Heat Ex-changer . Solution annealing after bend will be process to lower the residual stress, and followed by hydrostatic testing and dye penetrant testing if required. Stainless Steel Tube are widely used in heat ...
