High Frequency Welding 316L Boiler Fin Tube For Heat Exchanger
Product Details
| Type: | Fin Tube,Heat Exchanger Tube | Application: | Heater Parts,Heat Exchanger |
|---|---|---|---|
| Fin Material: | Carbon Steel,stainless Steel,304L/316LStainless Steel | Packing: | Seaworthy Packing Of Fin Tube |
| Color: | Customized | Package: | Wooden Case With Steel Frame,In Bundles,etc. |
| Highlight |
high frequency welding boiler fintube,316L Boiler Fin Tube,TUV Boiler Fin Tube |
||
Product Description
High Frequency Welding 316L Boiler Fin Tube For Heat Exchanger

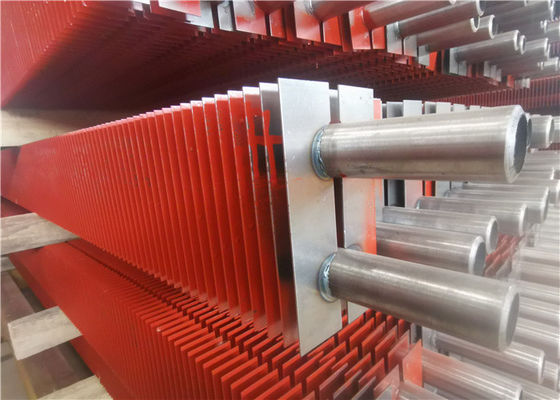

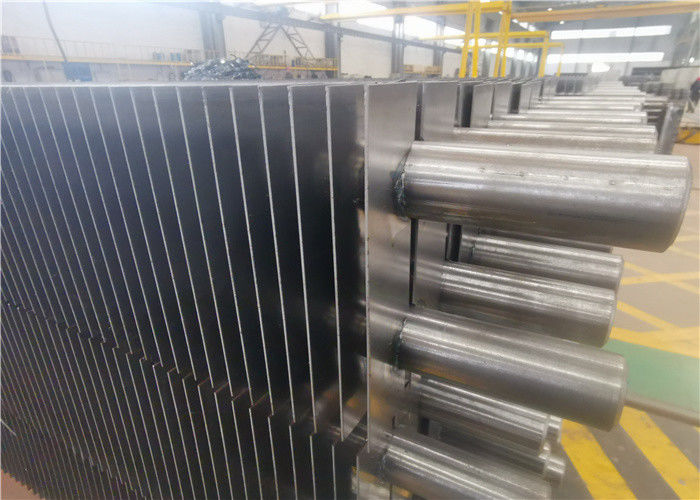

H-type tube, has a high rate of fusion welds and weld tensile strength. There is little contact resistance, and heat transfer performance and scalability are additional advantages. The H-fin tube is assembled with the H economizer, which has high efficiency, low resistance, and light weight. Compared to the traditional fin tube or spiral tube the H-fin tube can greatly expand the heating surface. When the extent of the effect of heat transfer is the same. The H-fin tube economizer takes up less space. In addition to the H economizer, H superheater, H air heater, and many other products. The H-fin tube has been included in the “Chinese high-tech product catalog”
Product Description
1.Finned Tube Heat Exchangers consist of a shell and finned tubes assembly.
2.Fins are used to increase the effective surface area of heat exchanger tubing.
3.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger, thermic fluid to air heat exchanger, when an extended surface is needed on only one fluid side or when the operating pressure needs to be contained on one fluid side.
Fin tube heat transfer area is 8 times than the light tube, high efficiency heat exchange, more advanced than the other heat exchange products.
Application: Boiler Economizer, Heat Exchange, Power Plant Waste Heat Boiler,Petrochemical Engineering.
Technical parameter
| Medium | air, flue gas, thermal oil, water, brine, refrigerant, etc. |
| Temperature | standard heat exchanger to 560 ° C by special materials can be higher |
| Pipe materials | carbon steel, stainless steel, alloy or special materials |
| Ribs materials | carbon steel, stainless steel, non-ferrous metal, alloy or special materials |
| Thermal insulation &Surface treatment | according to customers specification |
Features
1. The equipment body can be designed into many modules to ensure the long term and stable running;
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage
3. Improve the heat transfer efficiency
4. Structure arrangement: In line or staggered arrangement
Details
1.Our products can be modified according to our customers' needs and the situation.
Quality Control
| 1 | Impact test and Strength calculation report with applied materials information. |
| 2 | 100%NDT(non-destructive inspection) report of steel plate, tube and electrode. |
| 3 | X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler. |
| 4 | Hydraulic test report: ensure the standard working pressure and safety. |
Structure
Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
