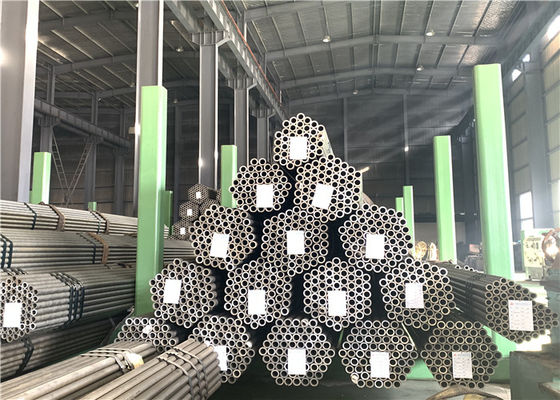

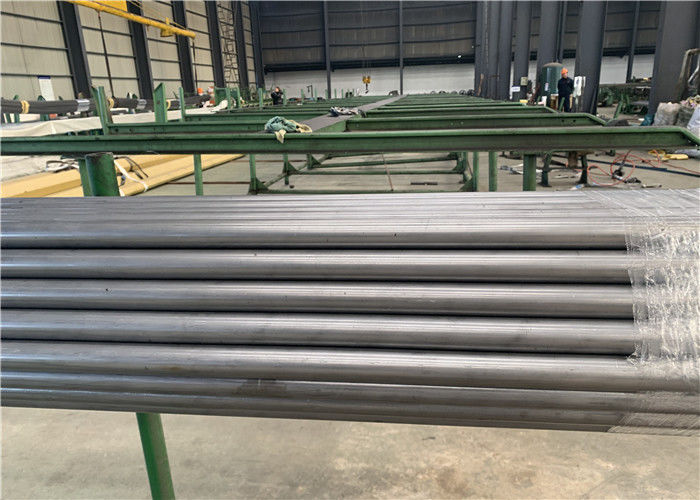

A179 / A192 T5 T11 T22 ASTM Carbon Steel Boiler Tubes
Product Details
| Product Name: | Carbon Steel Boiler Tube Heat Exchanger Seamless Tube | Type: | Seamless |
|---|---|---|---|
| Standard: | ASME/ASTM | Technical: | Cold Drawn |
| Highlight |
T22 Carbon Steel Boiler Tubes,T11 Carbon Steel Boiler Tubes,astm a 179 Steel Boiler Tubes |
||
Product Description
A179/A192 T5 T11 T22 Seamless Steel Boiler Pipe/Tube ASTM
SA179/SA192 CHEMICAL AND MECHANICAL COMPONENT:
| ASTM A179/(ASME SA179) | |
| Seamless Cold Drawn Low Carbon Steel Heat Exchanger And Conderser Tubes | |
| Application: | For tubular heat exchangers,condensers,and similar heat transfer apparatus. |
| Size(mm): | O.D.:6.0~114.0 W.T.:1~15 L:max 12000 |
Grade and Chemical Composition (%)
| Chemical Composition | C | Mn | P≤ | S≤ | Si≤ |
| 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 | 0.25 |
Tolerance(SA-450/SA-450M):
| OD In (mm) | + | - | WT In(mm) | + | - |
| <1(25.4) | 0.10 | 0.10 | ≤1.1/2(38.1) | 20% | 0 |
| 1~1.1/2(25.4~38.1) | 0.15 | 0.15 | >1.1/2(38.1) | 22% | 0 |
| >1.1/2~<2(38.1~50.8) | 0.20 | 0.20 | |||
| 2~<2.1/2(50.8~63.5) | 0.25 | 0.25 | |||
| 2.1/2~<3(63.5~76.2) | 0.30 | 0.30 | |||
| 3~4(76.2~101.6) | 0.38 | 0.38 | |||
| >4~7.1/2(101.6~190.5) | 0.38 | 0.64 | |||
| >7.1/2~9(190.5~228.6) | 0.38 | 1.14 |
ASTM A192/A192M-02 |
|
| Seamless Carbon Steel Bolier Tubes for High-Pressure | |
| Application: | For seamless carbon steel bolier and superheater tubes for high-pressure service |
| Size(mm): | O.D.:6.0~114.0 W.T.:1~15 L:max 12000 |
Grade and Chemical Composition (%)
| Chemical Composition | C | Mn | P≤ | S≤ | Si≤ |
| 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 | 0.25 |
Tolerance(SA-450/SA-450M):
| OD In (mm) | + | - | WT In(mm) | + | - |
| <1(25.4) | 0.10 | 0.10 | ≤1.1/2(38.1) | 20% | 0 |
| 1~1.1/2(25.4~38.1) | 0.15 | 0.15 | >1.1/2(38.1) | 22% | 0 |
| >1.1/2~<2(38.1~50.8) | 0.20 | 0.20 | |||
| 2~<2.1/2(50.8~63.5) | 0.25 | 0.25 | |||
| 2.1/2~<3(63.5~76.2) | 0.30 | 0.30 | |||
| 3~4(76.2~101.6) | 0.38 | 0.38 | |||
| >4~7.1/2(101.6~190.5) | 0.38 | 0.64 | |||
| >7.1/2~9(190.5~228.6) | 0.38 | 1.14 |
Applications:
1, For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2, Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3, Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4, The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5, Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
