Name: 304L 316L 304 Stainless Steel ASTM A213 Heat Exchanger Tubes
Brand: ZHANGJIAGANG HUA DONG ENERGY TECHNOLOGY CO.,LTD
SKU: Seamless Stainless Tube
Price: 4,900.00 USD
Availability: InStock

Home Products Seamless Stainless Tube

304L 316L 304 Stainless Steel ASTM A213 Heat Exchanger Tubes

Product Details:

Place of Origin:	China(Mainland)
Brand Name:	HDT
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	Seamless Stainless Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1T
Price:	800 - 9000 USD / ton
Packaging Details:	seaworthy packing for exporting
Delivery Time:	35days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	About 10000 ton / month

Contact Now

Detailed Product Description

Standard:	ASTM A213 ; ASTM A269 ; ASTM A312 ; EN10216-5 , Ect .	Finishing:	Annealed & Pickled/Bright Annealed
Application:	Boiler&Heat Exchanger, Energy, Petrochemical, Mining, Food, Paper, Gas And Fluid Industry	Shape:	Round Seamless
OD:	Outdiameter4mm -101.6mm	Thickness:	0.4mm-3.0mm
Highlight:	ASTM A213 Heat Exchanger Tubes , 304L Heat Exchanger Tubes , 316L Heat Exchanger Tubes

Stainless Steel Tube for Heat Exchanger Tubes Pipes 304L 316L 304

Stainless steel tube for heat exchanger,evaporater,boiler,condenser,muffler,cooler

Specifications:
1) Diameters: 4 - 76.2mm
2) W.T.: 0.4 - 2.5mm
3) Grades: 316L/304/304L/310S,etc.

4)standard:GB/ISO/EN/ASTM/JIS,etc.

5)application range:widely use in the foodstuff,medical equipment,power,boiler,cooler,auto,condenser etc.

6)packing: inner packing:1 pc/plastic bag;outer packing:bundles in weaving bags or in plywooden case.

Outside path in class deviation mm table 3

Outside path inIIclass deviation mm table 4

Outside path	Admission deviation
<25	±0.10
≥25~38.1	±0.15
>38.1~50	±0.20
≥50~63.5	0.25
>63.5~76	±0.30
≥76~102	±0.40

Outside path	Admission deviation
≤10	±0.15
>10~32	±0.20
>32~50	±0.30
>50	±0.8%

The thick the deviation of admission( do not include the weld sew) in wall of the weld tube is for ruling the wall thick 10% of ±, but minimum admission deviation is the 0.02 mms of ±.
The weld takes care of of settle Chinese foot length as 3 ms~9 ms, general settle the Chinese foot with the 6 ms.

The weld takes care of of settle the Chinese foot length in usually length, its the deviation of admission is the 5 mms of ±.
Adopt partial the degree of flinch in a the tube of weldfor keeping the Chinese foot measurement should not very in 2.0 mms.
The machine function sees the table 5
table 5

Steel number	Card number	The heat handles Make degree	The anti- pulls the strength MPa	Accept defeat the strength MPa	Extension rate%	Degree of hardnessHRB
0Cr19N19	304	≥1010°C Nasty and cold	≥520	≥205	40	≤90
00Cr19Ni11	304L	" "	≥480	≥175	40	≤90
0Cr17Ni12M02	316	" "	≥520	≥205	40	≤90
0Cr17Ni14M02	316L	" "	≥480	≥175	40	≤90
0Cr18Ni11Ti	321	≥920°C Nasty and cold	≥520	≥205	40	≤90

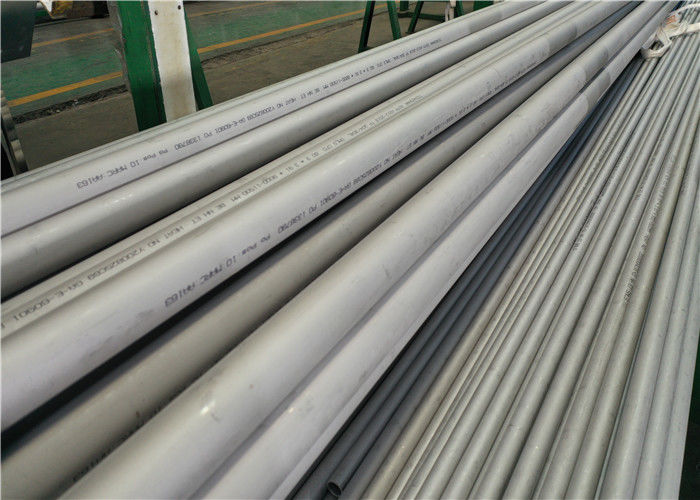

304L 316L 304 Stainless Steel ASTM A213 Heat Exchanger Tubes 0

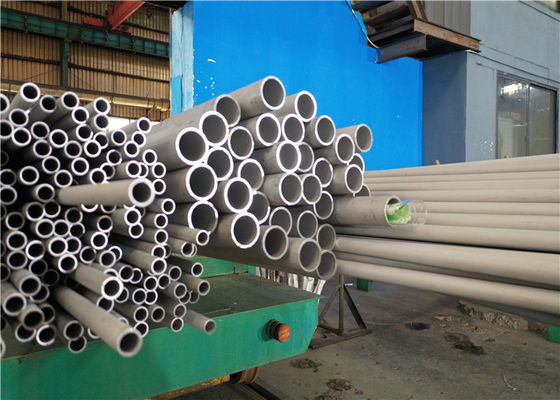

304L 316L 304 Stainless Steel ASTM A213 Heat Exchanger Tubes 1
