Name: Industrial 101.6MM EN10305-1 E235+N Boiler Steel Tube
Brand: ZHANGJIAGANG HUA DONG ENERGY TECHNOLOGY CO.,LTD
SKU: TP304L
Price: 550.00 USD
Availability: InStock

Home Products Boiler Steel Tube

Industrial 101.6MM EN10305-1 E235+N Boiler Steel Tube

Product Details:

Place of Origin:	China
Brand Name:	HDT
Certification:	ASME/CE / ISO /TUV
Model Number:	TP304L

Payment & Shipping Terms:

Minimum Order Quantity:	5T
Price:	100 - 1000 USD / ton
Packaging Details:	Seaworthy Package
Delivery Time:	30days
Payment Terms:	L/C, T/T
Supply Ability:	10000 ton / month

Contact Now

Detailed Product Description

STANDARD:	JIS, AiSi, ASTM, GB, DIN, EN	MATERIAL:	TP304L
SPECIFICATION:	Carbon Steel Seamless Boiler Tube, Cold-drawn Tube, ASTM A179/seamless Boiler Tubes/seamless Steel Pipe	Package:	Standard Seaworthy Package
Processing:	Bending, Welding, Decoiling, Punching, Cutting, Moulding	Shape:	Round
Highlight:	E235+N Boiler Steel Tube , EN10305-1 Boiler Steel Tube , 101.6MM Boiler Steel Tube

Description

We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years.

HDT specialized manufacturer of Stainless Steel Tubes for U Bend Tube Heat Ex-changer . Solution annealing after bend will be process to lower the residual stress, and followed by hydrostatic testing and dye penetrant testing if required.

Alloy steel tubes is a kind of steel alloyed tube with other elements in amounts of between 1 and 50% by weight to improve its mechanical properties.Alloying elements are added to achieve certain properties in the material. As a guideline,alloying elements are added in lower percentages (less than 5%) to increase strength or harden ability or in larger percentages (over 5%) to achieve special
properties, such as corrosion resistance or extreme temperature stability.

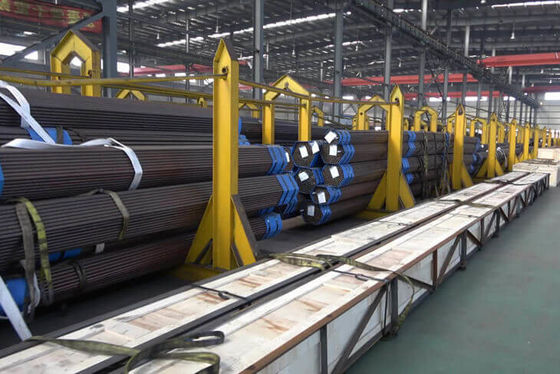

Industrial 101.6MM EN10305-1 E235+N Boiler Steel Tube 0

Specification:

Chemical Composition:

Steel grade		Chemical composition, as a percentage by mass
Symbol	Material number	C max.	Si max.	Mn	P max.	S max.
St 30 Si	1.0211	0.10	0.30	<=0.55	0.025	0.025
St 30 Al	1.0212	0.10	0.05	<=0.55	0.025	0.025
St 35	1.0308	0.17	0.35	<=0.40	0.025	0.025
St 45	1.0408	0.21	0.35	<=0.40	0.025	0.025
St 52	1.0580	0.22	0.55	<=1.60	0.025	0.025
The following alloying elements may be added: Nb: <=0,03%; Ti: <=0,03%; V: <=0,05%; Nb + Ti + V: <=0,05%.

Steel grade		Chemical Composition(%):
Steel name	Steel number	C max	Si max	Mn	P max	S max	Al min
E215	1.0212	0.10	0.05	0.70	0.025	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.025	-
E355	1.0580	0.22	0.55	1.60	0.025	0.025	-

Mechanical properties:

Grade	Tensile strength	Yield strength	Elongation
P11, P22, P5, P9	≥415	≥205	≥30/20
P91	≥585	≥415	≥20
P92	≥620	≥440	≥20

Application Industries

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers

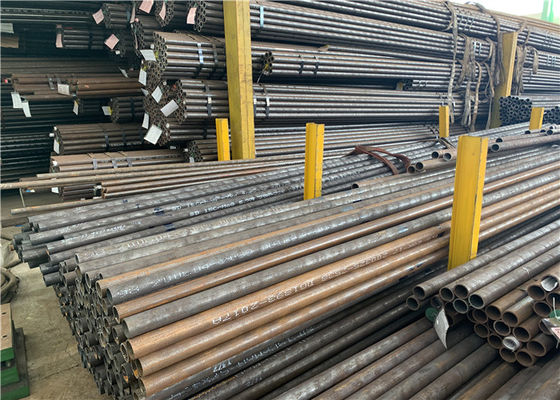

Industrial 101.6MM EN10305-1 E235+N Boiler Steel Tube 2
