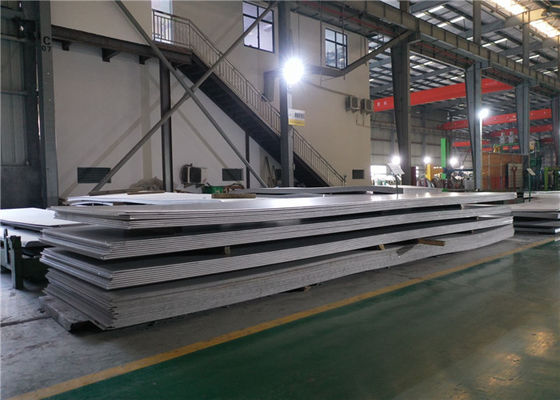

Cold / Hot Rolled ASME Standard Boiler Alloy Steel Sheet Plate

Product Details:

Place of Origin:	China
Brand Name:	HDT
Certification:	ISO SGS
Model Number:	Boiler Alloy Steel Sheet Plate

Payment & Shipping Terms:

Minimum Order Quantity:	5T
Price:	800 - 9000 USD / ton
Packaging Details:	seaworthy packing for exporting
Delivery Time:	60-75days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	About 1000 ton / month

Contact Now

Detailed Product Description

Product Name:	Alloy Steel Plate	Standard:	AISI,ASTM,BS,DIN,JIS
Technique:	Cold Rolled / Hot Rolled	Application:	Boiler Plate
Surface Treatment:	Coated,Galvanized	Width:	Customized
Highlight:	ASME Standard alloy steel plate , SGS alloy steel plate , 0.1mm thickness alloy steel plate

Cold / Hot Rolled Boiler Stainless / Alloy Steel Sheet Plate ASME Standard

Product Description

Standard	ASTM, ASME, EN, BS, GB, DIN, JIS, etc
Material	A36,A106Gr.B,Q235,Q345,Q195,ST37-2,ST52-3,A516-Gr.55/Gr60/Gr65,Gr70,A204,A378-Gr.2/Gr.12/Gr22,13CrMo44,10CrMo910,15Mo3,A515 ,Cr.60/Cr55/Cr65,4140,4130 etc
Width	1000mm,1219mm,1250mm,1500mm,1800mm,2000mm,2200mm,2500mm,3000mm.ect.
Thickness	0.1mm-280mm as customer's requirement
Length	1000mm-12000mm or as required
Length	1000mm-12000mm or as required
Surface	Black painted,PE coated,Galvanized ,colour coated ,etc
Packaging	Standard export sea-worthy packing
Technique	Hot rolled/ cold rolled
Delivery time	7-15 days
supply ability	7010 metric tons/ month
Application range	Foodstuff, gas, metallurgy, biology, electron, chemical, petroleum, boiler, fertilizer, etc
Advantages	1.Short delivery time
	2.Quality assurance
	3.Competitive price
	4.Superior Service
Note	We can produce other standard as the customers' requirement

Characteristics

4140 Alloy Steel/SAE 4140 Steel Price is engineering steel supplied in quenched and tempered conditions. Very good machinability. High toughness. High creep strength. Repeated impact resistant capability.

Applications

4140 Alloy Steel/SAE 4140 Steel Price is use to producecomponents with high requirements on toughness, e.g. gear wheels, pinions, connecting rods, parts for mechanical engineering .

Chemical Composition

_{SA387/ASTM A387}	_{Grade 5}	_{Grade 9}	_{Grade 11}	_{Grade 12}	_{Grade 22}
_C	_{0.15 max}	_{0.15 max}	_{0.04 – 0.17}	_{0.04 – 0.17}	_{0.04 – 0.15}
_Mn	_{0.25 – 0.66}	_{0.25 – 0.66}	_{0.35 – 0.73}	_{0.35 – 0.73}	_{0.25 – 0.66}
_P	_0.035	_0.030	_0.035	_0.035	_0.035
_S	_0.030	_0.030	_0.035	_0.035	_0.035
_Si	_{0.55 max}	_{1.05 max}	_{0.44 – 0.86}	_{0.13 – 0.45}	_{0.5 max}
_Cr	_{3.9 – 6.1}	_{7.9 – 10.1}	_{0.94 – 1.56}	_{0.74 – 1.21}	_{1.88 – 2.62}
_Mo	_{0.40 – 0.7}	_0.85- 1.15	_{0.40 – 0.7}	_{0.4 – 0.65}	_{0.85 – 1.15}

Mechanical Properties

Grade	A 387 Grade 5 & Grade 9		A 387 Grade 11		A 387 Grade 12		A 387 Grade 22
Grade	Class 1	Class 2	Class 1	Class 2	Class 1	Class 2	Class 1	Class 2
Tensile Strength (ksi)	60-85	75-100	60-85	70-90	50-80	65-85	60-85	75-100
Tensile Strength (MPa)	415-585	515-690	415-585	485-620	380-550	450-585	415-585	515-690
Yield Strength (ksi)	30	45	35	45	33	40	30	45
Yield Strength (MPa)	205	310	240	310	230	275	205	310
Elongation in 200mm (%)			19	18	18	19
Elongation in 50mm (%)	18	18	22	22	22	22	18	18

Surface condition

Black surface/ Grinded/ Machined

Hardness

Annealed HBS 217 max

Heat treatment

Forging Heat to 1150°C. Hold until uniform. Minimum forging temperature 850°C.Cool slowly in ashes or sand etc.

AnnealingHeat to 830°C-850°C.Cool in furnace.

NormalisingHeat to 870°C-900°C.Cool in still air.

Stress RelievingAnnealed: Heat to 600°C-650°C.Hardened: Heat to 500°C-550°C.Cool in still air.

HardeningHeat to 830°C-880°C. Quench in oil or polymer.

TemperingHeat to 450°C-700°C cool in still air. NB. Tempering within the range 200°C-420°C will result in temper brittleness and should be avoided.
