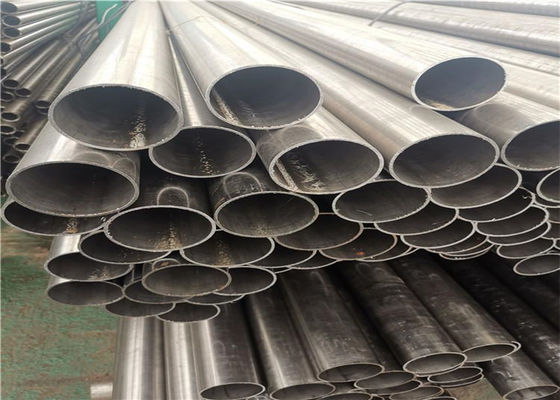

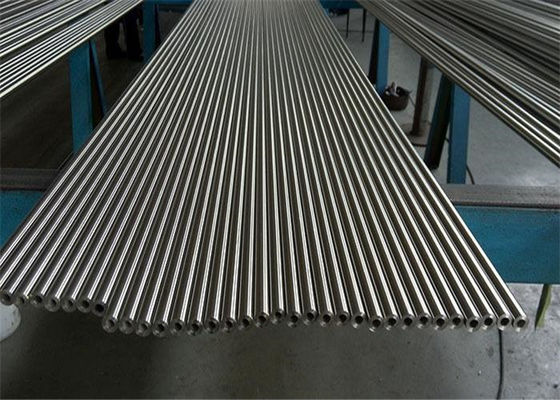

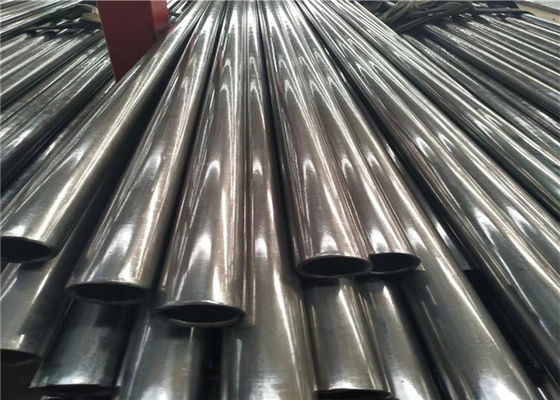

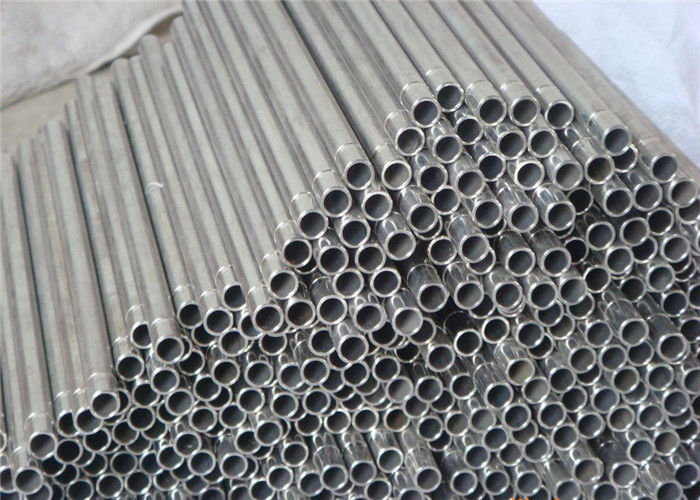

ASME SA249 ERW Annealed Pipe Plain Ends For Fitness Equipment
Product Details
| Steel Grade: | TP304/304L, TP316/316L, TP321/321H, TP347/347H, TP310S, TP904L | Application: | Welded Austenitic Steel Boiler, Superheater,Heat-Exchanger, Condenser |
|---|---|---|---|
| Standard: | ASTM A249/ASME SA249 | Shape: | Straight&U Bend |
| Highlight |
ASME SA249 Annealed Pipe,ERW Anneal steel pipe,ASME SA249 Anneal steel pipe |
||
Product Description
ASME SA249 / ASTM A249 TP304 TP316L TP321 Stainless Steel Welded Pipe Bright Annealed Plain End
Production Information
Size Range:
| Production | Outside Diameter | Wall Thickness |
| Boiler Pipe | 6.00mm to 630mm | 0.5mm to 52mm |
Final Finishing
Solution Annealed & Pickled / Bright Annealed.
Type of Pipes:
U-bend & Straight.
Some of the quality tests carried out by us includes:
| Corrosion Test | Conducted only when specially requested by the client |
| Chemical Analysis | Test done as per required quality standards |
| Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
| Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
| Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
|
|
|
Product Highlights
ASME SA249 / ASTM A249 TP304 TP316L TP321 Stainless Steel Welded Pipe Bright Annealed Plain End Production Information Technique: Anneal steel pipe Brighted steel pipe Pre galvanized steel pipe Usage: Furniture pipe Handrail pipe Fitness Equipment pipe Specifications: OD 11.8-76mm WT 0.5-2.0mm ...
