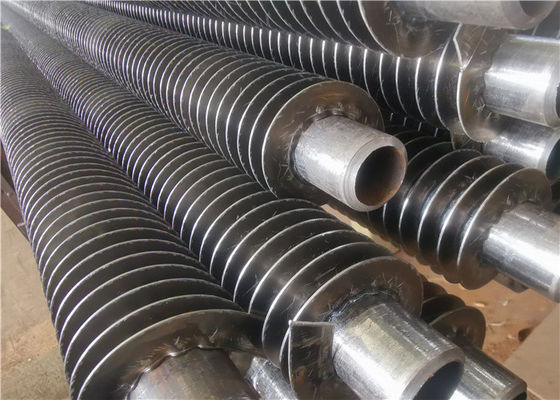

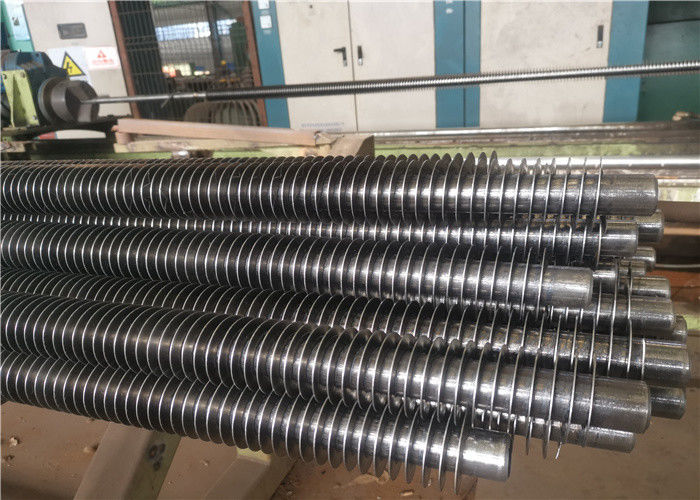

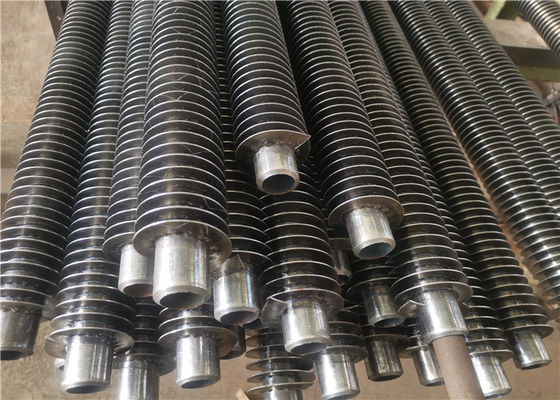

219mm Welding ASME Carbon Steel Boiler Fin Tube For Heat Exchanger
Classification
|
Product Name
|
Fin Tube for Heat Exchanger/ Cooler
|
|
Bare Tube Material
|
Copper, Alloy, Carbon Steel, Stainless Steel, Nickel Alloy, as per requirement.
|
|
Bare Tube Outer Diameter
|
16-219mm
|
|
Fin Material
|
Alloy, Carbon Steel, Stainless Steel, Aluminium
|
|
Fin Pitch
|
3-25mm
|
|
Fin Height:
|
5-30mm
|
|
Fin Thickness
|
0.8-3mm
|
|
Delivery time
|
30 days upon the receipt of advance payment
|
|
Delivery term
|
FOB, CFR, CIF, FCA
|
|
Grade
|
Stainless Steel: 304, 304H, 316L, 316Ti, 321H, 317L, 310S, 309S, 904L, S31254, 347H, 347HFG, ,TP410, TP430, TP409, TP444
Duplex Steel: S31803, S32205, S32750, S32760
Nickel Alloy: Monel: UNS N04400, N05500
Inconel: UNS N06600, N06601, N06625, N07718
Incoloy: UNS N08800/8810/8811, NO8825, N08926
Hastelloy: UNS N10276, N06022, N010675, N010665
|
Product Description
Boiler Fin Tube is the Energy improving device that helps to reduce the cost of operation by saving the fuel. The Fin Tube in Boiler tends to make the system more energy efficient. In boilers,Fin Tube are generally designed to exchange heat with the fluid, generally water. The exhaust from the boilers is generally in the temperature range of 200°C – 250°C, so there are a huge amount of losses from the boiler if any heat recovery devices are not installed after it. Boiler Economizer that suit your boiler system and will increase its overall efficiency from 3% – 5%. Increase in boiler efficiency will save a lot of your operating cost and eventually will prolong the life of your boiler system.
Specifications
1). Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.
2). H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3). H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4). With straight channel to gain the best ash-blowing effect.
5). The compact structure to reduce the weight and reduce the manufacturing cost.
