API High Pressure SA210 A1 Carbon Steel Boiler Tube Burn Out Prevention
Product Details
| Standard: | API/CE / ISO /TUV | Product Name: | Carbon Steel Pipe Boiler Tube For Heat Exchanger |
|---|---|---|---|
| Application: | Industrial Boiler | Surface Treatment: | Dry Varnish Coated |
| Secondary Or Not: | Non-secondary | Alloy Or Not: | Non-alloy |
| Highlight |
SA210 A1 carbon steel boiler tube,API carbon steel boiler tube,SA210 A1 alloy steel boiler tube |
||
Product Description

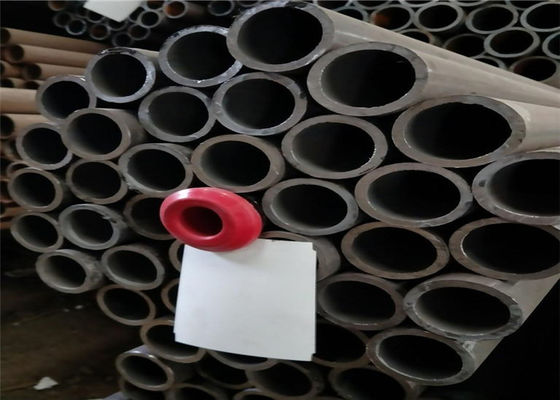

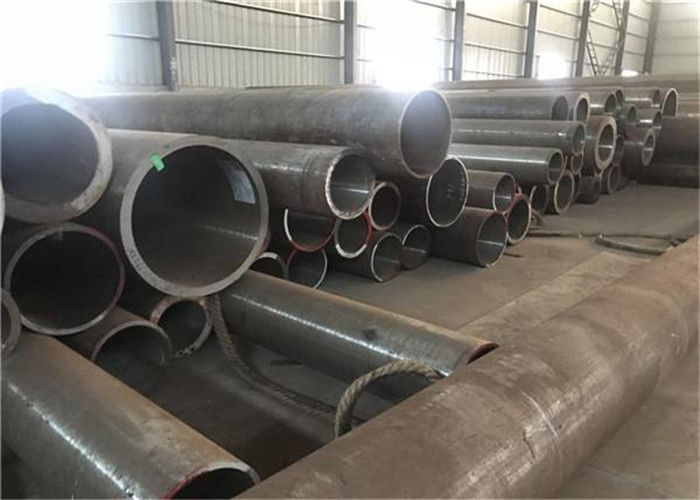

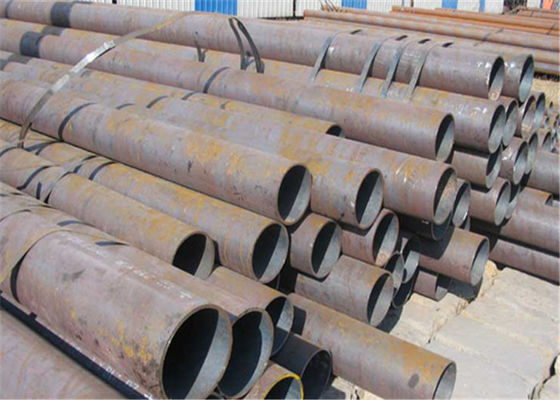

High Pressure SA210 A1 Carbon Steel Seamless Heat Exchanger Rifled Boiler Tube
Product Information
Production Standard: GB/T20409-2006
SteelGrade:20G,20MNG,25MNG,12CRMOG,15CRMOG,SA210A1,SA210C,SA213T2/T12,WB36,T91,T11,
P11,P22,P92,P5,P9,R102,CR5MO,16MO3,12CR2MOWVTIB
Internal Thread High pressure boiler Rifled tube is one kind of endophragm processes the spiral line the seamless steel pipe. Main application in on capacity utility boiler's water cooling wall. Usually with the fluorescent tube which uses compares, it can maintain the nuclear ebullition condition under the high fever load operating condition, thus avoids sending the filming condition ebullition, prevents the pipe to burn out, lengthens the pipe service life.
Chemical&Mechanical parameters
| Grade | C | Mn | Si | Cr | Mo | S | P |
| 20G | 0.17~0.23 | 0.35~0.65 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 20MnG | 0.17~0.23 | 0.70~1.00 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 25MnG | 0.22~0.29 | 0.70~1.00 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 12CrMoG | 0.08~0.15 | 0.40~0.70 | 0.17~0.37 | 0.40~0.70 | 0.40~0.55 | ≤0.020 | ≤0.025 |
| 15CrMoG | 0.12~0.18 | 0.40~0.70 | 0.17~0.37 | 0.80~1.10 | 0.40~0.55 | ≤0.020 | ≤0.025 |
| SA-210A1 | ≤0.27 | ≤0.93 | ≥0.10 | --- | --- | ≤0.035 | ≤0.035 |
| SA-210C | ≤0.35 | 0.29~1.06 | ≥0.10 | --- | --- | ≤0.035 | ≤0.035 |
| SA-213T2 | 0.10~0.20 | 0.30~0.61 | 0.10~0.30 | 0.50~0.81 | 0.44~0.65 | ≤0.025 | ≤0.025 |
| SA-213T12 | 0.05~0.15 | 0.30~0.61 | ≤0.50 | 0.80~1.25 | 0.44~0.65 | ≤0.025 | ≤0.025 |
| Grade | T(MPa) | Y(MPa) | E(%) | Hardness |
| 20G | 410~550 | 245 | ≥24 | --- |
| 20MnG | ≥415 | ≥240 | ≥22 | --- |
| 25MnG | ≥485 | ≥275 | ≥20 | --- |
| 12CrMoG | 410~560 | ≥205 | ≥21 | --- |
| 15CrMoG | 440~640 | ≥235 | ≥21 | --- |
| SA-210C | ≥415 | ≥255 | ≥30 | ≤143HBW |
| SA-210A1 | ≥485 | ≥275 | ≥30 | ≤179HBW |
| SA-213T2 | ≥415 | ≥205 | ≥30 | ≤163HBW |
| SA-213T12 | ≥415 | ≥220 | ≥30 | ≤163HBW |
ASME SA 210A1 Carbon Steel Seamless Tubes are Low Carbon Steel Tubes with 0.06-0.18 % carbon content with combination of 0.27-0.63 % manganese. These Tubes are also known as mild steel pipes and tubes.
ASME SA 210A1 Tubes are low-cost Tubes easy to form and shape. These pipes are manufactured as per ASME Specification and commercially referred as cs pipes or ms pipes. Low Carbon Steel Pipes are not as hard as hig carbon steel pipes,Though carburizing can increase its surface hardness.
| Mechanical Properties | |||||
| Yield Strength | Tensile Strength | Elongation A5 min | |||
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage |
| max.72 HRB | – | ||||
| Equivalent Designation | |||||
| DIN | EN | BS | NFA | ASTM | ASME |
| – | EN P235GH Grade 10216-2 | – | ASTM A179 – | ASME SA 179 – | UNI C14 |
ASME SA 210A1 specification covers minimum-wall-thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus. Recommended pipe size will be developed by FerroPipe upon receipt of your inquiry. A print or sketch of the part to be produced should be included. Grade, chemical analysis and surface condition are carefully considered, and production processes are tailored to achieve the best tubing for the end use.

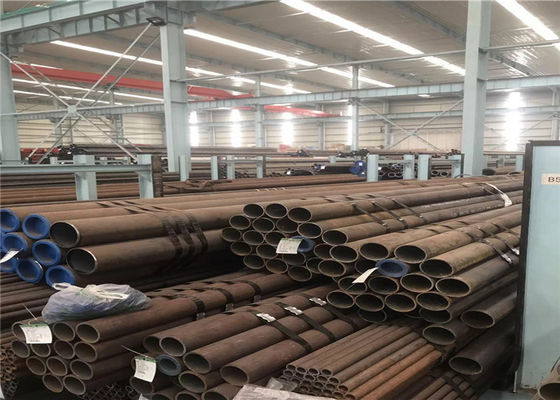

ASME SA 210A1 Carbon Steel Seamless Tubes stockist in China
hdt Pipeline stocks a complete range of IBR Certified ASME SA210a1 bon Steel Seamless Tubes in outer diameter tube sizes ½”-24” and Nominal bore NB sizes 15NB-600NB in Mumbai, India.
Exporting Carbon Steel Pipes and Alloy Steel Pipes to countries worldwide including IRAN, IRAQ, KUWAIT, QATAR, South Africa, Nigeria, Saudi Arabia, Australia, Canada & Mexico.
The Manufacturer shall provide Material Test certificate of inspection to the purchaser stating that the material has been manufactured, sampled, tested, and inspected in accordance with ASME SA 210a1cluding year of issue), and has satisfied all the requirements of ASME SA 210a1
Pipes and Tubes manufactured as per ASME SA 210a1 certified with En 10204 Type 3.1/3.2. IBR,NACE,HIC,IGC,IMPACT are adhered as supplementary testing requirements.
