ASTM SA179M Cold Drawn Boiler Steel Tube Minimum Wall Thickness
Product Details
| Product Name: | Carbon Steel Seamless Boiler Tube | Application: | Tubular Heat Exchanger And Condenser |
|---|---|---|---|
| Third Party Inspection: | BV,SGS,ASP | Certificate: | ISO9001-2008, API 5L, API 5CT |
| Highlight |
cold drawn Boiler Steel Tube,ASTM SA179M Boiler Steel Tube,ASTM SA179M condenser tubes |
||
Product Description

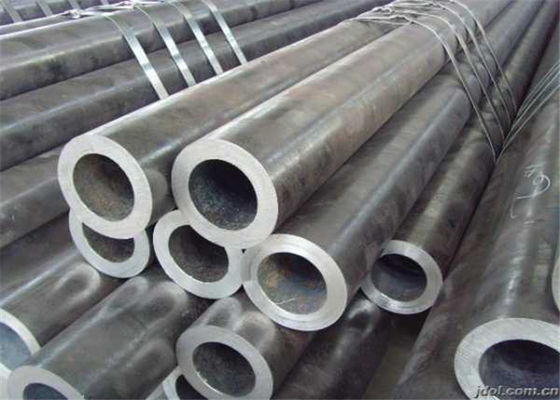

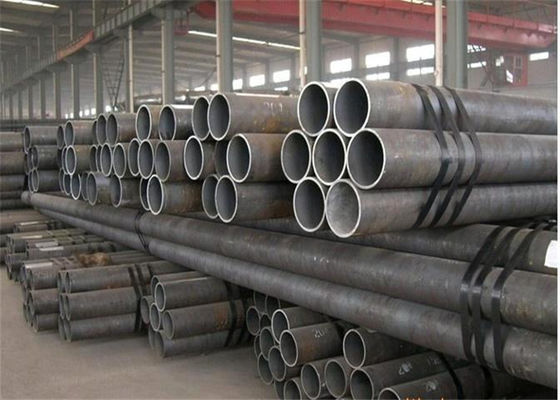

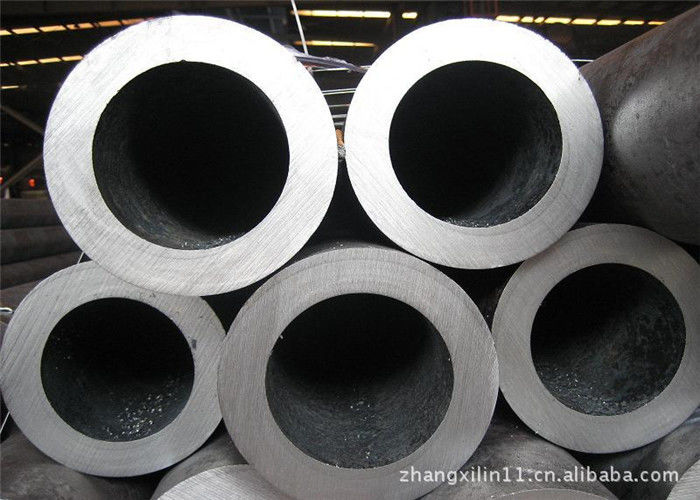

Seamless cold drawn low carbon steel heat exchanger and condenser tubes ASTM A179/A179M, ASME SA179/SA179M
ASTM A179 covers minimum-wall thickness, seamless cold-drawn low-carbon steel tubes for tubular heat-exchange, condensers, and similar heat transfer apparatus. Tubes shall be made by the seamless process and shall be cold drawn. Heat and product analysis shall be performed wherein steel materials shall conform to required chemical compositions of carbon, manganese, phosphorus, and sulfur. The steel materials shall also undergo hardness test, flattening test, flaring test, flange test, and hydrostatic test.
Chemistry Composition:
|
C, %
|
Mn, %
|
P, %
|
S, %
|
|
0.06-0.18
|
0.27-0.63
|
0.035 max
|
0.035 max
|
Mechanical Properties:
|
Yield Strength (Mpa)
|
Tensile Strength (Mpa)
|
Elongation, %
|
Hardness, HRB
|
|
≥180
|
≥325
|
35 min
|
72 max
|
Application:
A179 seamless steel pipe is widely used in industries such as petroleum, chemical, medical, food, light industry, machinery, instrument, include industrial pipeline and mechanical structure parts, etc.
Standard:ASTM A179
Delivery time : Promptly ( Stock) or 10-40 days (Production) Stock : some are Available MTC: Available
Outside Diameter & Tolerance
|
Outside Diameter, mm
|
Tolerance, mm
|
|
3.2≤OD＜25.4
|
±0.10
|
|
25.4≤OD≤38.1
|
±0.15
|
|
38.1＜OD＜50.8
|
±0.20
|
|
50.8≤OD＜63.5
|
±0.25
|
|
63.5≤OD＜76.2
|
±0.30
|
|
76.2
|
±0.38
|
Wall thickness & Tolerance
|
Outside Diamter, mm
|
Tolerance, %
|
| 3.2≤OD＜38.1 |
+20/-0
|
|
38.1≤OD≤76.2
|
+22/-0
|
Length: 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; and so on.
Max length: 27000mm, also U bending can be offered.
