ASME Carbon Steel Seamless Tubes Superheater Coil For Heat Exchanger SA179
Product Details
| Standard: | API/CE / ISO /TUV | Product Name: | Carbon Steel Pipe Boiler Tube For Heat Exchanger |
|---|---|---|---|
| Application: | Power Plant Boiler | Surface Treatment: | Dry Varnish Coated |
| Technique: | Cold Drawn | Special Pipe: | U Type Boiler Tube |
| Highlight |
Carbon Steel Superheater Coil,ASME Superheater Coil,ASME Carbon Steel Seamless Tube |
||
Product Description

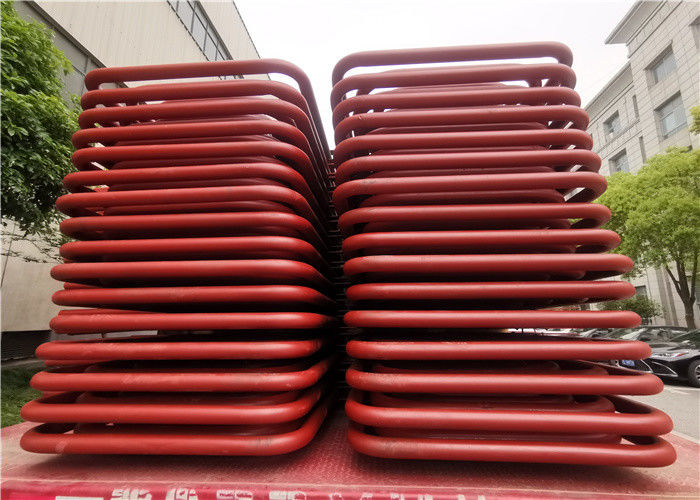

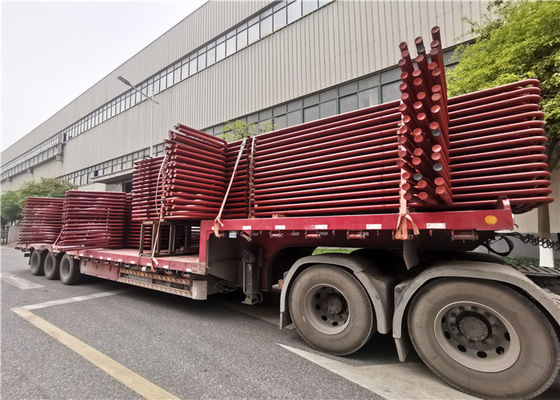

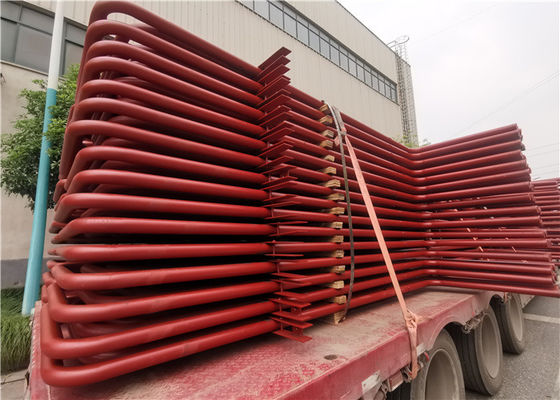

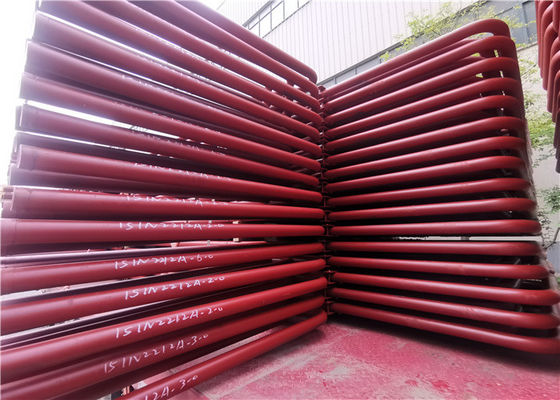

ASME Carbon Steel Seamless Tubes Superheater Coil For Heat Exchanger SA179
ASME SA-179 Standard Specification for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes.
SA-179 is a low carbon cold drawn carbon steel pipe for condensers and heat exchangers, the implementation standard: SA-179M-2010 seamless cold drawn low carbon pipe for heat exchangers and condensers.It is mainly used for heat exchanger and U-tube.
Product Name : ASME SA 179 Carbon Steel Seamless Tubes are Low Carbon Steel Tubes with 0.06-0.18 % carbon content
ASME SA 179 Specification
ASME SA 179 Carbon Steel Seamless Tubes are Low Carbon Steel Tubes with 0.06-0.18 % carbon content with combination of 0.27-0.63 % manganese. These Tubes are also known as mild steel pipes and tubes.
ASME SA 179 Tubes are low-cost Tubes easy to form and shape. These pipes are manufactured as per ASME Specification and commercially referred as cs pipes or ms pipes. Low Carbon Steel Pipes are not as hard as hig carbon steel pipes,Though carburizing can increase its surface hardness.
ASME SA 179 Properties
| Chemical Properties | |||||||||
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
| 0.06-0.18 | – | 0.27-0.63 | 0.035 | 0.035 | – | – | – | – | – |
| Mechanical Properties | |||||||||
| Yield Strength | Tensile Strength | Elongation A5 min | |||||||
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage | ||||
| max.72 HRB | – | ||||||||
| Equivalent Designation | |||||
| DIN | EN | BS | NFA | ASTM | ASME |
| – | EN P235GH Grade 10216-2 | – | ASTM A179 – | ASME SA 179 – | UNI C14 |
ASME SA 1791 specification covers minimum-wall-thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus. Recommended pipe size will be developed by FerroPipe upon receipt of your inquiry. A print or sketch of the part to be produced should be included. Grade, chemical analysis and surface condition are carefully considered, and production processes are tailored to achieve the best tubing for the end use.
ASME SA 179 Carbon Steel Seamless Tubes stockist in China
|
Product Name
|
ASME SA179 SA192 Heat Exchanger Tube Seamless Steel Boiler Tube
|
|
Material
|
10#, 20#, 45#, 16Mn, A53(A,B), Q235, Q345, Q195, Q215, St37, St42, St37-2, St35.4, St52.4, ST35
|
|
Wall Thickness
|
4.5MM~60MM
|
|
Outer Diameter
|
60.3MM~762MM
|
|
Length
|
Length:Single random length/Double random length
5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques |
|
|
API 5L, ASTM A53-2007, ASTM A671-2006, ASTM A252-1998, ASTM A450-1996, ASME B36.10M-2004, ASTM A523-1996, BS 1387, BS EN10296, BS 6323, BS 6363, BS EN10219, GB/T 3091-2001, GB/T 13793-1992, GB/T9711
|
|
|
10#-45#, 16Mn, A53-A369, Q195-Q345, ST35-ST52
Grade A, Grade B, Grade C |
|
Section Shape
|
Round Steel Pipe
|
|
Technique
|
Hot Rolled/Cold Drawing
|
|
Packing
|
Bundle, or with all kinds of colors PVC or as your requirements
|
|
Pipe Ends
|
Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
|
|
|
1. Galvanized
2. PVC,Black and color painting 3. Transparent oil,anti-rust oil 4. According to clients requirement |
