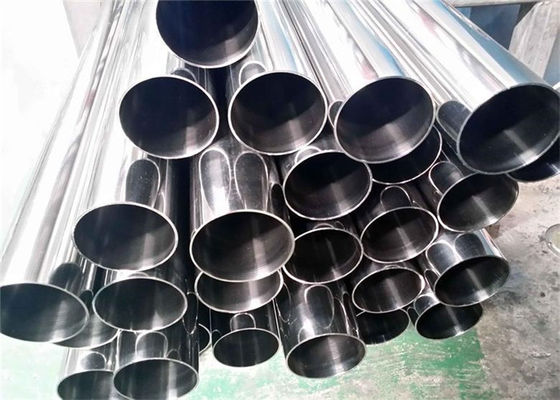

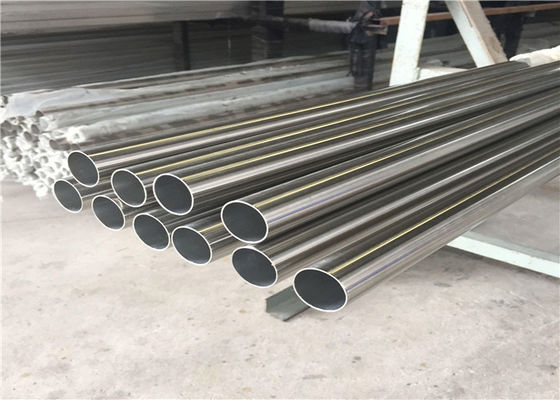

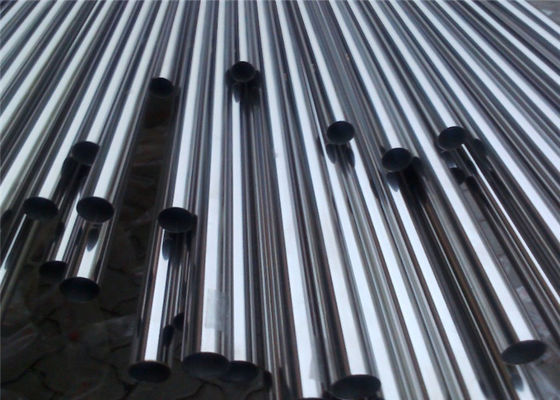

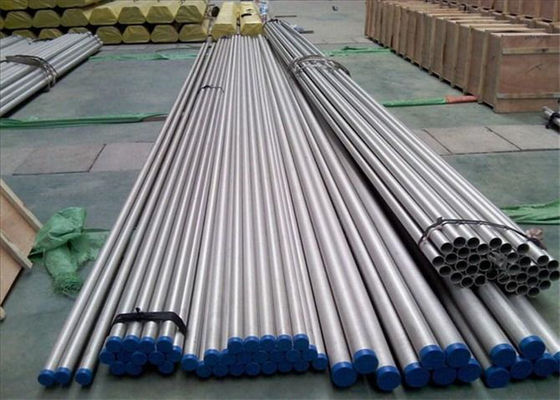

Name: 904L 6.00mm Seamless Stainless Tube For Heat Exchanger
Brand: ZHANGJIAGANG HUA DONG ENERGY TECHNOLOGY CO.,LTD
SKU: UNS NO8904 / 904L
Price: 4,900.00 USD
Availability: InStock

Home Products Seamless Stainless Tube

904L 6.00mm Seamless Stainless Tube For Heat Exchanger

Product Details:

Place of Origin:	China(Mainland)
Brand Name:	HDT
Certification:	ASTM B677
Model Number:	UNS NO8904 / 904L

Payment & Shipping Terms:

Minimum Order Quantity:	5T
Price:	800 - 9000 USD / ton
Packaging Details:	seaworthy packing for exporting
Delivery Time:	60-75days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	About 10000 ton / month

Contact Now

Detailed Product Description

Material:	UNS NO8904 / 904L	Finishing:	Annealed & Pickled/Bright Annealed
Application:	Boiler&Heat Exchanger, Energy, Petrochemical, Mining, Food, Paper, Gas And Fluid Industry	Shape:	Round Seamless
OD:	6.00mm To 101.6mm	WT:	0.5mm To 8mm
Highlight:	904L seamless stainless tube , 6.00mm seamless stainless tube , 904L stainless steel seamless pipe

ASTM 304L 304 Steel Pipe Seamless Stainless Steel Pipe/ Tube Stainless Steel

Production

Feature:	A) High cost performance; B) Prompt delivery; C) Manufacture according to the sizes and design of customers; D) Best service; E) Certification: ISO9001-2005
Material:	200 series: 201, 202 300 series: 301, 302, 303, 304, 304L, 309, 310, 310S, 316, 316L, 321, 347 400 series: 409, 410, 420, 430, 440 600 series: 15-5PH, 17-4PH, 17-7PHOther: 9004L Duplex: 254SMO, 2205, 2507, ASTM A694, S32760 Different grade can meet different customer's requirement
Product Specs:	A:Round pipe 12,13,14,16,19,25.4,31.8,44.5,50.8,63.5,76.2 B:Rectangular pipe 10x30,10x40,10x50,10x75,10x80,10x90,10x100,20x40,20x80,20x100,25x38,25x50,25x75 etc. C:Elliptical pipe 20x38,23x38,20x40,28x46,38x62,42x75,40x80,40x110,50x100,60x120
Finish:	1.Satin 2.400# 3.600~1000# mirrorx 4.HL brushed 5.Brushed Mirror(two kinds of finishing for one pipe)
Application:	decorative /industrial/building material
Min.bending radius:	A:38.1~50.8=RX1M B:63.5~76.2=RX1.5-2.5M C:88.9~101.6=RX3-4.5M
Production process:	Turn on the roll -- solder side-forming -- weld -- weld the seam inner&external --polishing&fix melting -- fix the diameter&to be straight -- vortex test -- cuted by saw -- press test -- final test -- package
Delivery time	7-15days after order ,according to customer's order quantity.
Packing:	Every tube is sleeved in plastic bag individually, and then 10pcs/bundle or 50 pcs/bundle.We can pack as clients' requirement.
Payment Terms:	T/T 30% deposit,70% balance should be paid before shipment;L/C,D/P are available

Material Grade:

American Standard

Austenitic Steel:

TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Nickel Alloy:

UNS NO8800, NO8811, NO8825, NO8810, NO718, NO690, NO6625, NO6600, NO4400

Others:TP405,TP409, TP410, TP430, TP439,...

Europen Standard

1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

Russia Standard

08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ

Tube Sizes for Heat Exchangers & Condensers & Boiler
Outside Diameter			BWG
		25	22	20	18	16	14	12	10
			Wall Thickness mm
		0.508	0.71	0.89	1.24	1.65	2.11	2.77	3.40
mm	inch		Weight kg/m
6.35	1/4	0.081	0.109	0.133	0.174	0.212
9.53	3/8	0.126	0.157	0.193	0.257	0.356	0.429
12.7	1/2		0.214	0.263	0.356	0.457	0.612	0.754
15.88	5/8		0.271	0.334	0.455	0.588	0.796	0.995
19.05	3/4		0.327	0.405	0.553	0.729	0.895	1.236
25.4	1		0.44	0.546	0.75	0.981	1.234	1.574	2.05
31.75	1 1/4		0.554	0.688	0.947	1.244	1.574	2.014	2.641
38.1	1 1/2		0.667	0.832	1.144	1.514	1.904	2.454	3.233
44.5	1 3/4				1.342	1.774	2.244	2.894	3.5
50.8	2				1.549	2.034	2.574	3.334	4.03
63.5	2 1/2				1.949	2.554	3.244	4.214	5.13
76.2	3				2.345	3.084	3.914	5.094	6.19
88.9	3 1/2				2.729	3.609	4.584	5.974	7.27
101.6	4					4.134	5.254	6.854	8.35
114.3	4 1/2					4.654	5.924	7.734	9.43
Form of Tube: Straight & U-bend & Finned & Coiled
Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81.
Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213

Some of the quality tests carried out by us includes:

Corrosion Test	Conducted only when specially requested by the client
Chemical Analysis	Test done as per required quality standards
Destructive / Mechanical Testing	Tensile \| Hardness \| Flattening \| Flare \| Flange
Reverse-bend and Re. flat tests	Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing	Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing	100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test	To check any evidence of air leakage
Visual Inspection	After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections

904L 6.00mm Seamless Stainless Tube For Heat Exchanger 0
