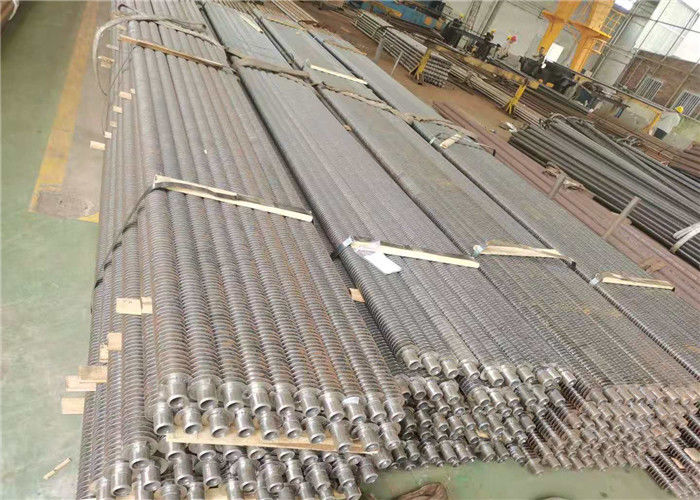

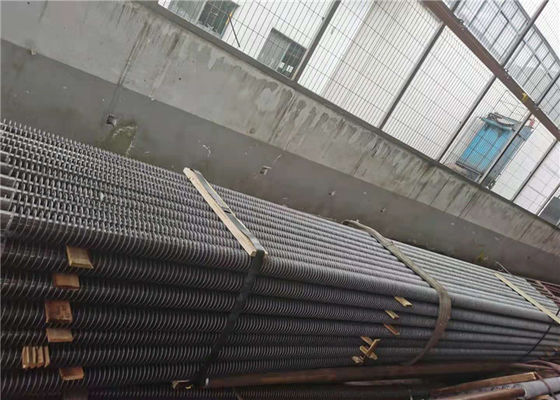

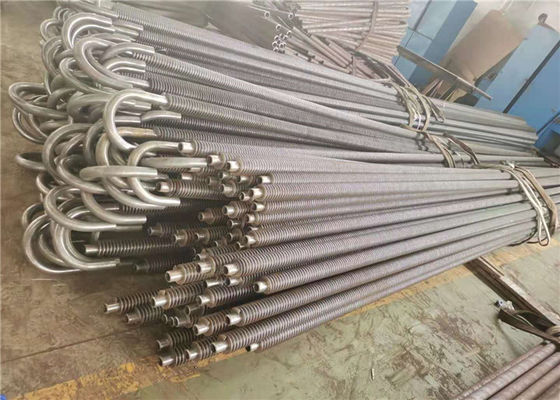

High Frequency Welding ASME SA179 Steel Boiler Finned Tube

Steel ASTM A210 A1 C Seamless Fin Tube, ASME SA 210 SA179 Boiler Finned Tube

Product Description

Fin tubes is an important part of boiler for utility/power stantion plant.

Our products include Fin Tube,Extruded Fin tube,Welding Fin tube,L/LH Type Fin Tube,H Type Fin tube with Material A179/Alu1060,stainless steel,copper,copper nicke and so on.

Features

1. High thermal efficiency for effective heat transfer
2. Compact design resulting in small quantities of materials used for heat transfer surfaces
3. Low installation cost and maintenance costs
4. Easy dismantling and easy, rapid cleaning
5. High performance with low hold-up volume
6. Compact modular design , Easy to install
7. High quality, long lifetime.

Concrete parameters as below:

Advantage

1.Increase the heat transfer area outside the pipe

The fin tube extends the heat transfer area outside the light tube, and the convection heat transfer surface is composed of the extended surface and the light tube surface. Under the same shape size, the heat transfer area is much larger than that of the light tube, thus significantly improving the heat transfer capacity on the outside of the tube and the heat transfer efficiency of the coal saver.

2. Rounding of heat exchanger structure

The fin tube bundle increases the heat transfer area in the volume of the unit body, and reduces the volume of the heat exchanger when the heat transfer is the same.

3. Enhance heat transfer conditions

Fins to form small labyrinth of flue gas velocity field is a high middle and low on both sides, and the influence of the temperature field, small flue middle velocity will be higher, can increase air flow disturbance between fins, cause the flow boundary layer separation and cycle development, and thinning fins on the flow boundary layer and thermal boundary layer, shorten the length of flow boundary layer, helps to destroy the boundary layer of laminar sublayer, which have the effect of strengthening heat transfer.

4. Reduce the flow resistance of the fluid outside the pipe

In the direction of the fins and scouring of the airflow direction of fin parallel case, although the staggered fins bundles per row of ventilation resistance is about 1.2 times of the light pipe, under the same conditions, but in the dimension of tube bank fin is relatively light tube bundle each row of the increase of heat exchange area is far greater than 1.2 times, thus can reduce the number of tube bundle row, making the decrease in the total heat exchanger Yin force.At the same time, as the heat transfer capacity of the fin tube is greatly improved, the fluid velocity outside the tube can be appropriately reduced under the condition of ensuring the heat transfer capacity, while the flow resistance is generally proportional to the square of the velocity, so reducing the fluid velocity can reduce heat exchanger resistance and save operation cost.

Reduce heating surface wear

When the gas-solid two-phase fluid scours the heating surface, when the solid particles imbedded in the flow flow through the heat exchanger surface, the impact and cutting heat exchanger surface will cause the wear of the heating surface, and the wear amount is directly proportional to the cubic square of the fluid velocity.As the heat transfer capacity of the fin tube is improved, the velocity of the fluid outside the tube can be reduced and the wear of the heating surface can be greatly reduced.At the same time, the structure characteristics of the fin tube can enable the fluid flowing through the fin tube to form flow conditions conducive to reducing wear to a certain extent, thus weakening the numeral damage caused by the impact and cutting of small solid particles on the heating surface.

Specifications

In order to ensure that these units met customer expectations, a series of in-process testing was performed in accordance with Fin Tube Products' quality control system. In addition, the products' quality was also verified by an onsite independent testing company.
