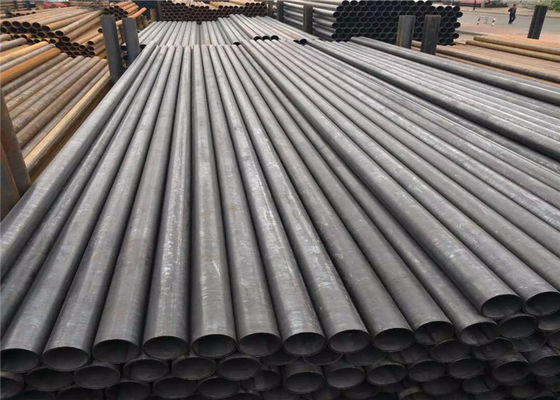

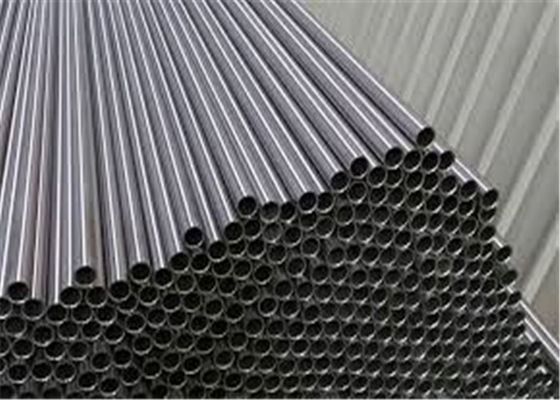

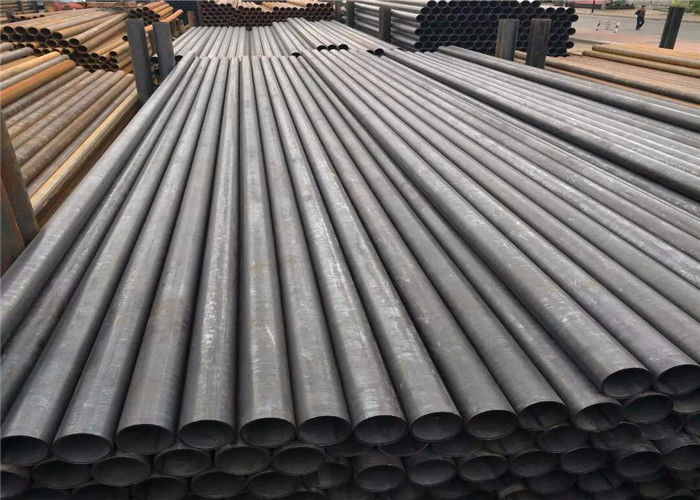

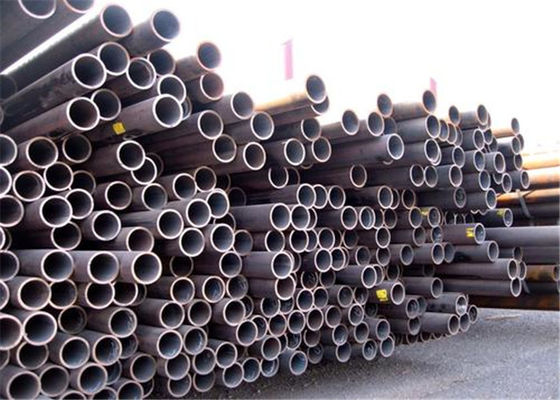

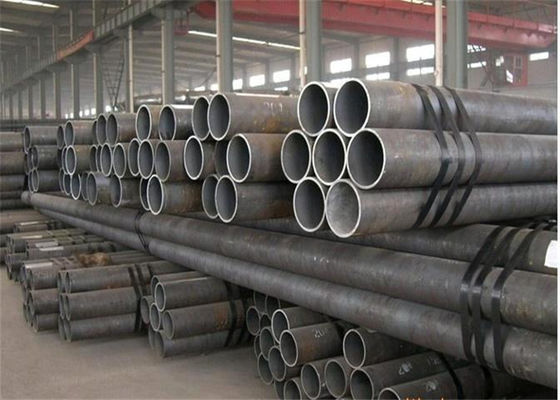

ASTM A106 Seamless Carbon Steel Boiler Steel Tube For High Temperature
Product Details
| STANDARD: | JIS, AiSi, ASTM, GB, DIN, EN | MATERIAL: | TP316 |
|---|---|---|---|
| SPECIFICATION: | 321 Stainless Steel Tube 321H Stainless Steel Tube | Package: | Standard Seaworthy Package |
| Processing: | Bending, Welding, Decoiling, Punching, Cutting, Moulding | Shape: | Round |
| Highlight |
ASTM A106 Boiler Steel Tube,ASTM A106 Carbon Steel Tube,ASTM A106 Cold Drawn Tube |
||
Product Description
ASTM A106 Seamless Carbon Steel pipe for high-temperature service
Description
ASTM A106 pipe is the standard specification for seamless carbon steel pipe for high-temperature service. Applications are transport gasses or fluids in refineries and boiler plant bearing high temperatures and pressures. Pipe produced according to ASTM A106 shall be suitable for bending, flanging, welding and other forming operations
Specification:
ASTM A106 Chemical composition:
| Steel Grade | C, max.% | Mn % | P, max | S, max | Si, min | Cr, max | Cu, max | Mo, max | Ni, max | V, max |
|---|---|---|---|---|---|---|---|---|---|---|
| Grade A | 0.25 | 0.27 - 0.93 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| Grade B | 0.30 | 0.29 - 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| Grade C | 0.35 | 0.29 - 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
ASTM A106 Mechanical Property:
| Grade | Tenssile Test MPa or N/mm2 | Remarks (Similar to JIS) | |
|---|---|---|---|
| MIn. Yield Point | Tensile Strength | ||
| Gr A | 205 | 330Min | (STPG370) |
| Gr B | 240 | 415Min | (STPG410) |
| Gr C | 275 | 485Min | (STPG480) |
ASTM A106 Dimension Tolerances:
| Pipe Type | Pipe Sizes | Tolerances | |
|---|---|---|---|
| Cold Drawn | OD | ≤48.3mm | ±0.40mm |
| ≥60.3mm | ±1%mm | ||
| WT | ±12.5% | ||
Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
Product Highlights
ASTM A106 Seamless Carbon Steel pipe for high-temperature service Description ASTM A106 pipe is the standard specification for seamless carbon steel pipe for high-temperature service. Applications are transport gasses or fluids in refineries and boiler plant bearing high temperatures and pressures. ...
