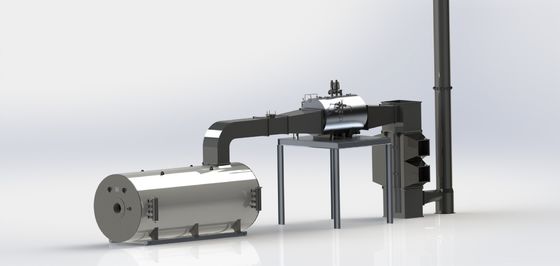

1.6MPa Flue Gas Recirculation System Organic Heat Carrier Boiler
Product Details
| Product Type: | YYL(W) Type Vertical(horizontal) Type Fuel Oil(gas) Heat Boiler | Rated Thermal Power: | 0.7MW-29MW |
|---|---|---|---|
| Design Pressure: | 0.6MPa-1.6MPa | Size: | Customized |
| Highlight |
1.6MPa flue gas boiler,1.6MPa Organic Heat Carrier Boiler,Recirculation Organic Heat Carrier Boiler |
||
Product Description
0.6-1.6MPa Horizontal Flue Gas rRecirculation System Organic Heat Carrier Boilers With Automatic Control System

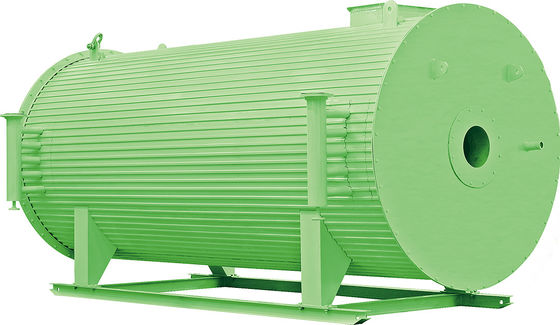

Organic heat carrier boiler introduction
There are two types of structure: verticalYY) and horizontal(YYW)The boiler surface adopts the tighteninq-tube-arrangement with spiral structure.
Organic heat carrier boiler (heat conduction oil boiler) is the use of organic heat carrier or heat medium oil as a heat transfer medium, among with hot oil circulation pump forced medium liquid loop, to transfer heat to heat equipment, then return to the furnace to the heating boiler. Organic heat carrier boiler has the advantages of high temperature, low pressure, heating temperature, uniform accurately. Is a kind of safety, high efficiency and energy saving heating equipment. The system has high heat utilization, convenient operation and maintenance.
Fuel applicable
Natural gas, LNG, CNG, light diesel oil, both natural gas and light diesel, city gas, heavy gas, biogas, etc.
Demands of our clients are capable for us to meet.
| Rated thermal power | 0.7MW-29MW(60xl04Cal/hr - 2500xl04Cal/hr) |
| Design pressure | 0.6MPa-1.6MPa |
Below is part of small boiler parameter for reference.
The chimney adopts the three-pass arrangement.
An air preheater or a water/steam transformer is arranged behind the boiler, reducing the temperature, improving the thermal efficiency of the boiler.
The quick opening door or the observation door is equipped for the convenience of checking the internal inspection and maintenance.
| 1 | The boiler adopts multi-coil and multi-return heat transfer structure with sufficient heating surface to ensure output and efficiency. |
| 2 | Boiler heat exchange surface pipe adopts automatic gas shielded welding, automatic real-time X-ray online 100% detection, quality stability and reliability are guaranteed. |
| 3 | The boiler adopts integral or quick installation structure, complete set, convenient installation and short cycle. |
| 4 | The burner adopts foreign imported famous brand, safe and reliable.Supporting auxiliaries, electrical appliances, instruments selected domestic famous brands, quality assurance. |
| 5 | The boiler adopts advanced electromechanical integration automatic control technology, which can realize automatic control. |
| 6 | With automatic temperature regulation, automatic ignition, and differential pressure, over temperature, flame out, leak detection, fan, oil pump overload and other multiple interlock protection functions. |
| 7 | Remote man-machine interaction and data sharing can be realized through the mobile Internet. |

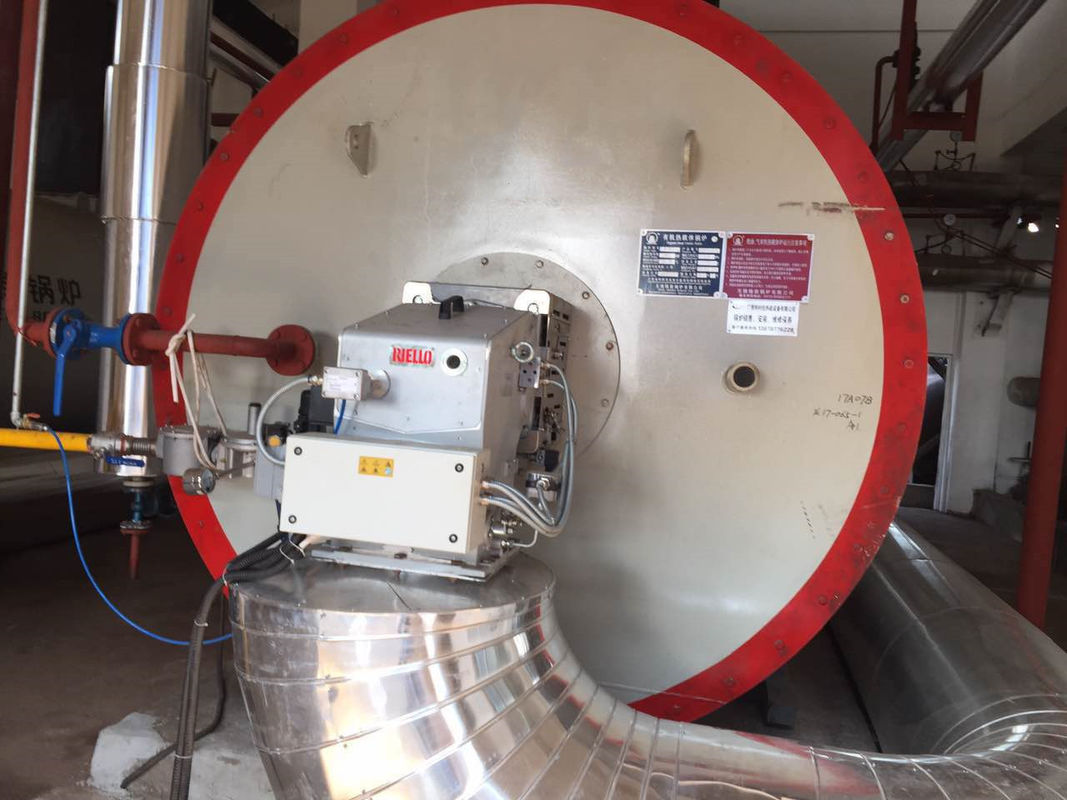

The burner
Imported name brand fuel combustion machine, safe and reliable, full automatic control.Scope of supply includes: usually the burner native, valve, regulating valve, filters, leak detection, fan, etc. According to the actual supply contract.
The circulatory system
Boiler circulating pump filling pump oil filter points ShangQi expansion tank of oil and gas storage tank sampling cooler.
Waste heat system (energy saving)
Boiler flue gas waste heat recovery according to factory waste heat utilization, matching of waste heat steam boiler, air heat exchanger, a variety of forms such as hot water economizer, heat according to customer's specific requirements to choose the optimal energy saving plan optimization combination, or a variety of general boiler thermal efficiency is higher than 96%.
Electrical control and instrumentation
Can choose according to need of conventional control, PLC touch screen control, DCS control technology. Through the mobile Internet technology to achieve human-computer interaction and remote data sharing. Choose the famous brand electric control components, safe and reliable.

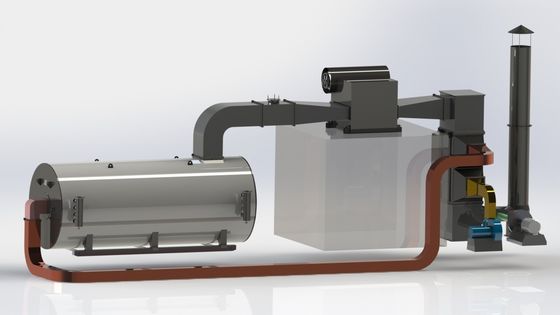

Flue gas recirculation system (FGR)
According to the requirements of the boiler to use environmental emissions, configuration of FGR flue gas recirculation system, low nitrogen (NOx) emissions standard requirements.
