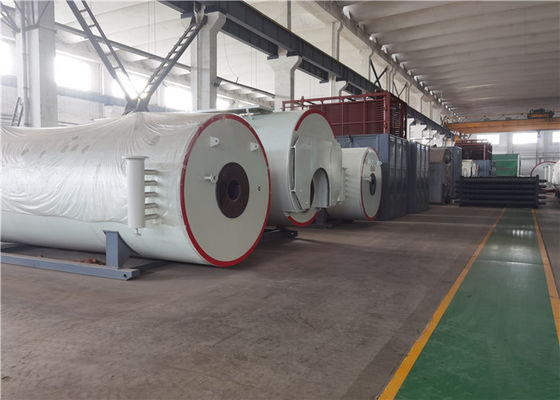

Horizontal 1.6MPa 60kCal/H Vertical Coal Fired Steam Boiler For Industrial Production
Product Details
| Fuel: | Gas And Oil | Type: | Horizontal Or Vertical |
|---|---|---|---|
| Media: | Organic Heat Transfer Material | Function: | Fire Tube |
| Pressure: | Low Pressure | Installation: | Packaged Boiler |
| Highlight |
60kCal/h coal fired boiler,1.6MPa coal fired steam boiler,horizontal coal steam boiler |
||
Product Description
High Temperature Organic Heat Carrier Boiler for Industrial Production YLLYGL Type Vertical Coal Fired
Product Type

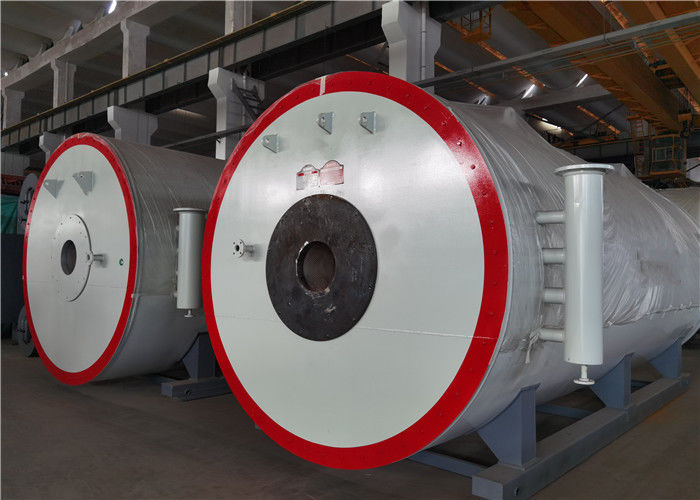

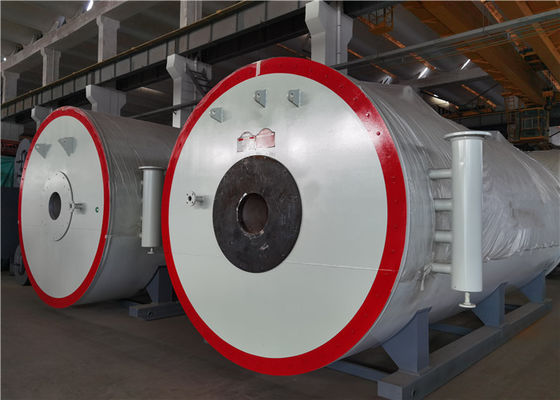

YYL(W) type vertical(horizontal) type fuel oil(gas) heat boiler
Product Range
- Rated thermal power: 0.7MW - 29MW (60xl04Cal/hr - 2500xl04Cal/hr)
- Design pressure: 0.6MPa - 1.6MPa
- Specific parameters are shown in Table6
Structural Features of This Series of Porducts
- There are two types of structure: vertical(YYL) and horizontal(YYW).

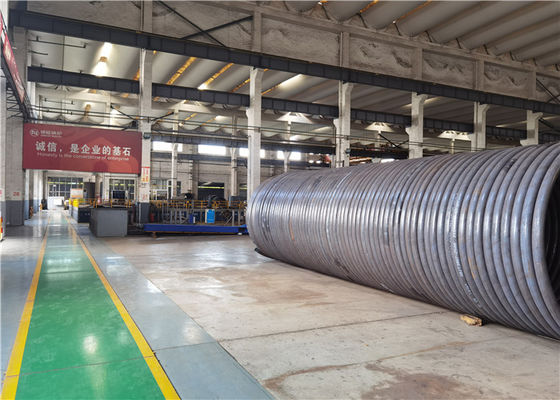

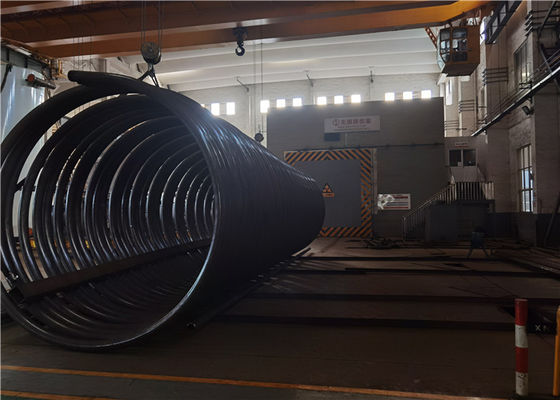

- The boiler surface adopts the tightening-tube-arrangement with spiral structure. The chimney adopts the three-pass arrangement.
- An air preheater or a water/steam transformer is arranged behind the boiler, reducing the temperature, improving the thermal efficiency of the boiler.
- The quick opening door or the observation door is equipped for the convenience of checking the internal inspection and maintenance.
| Model | YL(G)L-700SC II | YL(G)L-1000SC II | YL(G)L-1200SC II | YL(G)L-1400SC II | YL(G)L-1600SC II | YL(G)L-1900SC II |
| Heating capacityx104(kCal/h) | 60 | 80 | 100 | 120 | 140 | 160 |
| Design pressure (Mpa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Max. working temp.(°C) | 320 | 320 | 320 | 320 | 320 | 320 |
| Medium circulation (m3/h) | 80 | 100 | 100 | 100 | 100 | 160 |
| Supervisor diameter (DN) | 100 | 125 | 125 | 125 | 125 | 150 |
| Installed capacity (kW) | 30(25) | 44(41) | 53(49) | 60(56) | 60(56) | 81(77) |
| System thermal eficiency(%) | ≥82 | ≥82 | ≥82 | ≥82 | ≥82 | ≥82 |
| Applicable fuel | Class II biomass briquette fuel (forestry type), shape size 10x50, calorific value 3800-4000Kcal/kg | |||||
Oil/Gas Thermal Boiler System Diagram
Paremeters Table 6
