1400kw Coal Wood Biomass Pellet Fired Organic Heat Carrier Boiler
Product Details
| Fuel: | Coal | Type: | Vertical Or Horizontal |
|---|---|---|---|
| Standard: | ASME ,GB | Key Word: | Organic Heat Carrier Boiler |
| Core Components: | Boiler Body | Output: | Thermal Oil |
| Highlight |
1400kw Organic Heat Carrier Boiler,Biomass Organic Heat Carrier Boiler,1400kw Coal Fired Heat Carrier |
||
Product Description
YLW Coal Wood Biomass Pellet Fired Organic Heat Carrier Thermal Oil Boiler
Product Information
YLW series coal/biomass thermal oil boiler adopts square coil horizontal structure,chain grate automatic fuel feeding,FD/ID fan mechanical ventilation,slag remover for mechanical slag removing while running,the burning fuel enter into the chain grate through the fuel hoppe,then burn.The high-temperature flue gas is reflected to the front of the furnace by the rear arch and enters the furnace chamber.After radiation heat transfer by the radiation heating surface,it enters the convection heating surface for convection heat transfer,then enter into waste heat recovery boiler/air pre-heater,dust catcher,ID fan,finally discharged into air by chimney.

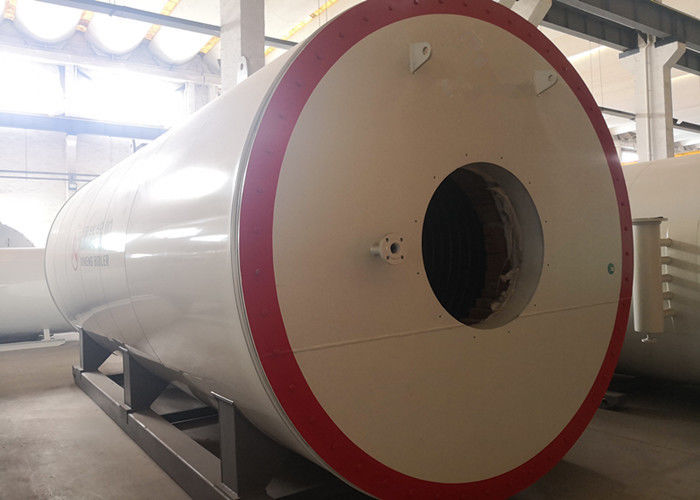

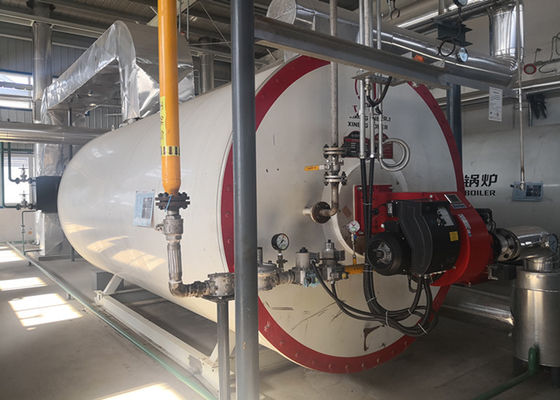

The YY(Q)W series gas fired thermal oil boiler designed with three passes coiled tubes, the tail heat surface form the wet back type smoke-transfer chamber structure, to improve heat efficiency. large access door design of boiler's front and rear panel,hammer paint coating, which makes the inspection more convenient.
Core Technology
1. Multi-loop coil design
2. Countercurrent heat transfer process
3. Over oil temperature/over smoke temperature/low flow alarm
4. Set up air preheater,waste heat boiler
5. New furnace arch with upside down"α"flue gas flow
6. Advanced and scientific fabric technology
