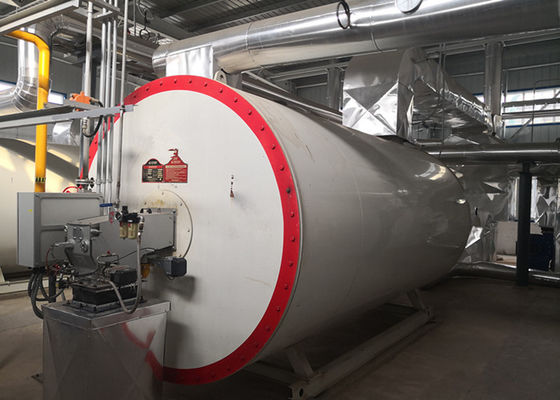

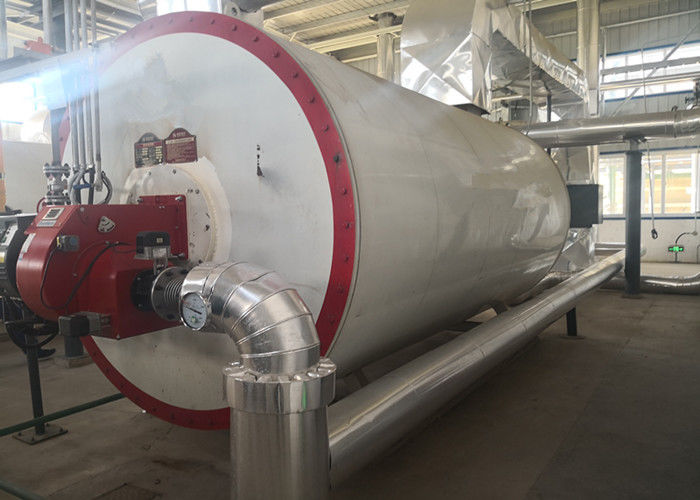

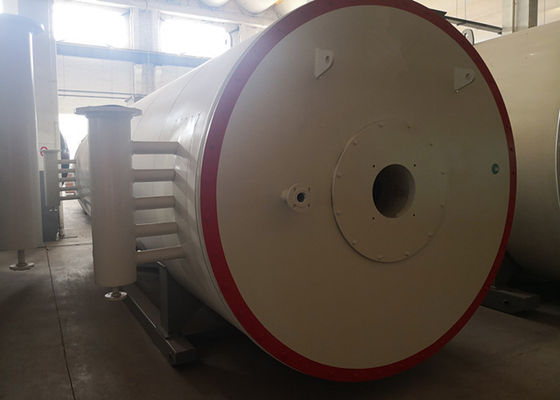

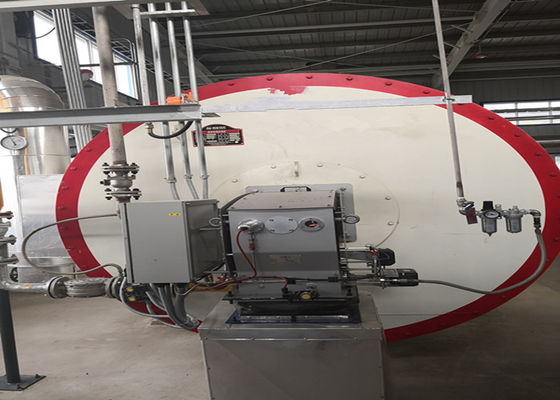

600000Kcal Vertical Organic Thermal Fluid Oil Boiler 1.0MPA
Product Details
| Style: | Horizontal | Usage: | Industrial |
|---|---|---|---|
| Condition: | New | Key Word: | Organic Heat Carrier Boiler |
| Fuel: | Gas-fired | Pressure: | Low Pressure |
| Highlight |
600000Kcal thermal oil boiler,Vertical thermal oil boiler,1.0MPA thermal fluid boiler |
||
Product Description
600000 Kcal Vertical Organic Heat Carrier Boiler, Thermal Oil Boiler Fuel Diesel Gas
Product Information
YY(Q)W series thermal oil boiler adopts horizontal chamber combustion three-coil structure,and its body is composed of outer coil,middle coil,inner coil and rear coil.USES:oil chemical industry/chemical fiber industry/wood processing/paper making/building materials/food industry,etc.
(1) Working medium is liquid circulation, lower working pressure, so pressure of whole system is lower.
(2) High temperature working temperature, can be used as high temperature thermal source.
(3) Supply stable heating temperature, can be adjusted accurately,stable running and maintain the best thermal efficiency during adjust periods.
(4) Can detect combustion process , adjust and control automatically.
(5) Fewer devices,save cost, do not need water treatment, drain valves, water store devices, high temperature water-feeding pump etc.
Core Technology
1. OIl cover fire structure with three pass.
2. Wet back structure.
3. Compact coil tube.
4. Over oil temperature/over smoke temperature/low flow alarm.
5. Design with air preheater or heat recovery boiler.
6. Front and rear big open door design.
Product Advantage
1. Three Coil Pipes
2. Wet Back Structure
3. External oil collection box
4. Easy to Disassemble Door
Technical Parameter
| Boiler Model | YY(Q)W-700Y(Q) | YY(Q)W-1400Y(Q) | YY(Q)W-3000Y(Q) | YY(Q)W-3500Y(Q) | YY(Q)W-4200Y(Q) | YY(Q)W-5600Y(Q) | YY(Q)W-7000Y(Q) | |
| Rated thermal power(KW) | 700 | 1400 | 3000 | 3500 | 4200 | 5600 | 7000 | |
| Rated working pressure(Mpa) | 0.8/1.0 | |||||||
| Thwemal oil outlet/Inlet feeding temperature(℃) | 280/250;320/290 | |||||||
| Thermal efficiency(%) | >96 | |||||||
| Fuel type | Natural gas/Light diesel oil | |||||||
| Fuel consumption | Light diesel oil(Kg/h) | 61.3 | 122.6 | 249.2 | 305.6 | 367.5 | 489.6 | 612.3 |
| Natural gas(Nm3/h) | 73.6 | 147.1 | 296.4 | 366.8 | 436.6 | 586.8 | 726.9 | |
| Max transportation weight(t) | 3.0 | 4.0 | 10 | 10.2 | 16.5 | 23.6 | 28 | |
Remark: we manufacture different series of thermaml oil boiler , the fuel can be coal, biomass, wood, oil, gas , horizontal or vertical structure, automatic or manual operation, different capacity, working pressure to meet different requirement, welcome your inquiry and learn more about thermal oil heater/ boiler .
