25mm Diameter ASME SA106 Heat Exchanger Seamless Boiler Tubes

Product Details:

Place of Origin:	China(Mainland)
Brand Name:	HDT
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A213/ASME SA213 T11, T22, T1, T23, T5, T9.T91 , T92

Payment & Shipping Terms:

Minimum Order Quantity:	5T
Price:	800 - 9000 USD / ton
Packaging Details:	seaworthy packing for exporting
Delivery Time:	60-75days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	About 10000 ton / month

Contact Now

Detailed Product Description

Steel Grade:	ASTM A213/ASME SA213 T11, T22, T1, T23, T5, T9.T91 , T92	Surface:	Bright Annealed
Standard:	ASTM A213/SMES SA213	Application:	Boiler&heat Exchanger, Superheater, Reheater, Air Preheater, Economizer
OD:	1/4'' TO 5''	NDT:	ET/UT/HT
Highlight:	ASME SA106 seamless Boiler Tubes , 25mm seamless Boiler Tubes , ASME SA106 heat exchanger Tubes

ASME SA-179M/ASME SA-106 Seamless carbon Steel Pipe For Boiler Heat Exchanger

Hua Dong Energy Technology exports steel boiler pipe(seamless steel pipe and welded steel pipe) according to the production methods, steel boiler pipe specifications with overall dimensions (such as the diameter or length) and the wall thickness, steel boiler pipe can be used in the pipeline, thermal technology equipment, industrial machinery, petroleum geological exploration, containers, chemical industry, and other special purpose.


Carbon	Chromiun	Low Temperature	Stainless Steel		Duplex	Copper& Bronze	Titanium	Ni-Alloy
SA178-A	SA213-T1	SA333-Gr.1	SA213	TP316L	A789-S31803	SB111-C70600	SB338-GR.1	SB163	NO2200
SA178-C	SA213-T11	SA333-Gr.3	SA249	TP316H	A789-S32205	SB111-C71500	SB338-GR.2	SB167	NO2201
SA179	SA213-T12	SA333-Gr.6	SA268	TP316Ti	A789-S32750	SB111-C71640	SB338-GR.5	SB444	NO8020
SA192	SA213-T22	SA333-Gr.7	SA269	TP316LN	A789-S32760	SB111-C68700	SB338-GR.7	SB514	NO6022
SA209-T1	SA213-T5	SA333-Gr.8	SA376	TP321	A789-S32707	SB111-C44300	SB338-GR.9	SB619	N10276
SA209-T1a	SA213-T9	SA334-Gr.1	TP304	TP321H	A789-S32304		SB338-GR.12	SB622	NO4400
SA209-T1b	SA213-T91	SA334-Gr.3	TP304L	TP347	A789-S31500			SB626	NO6600
SA210-A1		SA334-Gr.6	TP304H	TP347H	S31254			SB674	NO6601
SA210-C		SA334-Gr.7	TP304N	TP405	254MA			SB677	NO6625
SA214		SA334-Gr.8	TP310H	TP409	17-4PH			SB704	NO690
SA513 MT 1010			TP310S	TP410	17-7PH			SB705	NO8800
SA513 MT 1015			TP309S	TP430	15-7PH			N1001	NO8810
SA513 MT 1020			TP317	TP439				N10665	NO8811
			TP317L	TP444				N10675	NO8825
			TP348	TP446				TP904L
			TP347HFG

Tube Sizes for Heat Exchangers & Condensers & Boiler

Outside Diameter			BWG
		25	22	20	18	16	14	12	10
			Wall Thickness mm
		0.508	0.71	0.89	1.24	1.65	2.11	2.77	3.40
mm	inch		Weight kg/m
6.35	1/4	0.081	0.109	0.133	0.174	0.212
9.53	3/8	0.126	0.157	0.193	0.257	0.356	0.429
12.7	1/2		0.214	0.263	0.356	0.457	0.612	0.754
15.88	5/8		0.271	0.334	0.455	0.588	0.796	0.995
19.05	3/4		0.327	0.405	0.553	0.729	0.895	1.236
25.4	1		0.44	0.546	0.75	0.981	1.234	1.574	2.05
31.75	1 1/4		0.554	0.688	0.947	1.244	1.574	2.014	2.641
38.1	1 1/2		0.667	0.832	1.144	1.514	1.904	2.454	3.233
44.5	1 3/4				1.342	1.774	2.244	2.894	3.5
50.8	2				1.549	2.034	2.574	3.334	4.03
63.5	2 1/2				1.949	2.554	3.244	4.214	5.13
76.2	3				2.345	3.084	3.914	5.094	6.19
88.9	3 1/2				2.729	3.609	4.584	5.974	7.27
101.6	4					4.134	5.254	6.854	8.35
114.3	4 1/2					4.654	5.924	7.734	9.43

ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Chemical Composition and Mechanical Properties

Grade	Chemical Composition%
Grade	C	Si	Mn	P, S Max	Cr	Mo	Ni Max	V	Al Max
T2	0.10~0.20	0.10~0.30	0.30~0.61	0.025	0.50~0.81	0.44~0.65	–	–	–
T11	0.05~0.15	0.50~1.00	0.30~0.60	0.025	1.00~1.50	0.44~0.65	–	–	–
T12	0.05~0.15	Max 0.5	0.30~0.61	0.025	0.80~1.25	0.44~0.65	–	–	–
T22	0.05~0.15	Max 0.5	0.30~0.60	0.025	1.90~2.60	0.87~1.13	–	–	–
T91	0.07~0.14	0.20~0.50	0.30~0.60	0.02	8.0~9.5	0.85~1.05	0.4	0.18~0.25	0.015
T92	0.07~0.13	Max 0.5	0.30~0.60	0.02	8.5~9.5	0.30~0.60	0.4	0.15~0.25	0.015
Grade	Chemical Composition%				Mechanical Properties
Grade	W	B	Nb	N	T. S	Y. P	Elongation	Hardness
T2	–	–	–	–	≥ 415MPa	≥ 205MPa	≥ 30%	163HBW(85HRB)
T11	–	–	–	–	≥ 415MPa	≥ 205MPa	≥ 30%	163HBW(85HRB)
T12	–	–	–	–	≥ 415MPa	≥ 220MPa	≥ 30%	163HBW(85HRB)
T22	–	–	–	–	≥ 415MPa	≥ 205MPa	≥ 30%	163HBW(85HRB)
T91	–	–	0.06~0.10	0.03~0.07	≥ 585MPa	≥ 415MPa	≥ 20%	250HBW(25HRB)
T92	1.50~2.00	0.001~0.006	0.04~0.09	0.03~0.07	≥ 620MPa	≥ 440MPa	≥ 20%	250HBW(25HRB)

ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Tolerance

Outside Diameter	OD Tolerance	WT Tolerance	Ovality Tolerance	Cut Length Tolerance
OD≤ 12, 7 mm	± 0, 13 mm	± 15 %	–	+ 3, 18 mm, – 0 mm
12, 7 mm < OD ≤ 38, 1 mm	± 0, 13 mm	± 10 %	max, 1, 65 mm	+ 3, 18 mm, – 0 mm
38, 1 mm < OD ≤ 88, 9 mm	± 0, 25 mm	± 10 %	max, 2, 41 mm	+ 4, 76 mm, – 0 mm

T11 Alloy Steel Tube for power generation, petroleum, and other high temperature services
T22 Alloy Steel Tube for power generation, petroleum, and other high temperature services
T5 Alloy Steel Tube for petroleum
T9 Alloy Steel Tube for petroleum
T91 Alloy Steel Tube for power generation
T92 Alloy Steel Tube for power generation
T1 Alloy Steel Tube for boiler replacement and repair
SA209 T1 tube for Manufacturing Boilers
ASTM A213/ ASME SA213 T5 Alloy Steel Tube for Superheaters
ASTM A213/ ASME SA213 T5 Alloy Steel Tube for Heat Exchangers

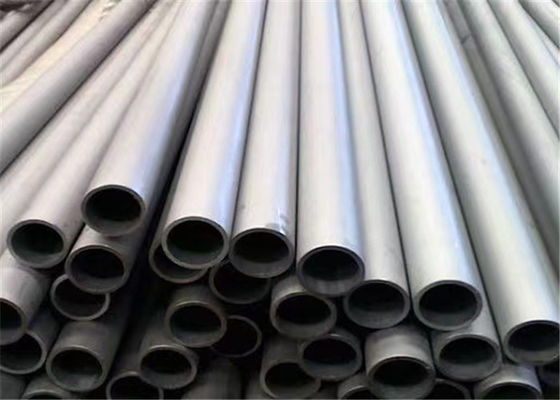

25mm Diameter ASME SA106 Heat Exchanger Seamless Boiler Tubes 0

Certification

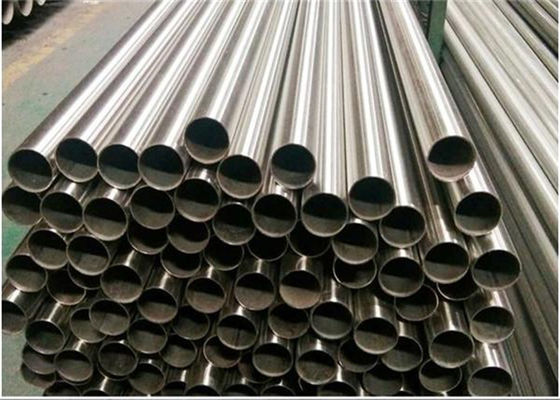

25mm Diameter ASME SA106 Heat Exchanger Seamless Boiler Tubes 1

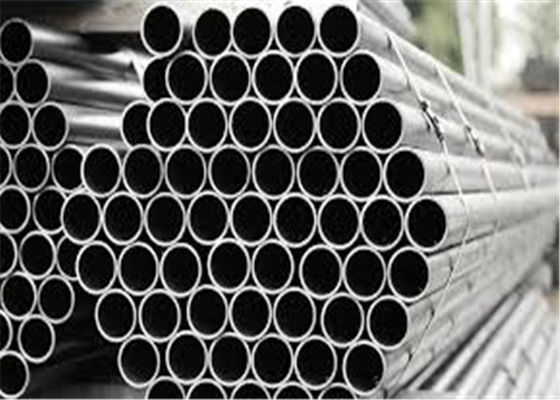

25mm Diameter ASME SA106 Heat Exchanger Seamless Boiler Tubes 2
