GB5310 EN10216-1 Bright Annealed Superheater Seamless Boiler Tubes

Brand Name: HDT
Model Number: ASTM A213/ASME SA213 T11, T22, T1, T23, T5, T9.T91 , T92
Place of Origin: China(Mainland)
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Minimum Order Quantity: 5T
Price: 800 - 9000 USD / ton
Supply Ability: About 10000 ton / month
Tags

erw boiler tubes

asme seamless pipe

ss boiler tubes

Product Details

Steel Grade: ASTM A213/ASME SA213 T11, T22, T1, T23, T5, T9.T91 , T92 Surface: Bright Annealed
Standard: ASTM A213/SMES SA213 Application: Boiler&heat Exchanger, Superheater, Reheater, Air Preheater, Economizer
OD: 1/4'' TO 5'' NDT: ET/UT/HT
Highlight

EN10216-1 superheater Boiler Tubes

,

EN10216-1 Seamless Boiler Tubes

,

Bright Annealed Seamless Boiler Tubes

Product Description

ASME SA-210M/GB5310/EN10216-1 Seamless Medium Carbon Steel Boiler and Superheater Tubes



Hua Dong Energy Technology exports steel boiler pipe(seamless steel pipe and welded steel pipe) according to the production methods, steel boiler pipe specifications with overall dimensions (such as the diameter or length) and the wall thickness, steel boiler pipe can be used in the pipeline, thermal technology equipment, industrial machinery, petroleum geological exploration, containers, chemical industry, and other special purpose.






Carbon Chromiun Low Temperature Stainless Steel Duplex Copper& Bronze Titanium Ni-Alloy
SA178-A SA213-T1 SA333-Gr.1 SA213 TP316L A789-S31803 SB111-C70600 SB338-GR.1 SB163 NO2200
SA178-C SA213-T11 SA333-Gr.3 SA249 TP316H A789-S32205 SB111-C71500 SB338-GR.2 SB167 NO2201
SA179 SA213-T12 SA333-Gr.6 SA268 TP316Ti A789-S32750 SB111-C71640 SB338-GR.5 SB444 NO8020
SA192 SA213-T22 SA333-Gr.7 SA269 TP316LN A789-S32760 SB111-C68700 SB338-GR.7 SB514 NO6022
SA209-T1 SA213-T5 SA333-Gr.8 SA376 TP321 A789-S32707 SB111-C44300 SB338-GR.9 SB619 N10276
SA209-T1a SA213-T9 SA334-Gr.1 TP304 TP321H A789-S32304 　 SB338-GR.12 SB622 NO4400
SA209-T1b SA213-T91 SA334-Gr.3 TP304L TP347 A789-S31500 　 　 SB626 NO6600
SA210-A1 　 SA334-Gr.6 TP304H TP347H S31254 　 　 SB674 NO6601
SA210-C 　 SA334-Gr.7 TP304N TP405 254MA 　 　 SB677 NO6625
SA214 　 SA334-Gr.8 TP310H TP409 17-4PH 　 　 SB704 NO690
SA513 MT 1010 　 　 TP310S TP410 17-7PH 　 　 SB705 NO8800
SA513 MT 1015 　 　 TP309S TP430 15-7PH 　 　 N1001 NO8810
SA513 MT 1020 　 　 TP317 TP439 　 　 　 N10665 NO8811
　 　 　 TP317L TP444 　 　 　 N10675 NO8825
　 　 　 TP348 TP446 　 　 　 TP904L 　
　 　 　 TP347HFG 　 　 　 　 　 　





Tube Sizes for Heat Exchangers & Condensers & Boiler

Outside Diameter 　 BWG
25 22 20 18 16 14 12 10
　 Wall Thickness mm
0.508 0.71 0.89 1.24 1.65 2.11 2.77 3.40
mm inch 　 Weight kg/m
6.35 1/4 0.081 0.109 0.133 0.174 0.212 　 　 　
9.53 3/8 0.126 0.157 0.193 0.257 0.356 0.429 　 　
12.7 1/2 　 0.214 0.263 0.356 0.457 0.612 0.754 　
15.88 5/8 　 0.271 0.334 0.455 0.588 0.796 0.995 　
19.05 3/4 　 0.327 0.405 0.553 0.729 0.895 1.236 　
25.4 1 　 0.44 0.546 0.75 0.981 1.234 1.574 2.05
31.75 1 1/4 　 0.554 0.688 0.947 1.244 1.574 2.014 2.641
38.1 1 1/2 　 0.667 0.832 1.144 1.514 1.904 2.454 3.233
44.5 1 3/4 　 　 　 1.342 1.774 2.244 2.894 3.5
50.8 2 　 　 　 1.549 2.034 2.574 3.334 4.03
63.5 2 1/2 　 　 　 1.949 2.554 3.244 4.214 5.13
76.2 3 　 　 　 2.345 3.084 3.914 5.094 6.19
88.9 3 1/2 　 　 　 2.729 3.609 4.584 5.974 7.27
101.6 4 　 　 　 　 4.134 5.254 6.854 8.35
114.3 4 1/2 　 　 　 　 4.654 5.924 7.734 9.43





ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Chemical Composition and Mechanical Properties

Grade Chemical Composition%
C Si Mn P, S Max Cr Mo Ni Max V Al Max
T2 0.10~0.20 0.10~0.30 0.30~0.61 0.025 0.50~0.81 0.44~0.65 – – –
T11 0.05~0.15 0.50~1.00 0.30~0.60 0.025 1.00~1.50 0.44~0.65 – – –
T12 0.05~0.15 Max 0.5 0.30~0.61 0.025 0.80~1.25 0.44~0.65 – – –
T22 0.05~0.15 Max 0.5 0.30~0.60 0.025 1.90~2.60 0.87~1.13 – – –
T91 0.07~0.14 0.20~0.50 0.30~0.60 0.02 8.0~9.5 0.85~1.05 0.4 0.18~0.25 0.015
T92 0.07~0.13 Max 0.5 0.30~0.60 0.02 8.5~9.5 0.30~0.60 0.4 0.15~0.25 0.015
Grade Chemical Composition% Mechanical Properties
W B Nb N T. S Y. P Elongation Hardness
T2 – – – – ≥ 415MPa ≥ 205MPa ≥ 30% 163HBW(85HRB)
T11 – – – – ≥ 415MPa ≥ 205MPa ≥ 30% 163HBW(85HRB)
T12 – – – – ≥ 415MPa ≥ 220MPa ≥ 30% 163HBW(85HRB)
T22 – – – – ≥ 415MPa ≥ 205MPa ≥ 30% 163HBW(85HRB)
T91 – – 0.06~0.10 0.03~0.07 ≥ 585MPa ≥ 415MPa ≥ 20% 250HBW(25HRB)
T92 1.50~2.00 0.001~0.006 0.04~0.09 0.03~0.07 ≥ 620MPa ≥ 440MPa ≥ 20% 250HBW(25HRB)

ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Tolerance

Outside Diameter OD Tolerance WT Tolerance Ovality Tolerance Cut Length Tolerance
OD≤ 12, 7 mm ± 0, 13 mm ± 15 % – + 3, 18 mm, – 0 mm
12, 7 mm < OD ≤ 38, 1 mm ± 0, 13 mm ± 10 % max, 1, 65 mm + 3, 18 mm, – 0 mm
38, 1 mm < OD ≤ 88, 9 mm ± 0, 25 mm ± 10 % max, 2, 41 mm + 4, 76 mm, – 0 mm
  • T11 Alloy Steel Tube for power generation, petroleum, and other high temperature services
  • T22 Alloy Steel Tube for power generation, petroleum, and other high temperature services
  • T5 Alloy Steel Tube for petroleum
  • T9 Alloy Steel Tube for petroleum
  • T91 Alloy Steel Tube for power generation
  • T92 Alloy Steel Tube for power generation
  • T1 Alloy Steel Tube for boiler replacement and repair
  • SA209 T1 tube for Manufacturing Boilers
  • ASTM A213/ ASME SA213 T5 Alloy Steel Tube for Superheaters
  • ASTM A213/ ASME SA213 T5 Alloy Steel Tube for Heat Exchangers

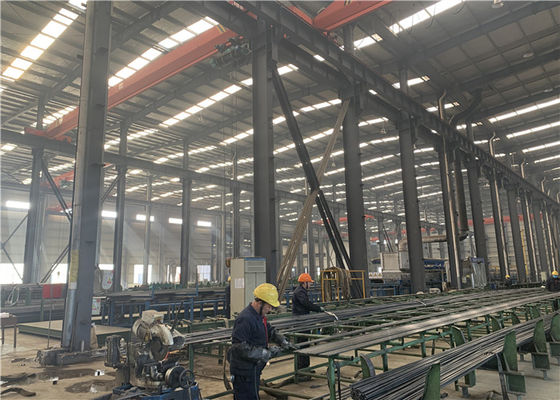

GB5310 EN10216-1 Bright Annealed Superheater Seamless Boiler Tubes 0



Certification

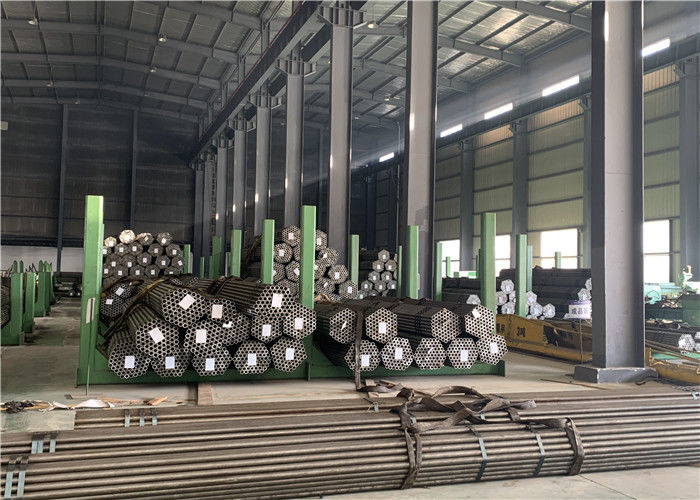

GB5310 EN10216-1 Bright Annealed Superheater Seamless Boiler Tubes 1

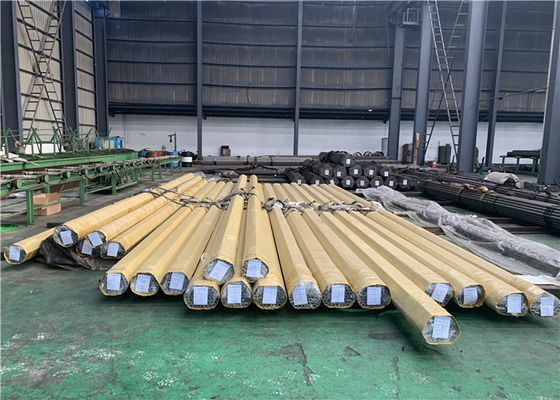

GB5310 EN10216-1 Bright Annealed Superheater Seamless Boiler Tubes 2



Product Highlights

ASME SA-210M/GB5310/EN10216-1 Seamless Medium Carbon Steel Boiler and Superheater Tubes Hua Dong Energy Technology exports steel boiler pipe(seamless steel pipe and welded steel pipe) according to the production methods, steel boiler pipe specifications with overall dimensions (such as the diameter ...
