Cold Drawn Seamless Stainless Tube TP304 Bright Annealed For Superheater
Product Details
| Standard: | ASTM, EN, DIN | Finishing: | Annealed & Pickled/Bright Annealed |
|---|---|---|---|
| Application: | Boiler&Heat Exchanger, Energy, Petrochemical, Mining, Food, Paper, Gas And Fluid Industry | Shape: | Round Seamless |
| OD: | OD: 1/8" To 10" | Thickness: | SCH10-SCH160 |
| Highlight |
Superheater Seamless Stainless Tube,Cold Drawn Seamless Stainless Tube TP304,TP304 seamless steel pipe |
||
Product Description

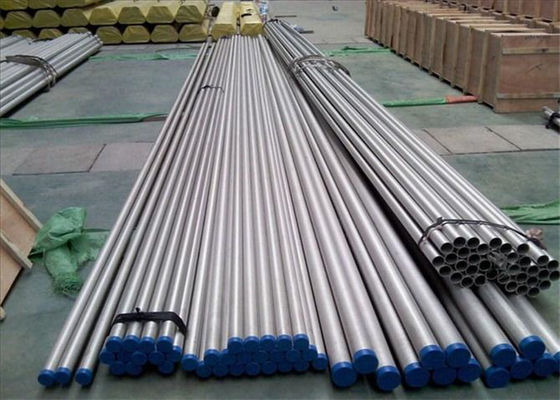

Cold Drawn Seamless Stainless Tube TP304, TP310 Bright Annealed For Superheater
Cold Drawn Seamless Stainless Tube TP304, TP310 Bright Annealed For Superheater
| Item | Description | |
| Basic Information | Material Grade | TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc |
| Outer Diameter | 6.00mm - 48.00mm | |
| Wall Thickness | 0.71mm - 2.11mm | |
| Length | Normally fixed length 6m , can as per customer’s requirement | |
| Standard | ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect . | |
| Process Method | Cold Drawn or Cold Rolled | |
ASME SA213 / A213 : Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler , Superheater and Stainless Steel Heat Exchanger Tubes .
ASTM A249 / A249M : Standard Specification for Welded Austenitic Steel Boiler , Superheater Heat-Exchanger , and Condenser Tubes .
Application :
1 . For fluid & gas transport
2 . Petrochemical
3 . Environmental protection
4 . Structure & Machining
5 . Electricity
6 . Instrument industry etc
| Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG | |||||
| SWG | Wall Thickness | SWG | Wall Thickness | ||
| 0 | 0.324 | 8.23 | 21 | 0.032 | 0.81 |
| 1 | 0.3 | 7.62 | 22 | 0.028 | 0.71 |
| 2 | 0.276 | 7.01 | 23 | 0.024 | 0.61 |
| 3 | 0.252 | 6.4 | 24 | 0.022 | 0.56 |
| 4 | 0.232 | 5.89 | 25 | 0.02 | 0.51 |
| 5 | 0.212 | 5.38 | 26 | 0.018 | 0.46 |
| 6 | 0.192 | 4.88 | 27 | 0.0164 | 0.42 |
| 7 | 0.176 | 4.47 | 28 | 0.0148 | 0.38 |
| 8 | 0.16 | 4.06 | 29 | 0.0136 | 0.35 |
| 9 | 0.144 | 3.66 | 30 | 0.0124 | 0.31 |
| 10 | 0.128 | 3.25 | 31 | 0.0116 | 0.29 |
| 11 | 0.116 | 2.95 | 32 | 0.0108 | 0.27 |
| 12 | 0.104 | 2.64 | 33 | 0.01 | 0.25 |
| 13 | 0.092 | 2.34 | 34 | 0.0092 | 0.23 |
| 14 | 0.08 | 2.03 | 35 | 0.0084 | 0.21 |
| 15 | 0.072 | 1.83 | 36 | 0.0076 | 0.19 |
| 16 | 0.064 | 1.63 | 37 | 0.0068 | 0.17 |
| 17 | 0.056 | 1.42 | 38 | 0.006 | 0.15 |
| 18 | 0.048 | 1.22 | 39 | 0.0052 | 0.13 |
| 19 | 0.04 | 1.02 | 40 | 0.0048 | 0.12 |
| 20 | 0.036 | 0.91 | |||
EN10216-5 Standard Chemical Composition :
| Steel Grade | C | Si | Mn | P | S | N | Cr | Cu | Mo | Nb | Ni | Ti | Others | |
| max | max | max | ||||||||||||
| Steel Name | Steel Number | |||||||||||||
| X2CrNi19-11 | 1.4306 | 0.03 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 18.00 - 20.00 | - | - | - | 8.00 - 10.00 | - | - |
| X5CrNi18-10 | 1.4301 | 0.07 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 17.00 - 19.50 | - | - | - | 8.00 - 10.50 | - | - |
| X6CrNiTi18-10 | 1.4541 | 0.08 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 17.00 - 19.00 | - | - | - | 9.00 - 12.00 | 5xC to 0.70 | - |
| X6CrNiNb18-10 | 1.4550 | 0.08 | ≤1 | ≤2 | 0.04 | 0.015 | - | 17.00 - 19.00 | - | - | 10xC to 1.00 | 9.00 - 12.00 | - | - |
| X2CrNiMo17-12-2 | 1.4404 | 0.03 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.00 - 13.00 | - | - |
| X5CrNiMo17-12-2 | 1.4401 | 0.07 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.00 - 13.00 | - | - |
| X6CrNiMoTi17-12-2 | 1.4571 | 0.08 | ≤1 | ≤2 | 0.04 | 0.015 | - | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.50 - 13.50 | 5xC to 0.70 | - |
ASTM A213 / A213M Standard Chemical Composition :
| Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
| (C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. | Bal. | Bal. |
| (Cu) Copper | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A | N/A |
ASTM A312 / A312M Standard Chemical Composition :
| Elements | 304L(wt%) | 316L (wt%) |
| (C) Carbon, max | 0.035 | 0.035 |
| (Mn) Manganese, max | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 |
| (Ni) Nickel | 8.0 - 13.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. |
| (Cu) Copper | N/A | N/A |
| (N) Nitrogen | N/A | N/A |
