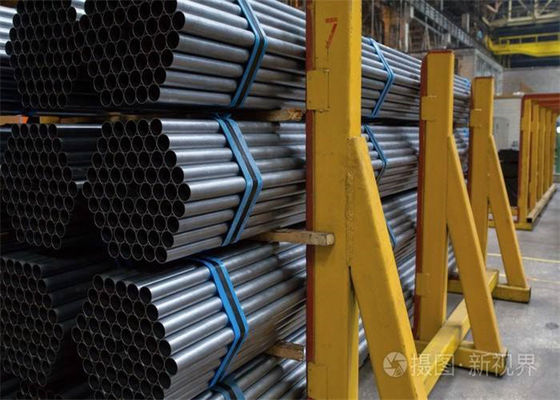

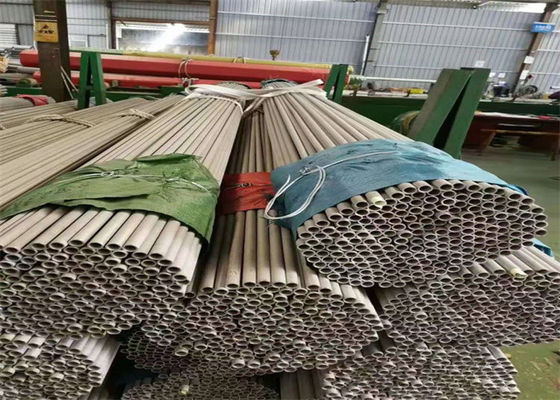

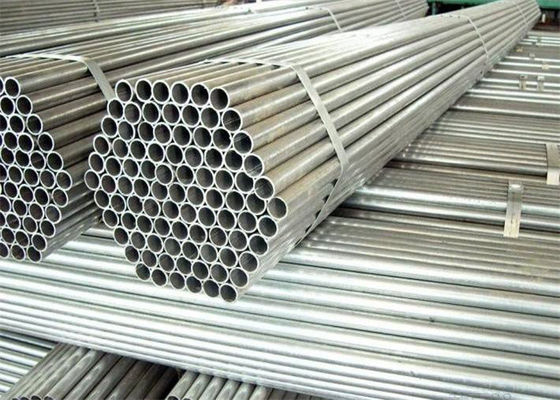

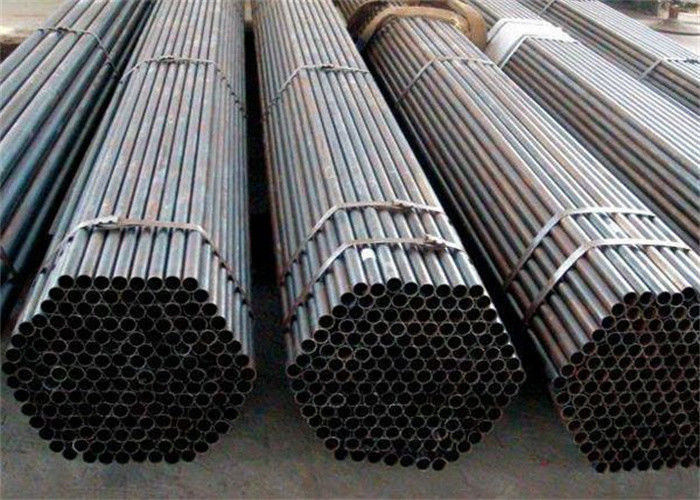

ASME U Seamless Carbon Steel Boiler Tube ST 37.8 Carbon Steel Pipe
Product Details
| Product Name: | Carbon Steel Seamless Boiler Tube | Application: | For High, Middle, Low Pressure Boiler And Pressure Purpose |
|---|---|---|---|
| Standard: | DIN17175 | Material: | ST35.8 |
| Highlight |
ASME Carbon Steel Boiler Tube,ST 37.8 Carbon Steel Boiler Tube,ST 37.8 Carbon Steel Pipe |
||
Product Description
ASME U Seamless Carbon Steel Boiler Tube St 37.8 Carbon Steel Pipe
Production Standard: GB/T20409-2006
Internal Thread High pressure boiler Rifled tube is one kind of endophragm processes the spiral line the seamless steel pipe. Main application in on capacity utility boiler's water cooling wall. Usually with the fluorescent tube which uses compares, it can maintain the nuclear ebullition condition under the high fever load operating condition, thus avoids sending the filming condition ebullition, prevents the pipe to burn out, lengthens the pipe service life.
SteelGrade:20G,20MNG,25MNG,12CRMOG,15CRMOG,SA210A1,SA210C,SA213T2/T12,WB36,T91,T11,
P11,P22,P92,P5,P9,R102,CR5MO,16MO3,12CR2MOWVTIB
Threads Number:4ribs/6ribs/8ribs/12ribs
Chemical&Mechanical parameters
| Grade | C | Mn | Si | Cr | Mo | S | P |
| 20G | 0.17~0.23 | 0.35~0.65 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 20MnG | 0.17~0.23 | 0.70~1.00 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 25MnG | 0.22~0.29 | 0.70~1.00 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 12CrMoG | 0.08~0.15 | 0.40~0.70 | 0.17~0.37 | 0.40~0.70 | 0.40~0.55 | ≤0.020 | ≤0.025 |
| 15CrMoG | 0.12~0.18 | 0.40~0.70 | 0.17~0.37 | 0.80~1.10 | 0.40~0.55 | ≤0.020 | ≤0.025 |
| SA-210A1 | ≤0.27 | ≤0.93 | ≥0.10 | --- | --- | ≤0.035 | ≤0.035 |
| SA-210C | ≤0.35 | 0.29~1.06 | ≥0.10 | --- | --- | ≤0.035 | ≤0.035 |
| SA-213T2 | 0.10~0.20 | 0.30~0.61 | 0.10~0.30 | 0.50~0.81 | 0.44~0.65 | ≤0.025 | ≤0.025 |
| SA-213T12 | 0.05~0.15 | 0.30~0.61 | ≤0.50 | 0.80~1.25 | 0.44~0.65 | ≤0.025 | ≤0.025 |
| Grade | T(MPa) | Y(MPa) | E(%) | Hardness |
| 20G | 410~550 | 245 | ≥24 | --- |
| 20MnG | ≥415 | ≥240 | ≥22 | --- |
| 25MnG | ≥485 | ≥275 | ≥20 | --- |
| 12CrMoG | 410~560 | ≥205 | ≥21 | --- |
| 15CrMoG | 440~640 | ≥235 | ≥21 | --- |
| SA-210C | ≥415 | ≥255 | ≥30 | ≤143HBW |
| SA-210A1 | ≥485 | ≥275 | ≥30 | ≤179HBW |
| SA-213T2 | ≥415 | ≥205 | ≥30 | ≤163HBW |
| SA-213T12 | ≥415 | ≥220 | ≥30 | ≤163HBW |
| Tube Sizes for Heat Exchangers & Condensers & Boiler | |||||||||||
| Outside Diameter | BWG | ||||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||||
| Wall Thickness mm | |||||||||||
| 0.508 | 0.71 | 0.89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||||
| mm | inch | Weight kg/m | |||||||||
| 6.35 | 1/4 | 0.081 | 0.109 | 0.133 | 0.174 | 0.212 | |||||
| 9.53 | 3/8 | 0.126 | 0.157 | 0.193 | 0.257 | 0.356 | 0.429 | ||||
| 12.7 | 1/2 | 0.214 | 0.263 | 0.356 | 0.457 | 0.612 | 0.754 | ||||
| 15.88 | 5/8 | 0.271 | 0.334 | 0.455 | 0.588 | 0.796 | 0.995 | ||||
| 19.05 | 3/4 | 0.327 | 0.405 | 0.553 | 0.729 | 0.895 | 1.236 | ||||
| 25.4 | 1 | 0.44 | 0.546 | 0.75 | 0.981 | 1.234 | 1.574 | 2.05 | |||
| 31.75 | 1 1/4 | 0.554 | 0.688 | 0.947 | 1.244 | 1.574 | 2.014 | 2.641 | |||
| 38.1 | 1 1/2 | 0.667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |||
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||||
| Form of Tube: Straight & U-bend & Finned & Coiled | |||||||||||
| Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81. | |||||||||||
| Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213, A.SA214 |
|||||||||||
