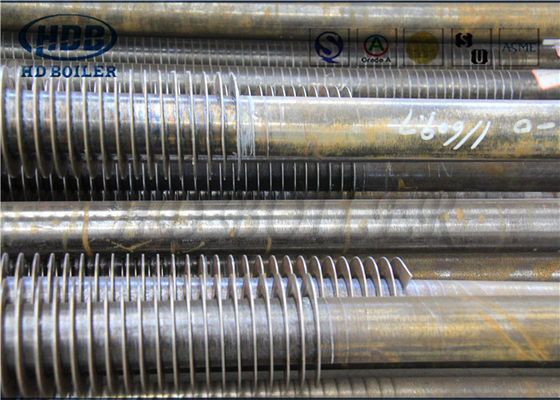

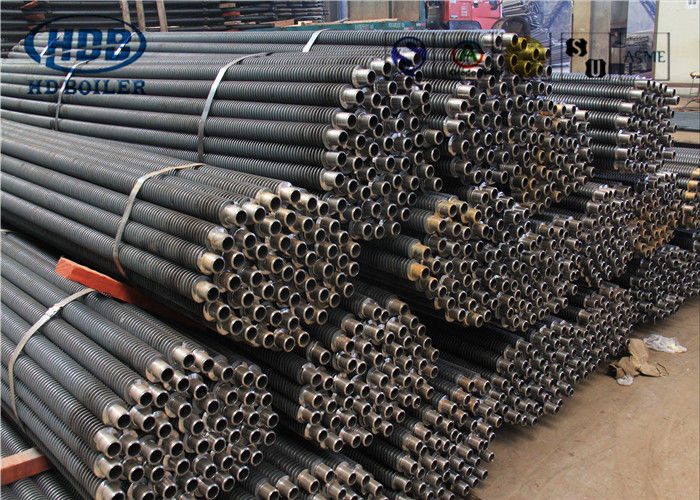

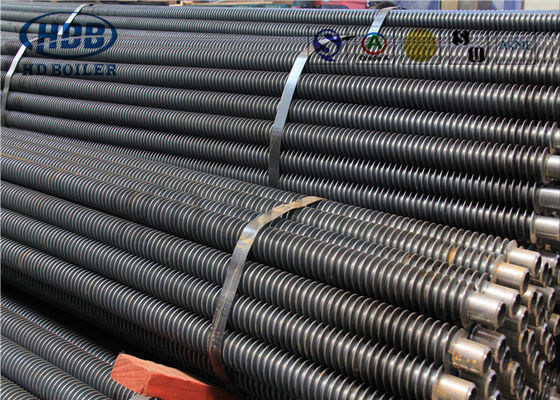

Carbon Steel Boiler Spare Parts Economizer Spiral Fin Tube For Heat Exchanger ASME Standard
Product Description
Economizer is a mechanical device intended to reduce energy consumption, or to perform another useful function like preheating a fluid. The economizer is used for other purposes as well boiler, power plant, and heating, ventilating, and air-condition in(HVAC) uses are discussed in this article. In simple terms, an economizer is a heat exchanger.
| ECONOMIZER fin tubes |
| Application |
It is widely used for Heat exchanger,Economizer
and other parts of Heat Industry. |
| Material of base pipe |
Carbon steel,Alloy steel |
| Material of fins |
Carbon steel,Alloy steel |
| Type of base pipe |
Seamlesss,Welded |
| Type of fins |
H or HH |
| OD of Base pipes |
15mm-219mm |
| Length of blank area |
according to Customer's request. |
| Length of finned tubes |
≤23m |
The finned tube economizer is a heat exchange element.In order to improve the heat transfer efficiency, the surface area (or inner surface area) of the heat exchanger is usually increased by adding fins on the surface of the heat transfer tube, thus achieving the purpose of improving the heat transfer efficiency.In the same heating transfer,metal consumption and ventilation energy consumption,the heating surface of fin tube economizer was reduced by nearly half compared with the bare tube economizer.It is more popular in users.
Technical parameter
| Medium |
air, flue gas, thermal oil, water, brine, refrigerant, etc. |
| Temperature |
standard heat exchanger to 560 ° C by special materials can be higher |
| Pipe materials |
carbon steel, stainless steel, alloy or special materials |
| Ribs materials |
carbon steel, stainless steel, non-ferrous metal, alloy or special materials |
| Thermal insulation &Surface treatment |
according to customers specification |
Features
1. The equipment body can be designed into many modules to ensure the long term and stable running;
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage
3. Improve the heat transfer efficiency
4. Structure arrangement: In line or staggered arrangement
Details
1.Our products can be modified according to our customers' needs and the situation.
2.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.

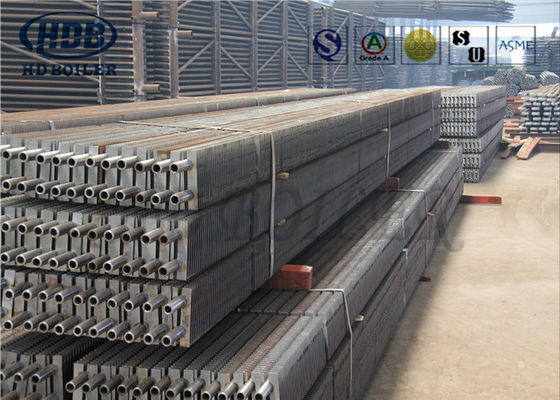

3.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.
Quality Control
| 1 |
Impact test and Strength calculation report with applied materials information. |
| 2 |
100%NDT(non-destructive inspection) report of steel plate, tube and electrode. |
| 3 |
X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler. |
| 4 |
Hydraulic test report: ensure the standard working pressure and safety. |
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
