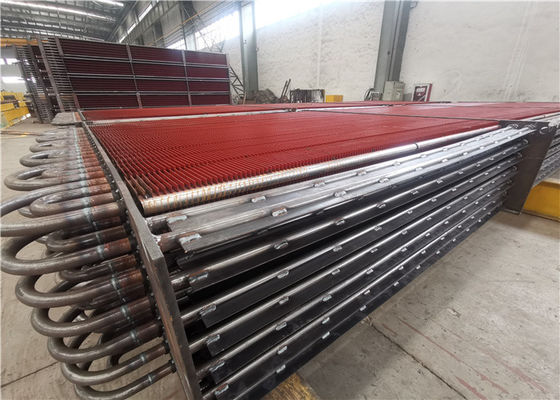

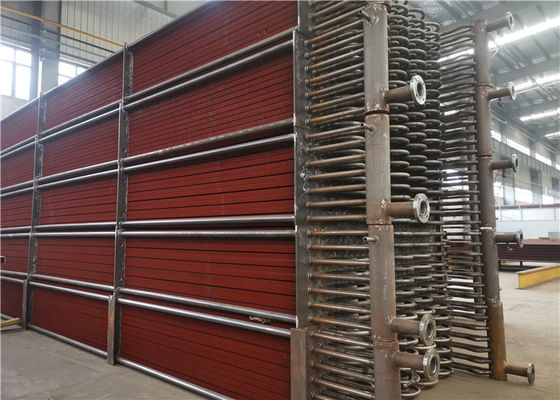

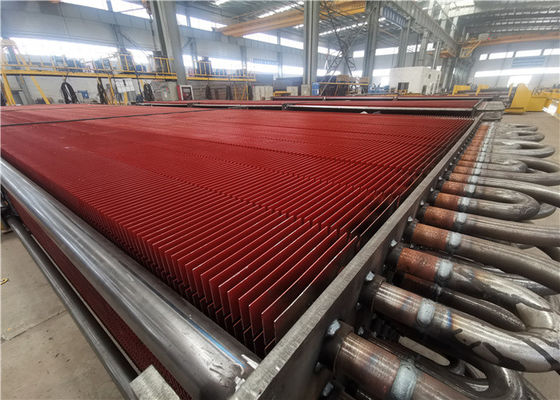

ASME Double H Boiler Fin Tube 4mm For Spare Parts Heat Exchanger
Product Details
| Type: | Fin Tube,Heat Exchanger Tube | Color: | Customized |
|---|---|---|---|
| Package: | Wooden Case With Steel Frame,In Bundles,etc. | Port: | Shanghai |
| Warranty: | 1 Year | Heat Transfer Efficiency: | High Efficiency |
| Highlight |
Double H Boiler Fin Tube,Cold drawn Boiler Fin Tube,4mm Boiler Fin Tube |
||
Product Description
ASME Double H Boiler Fin Tube For Boiler Spare Parts Heat Exchanger
Product Introduction
| Product | Fin tube |
| Techinque | Cold drawn |
| Standard | DIN, GB, DIN 2391, GB 3087-1999, GB/T 8162-1999, GB/T 8163-1999, GB/T3639, GB/T8162, GB/T8163 |
| Marterial | 10#-45#, A53-A369, 10#, 20#, 45#, A106(B,C), A53(A,B) |
| Spec Description | Thickness:0.5-4mm |
| Application | Structure,transport gas and oil, making machine part,ext |
| Certification | ISO9001-2008,API Spec 5CT |
| Packing | Bundles or seaworthy ,or as per customer’s requirement |
| Payment | T/T LC |
| Other service | The specification are available according to the customers’requirement |
| Main market |
NorthAmerica,SouthAmerica,EasternEurope,SouthestAsia,Oceania, Mid East, Western Asia |
1. Classification by structural type
The fin tube can be divided into two basic types: longitudinal type and radial type. Other types are the development and deformation of these two types. For example, the shape of large helix angle fin tube is close to the longitudinal type, and the shape of small helix angle fin tube is close to the radial fin tube has circular, rectangular and needle shape. In addition, the fins can be arranged outside the tube, which is called the outer fin tube, or inside the tube, which is called the inner fin tube or both.
(1) professional manufacturing
(2) Good quality control system and service system
(3) Full experienced in export business in steel pipes
(4) Convenient location for transport
(5) Flexible payment
(6) Huge Supply Capacity Advantage, Timely and Effective Delivery
(7) competitive price,best service,fast delivery
(8) Big discount for repeat customers.
Specifications
1). Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.

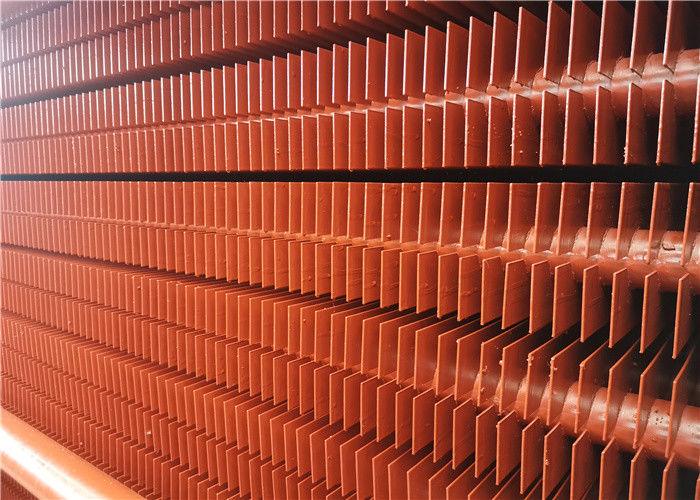

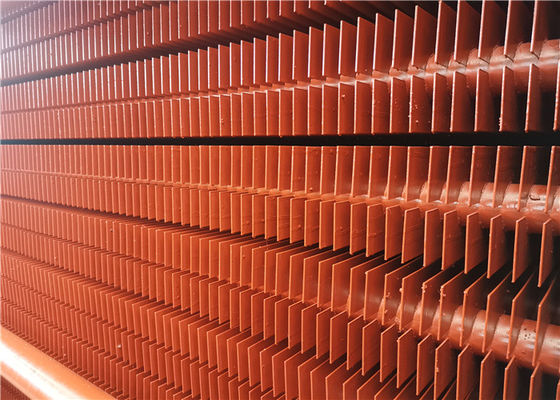

2). H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3). H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4). With straight channel to gain the best ash-blowing effect.
5). The compact structure to reduce the weight and reduce the manufacturing cost.
| Base Tube Material | Stainless Steel, Carbon Steel, Alloy Steel, Copper Alloy,Aluminum ,SA179 | ||
| Fin Material | Aluminum, Copper Alloy, Stainless Steel, Carbon Steel | ||
| Standard | ASME SA213/ASTM; ASME EA 106, ASME SA178, ASTM B1111 | ||
| Fin depth | 0.5-3mm | ||
| Base pipe O.D | 12.7-18mm | ||
| Fins per inch | 8-20Nos (as customer's request) | ||
| Test Requirement | Physical Property Test, Chemical Composition Analysis, Non-Destructive Test, Other Inspection and Test as customer's requirement. | ||
| Application | Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchange, super heater etc. | ||
