Steam Boiler Fin Tube Spare Parts Spiral Economizer ASME Standard
Product Details
| Type: | Fin Tube,Heat Exchanger Tube | Color: | Customized |
|---|---|---|---|

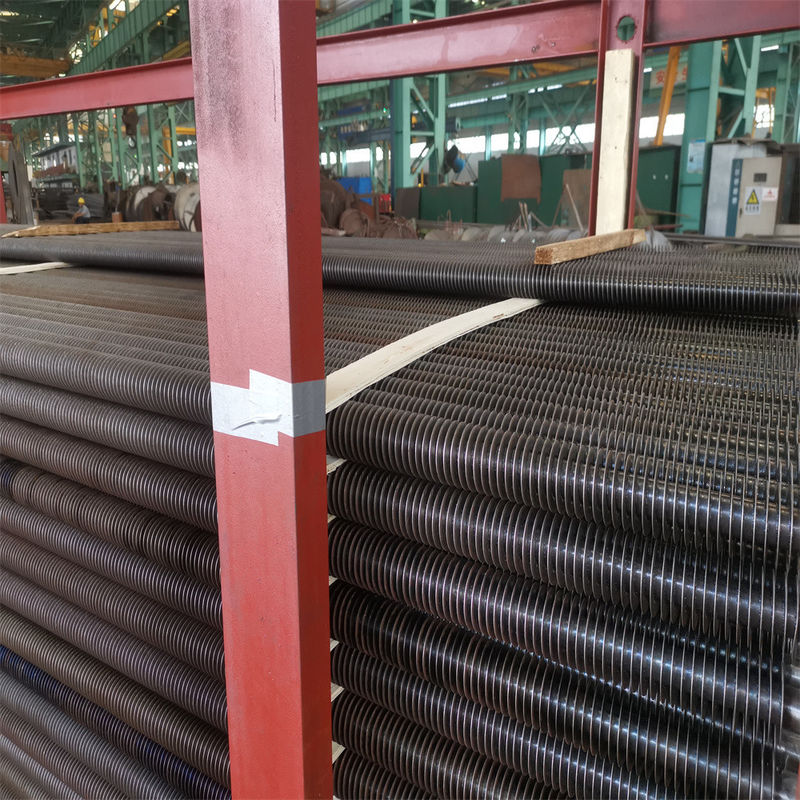

| Package: | Wooden Case With Steel Frame,In Bundles,etc. | Port: | Shanghai |
| Warranty: | 1 Year | Heat Transfer Efficiency: | High Efficiency |
| Highlight |
Steam Boiler Fin Tube,Spiral Economizer Boiler Fin Tube,ASME Standard Spiral Boiler Fin Tube |
||
Product Description

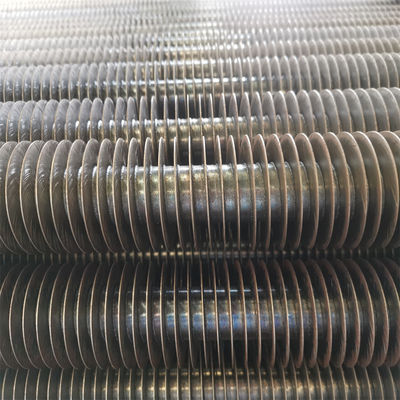

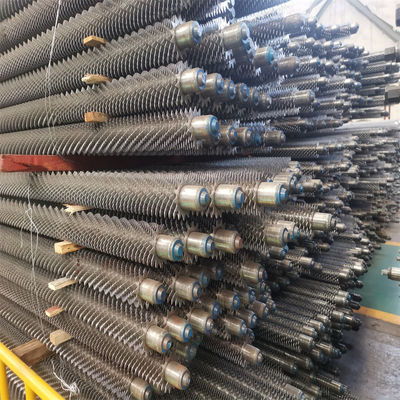

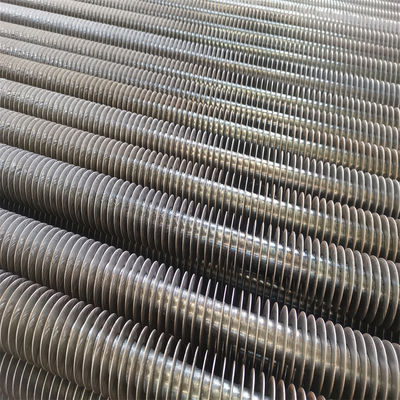

Steam Boiler Spare Parts Spiral Fin Tube Economizer ASME Standard
Boiler economizer
Product Description
- 1.Finned Tube Heat Exchangers consist of a shell and finned tubes assembly.
- 2.Fins are used to increase the effective surface area of heat exchanger tubing.
- 3.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger, thermic fluid to air heat exchanger, when an extended surface is needed on only one fluid side or when the operating pressure needs to be contained on one fluid side.
Technical parameter
| Medium | air, flue gas, thermal oil, water, brine, refrigerant, etc. |
| Temperature | standard heat exchanger to 560 ° C by special materials can be higher |
| Pipe materials | carbon steel, stainless steel, alloy or special materials |
| Ribs materials | carbon steel, stainless steel, non-ferrous metal, alloy or special materials |
| Thermal insulation &Surface treatment | according to customers specification |
Features
1. The equipment body can be designed into many modules to ensure the long term and stable running;
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage
3. Improve the heat transfer efficiency
4. Structure arrangement: In line or staggered arrangement
Details
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
