High Quality Cabon Steel Boiler Tubes With Excellent Corrosion Resistance
Product Details
| Material: | Cabon Steel/Stainless Steel/Alloy Steel | Keywords: | Boiler Steel Pipe |
|---|---|---|---|
| Thickness: | 1 - 60 Mm | Payment Term: | T/T, L/C, Western Union, Etc. |
| Certificate: | ISO, SGS, BV, Etc. | Application: | Boiler, Superheater, Heat Exchanger |
| Usage: | For Power Plants | Port: | Zhangjiagang，Shanghai |
| Highlight |
High Quality Boiler Tubes,Excellent Corrosion Resistance Boiler Tubes,Cabon Steel Boiler Tubes |
||
Product Description
Product Description
Chemical&Mechanical parameters
| Grade | C | Mn | Si | Cr | Mo | S | P |
| 20G | 0.17~0.23 | 0.35~0.65 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 20MnG | 0.17~0.23 | 0.70~1.00 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 25MnG | 0.22~0.29 | 0.70~1.00 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 12CrMoG | 0.08~0.15 | 0.40~0.70 | 0.17~0.37 | 0.40~0.70 | 0.40~0.55 | ≤0.020 | ≤0.025 |
| 15CrMoG | 0.12~0.18 | 0.40~0.70 | 0.17~0.37 | 0.80~1.10 | 0.40~0.55 | ≤0.020 | ≤0.025 |
| SA-210A1 | ≤0.27 | ≤0.93 | ≥0.10 | --- | --- | ≤0.035 | ≤0.035 |
| SA-210C | ≤0.35 | 0.29~1.06 | ≥0.10 | --- | --- | ≤0.035 | ≤0.035 |
| SA-213T2 | 0.10~0.20 | 0.30~0.61 | 0.10~0.30 | 0.50~0.81 | 0.44~0.65 | ≤0.025 | ≤0.025 |
| SA-213T12 | 0.05~0.15 | 0.30~0.61 | ≤0.50 | 0.80~1.25 | 0.44~0.65 | ≤0.025 | ≤0.025 |
Boiler steel pipe is a kind of steel pipe made of boiler-grade materials, among which, carbon steel pipe can be divided into seamless steel pipe, straight steel pipe, spiral steel pipe, high-frequency welded steel pipe, etc. Carbon steel seamless steel pipe is a type of long steel. The pipe is a hollow section and is used for a large number of fluid transportation pipelines, such as oil, natural gas, natural gas, water and some solid material pipelines. Therefore, the carbon steel steel pipes provided by HDT generally have excellent corrosion resistance to prevent corrosion during fluid transportation and enhance the service life of the steel pipes.
HDT controls the entire manufacturing process from raw materials to finished products, setting up inspection points during the manufacturing process to ensure that all products meet all requirements.
Features
- Product Name: Boiler Steel Tube
- Package: Standard Export Package
- Standard: ASME
- Shape: Tube
- Application: Boiler, Superheater, Heat Exchanger
- Material: Boiler Steel
Technical Parameters
| Attribute | Value |
|---|---|
| MOQ | 10 Ton |
| Certificate | ISO, SGS, BV, Etc. |
| Surface Treatment | Polish |
| Outer Diameter | Customized |
| Payment Term | T/T, L/C, Western Union, Etc. |
| Standard | ASME |
| Wall Thickness | Customized |
| Package | Standard Export Package |
| Shape | Tube |
| Material | Boiler Steel |
Applications
1. For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2. Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3. Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4. The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5. Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Customization
- Brand Name: HDT
- Model Number: Boiler tube
- Place of Origin: China
- Certification: ASME, ISO
- Minimum Order Quantity: 50TONS
- Price: Negotiation
- Packaging Details: Sea packaging
- Delivery Time: 30~60 working days
- Payment Terms: T/T
- Supply Ability: 1000 tons/month
- Wall Thickness: Customized
- Length: Customized
- Surface Treatment: Polish
- Shape: Tube
- Package: Standard Export Package
- Keywords: Carbon steel boiler tube, Carbon steel boiler tube, Carbon steel boiler tube
Support and Services
We provide technical support and service for Boiler Steel Tube.
Our services include:
- Consultation and advice on technical issues related to Boiler Steel Tube.
- Troubleshooting and repair of Boiler Steel Tube.
- Regular maintenance and testing of Boiler Steel Tube.
- Supply of spare parts and accessories for Boiler Steel Tube.
- Training and seminars on Boiler Steel Tube.
Packing and Shipping

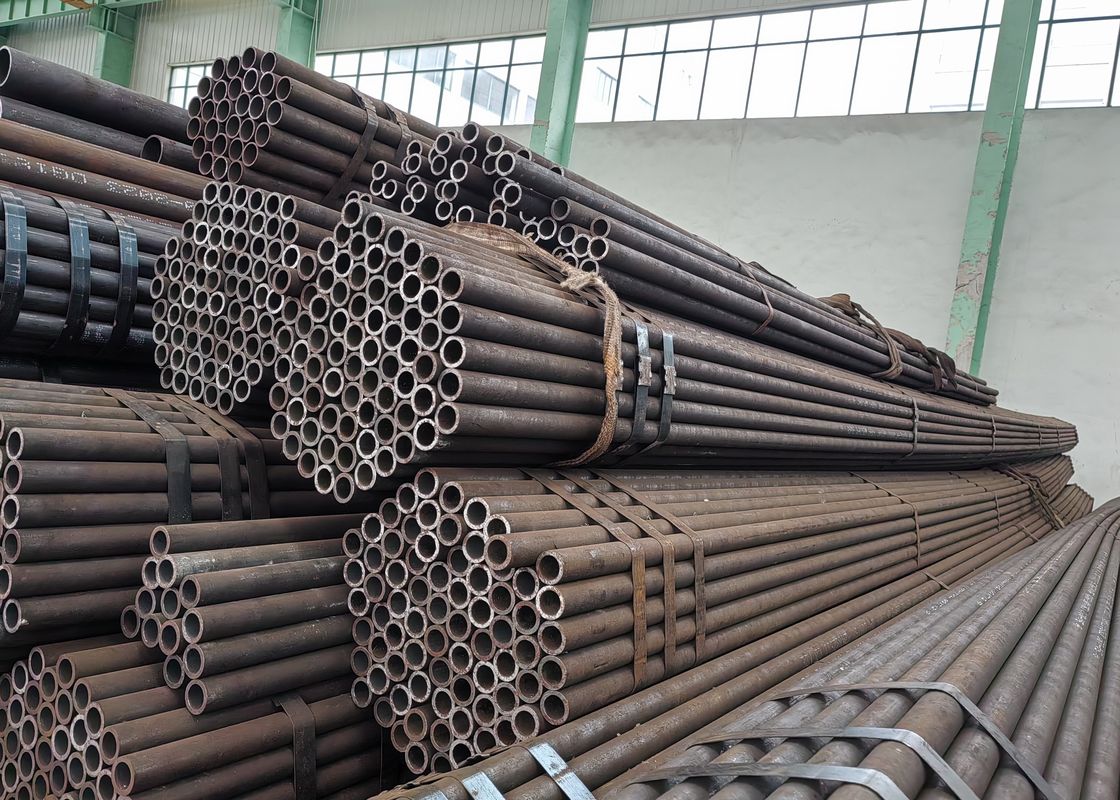

Boiler steel tubes are typically packaged in bundles in order to make transportation and handling easier. Depending on the size and weight of the tubes, bundles may consist of single tubes or multiple tubes. In general, bundles will be secured with steel bands or ropes before being loaded onto trucks, ships, or trains for shipping.
Before shipping, the bundles will be inspected to ensure they are properly secured. Once the bundles have been loaded, they will be transported to the final destination. During the shipment, the bundles will be covered with tarps to protect them from the elements.
Upon arrival at the destination, the bundles will be inspected for any signs of damage. If any damage is found, the packages will be opened and the tubes will be inspected for any signs of damage.
FAQ
- Q: What is the brand name of the Boiler Steel Tube?
- A: The brand name is HDT.
- Q: What is the model number of the Boiler Steel Tube?
- A: The model number is Boiler tube.
- Q: Where is the Boiler Steel Tube made?
- A: The Boiler Steel Tube is made in China.
- Q: What certifications do the Boiler Steel Tube have?
- A: The Boiler Steel Tube has certifications of ASME and ISO.
- Q: What is the minimum order quantity of the Boiler Steel Tube?
- A: The minimum order quantity of the Boiler Steel Tube is 50 TONS.
