Compact And Durable Serpentine Tube Heat Exchanger For Limited Space Applications
Product Details
| Material: | Stainless Steel, Carbon Steel, Alloy Steel | Certificate: | ASME, TUV, SGS, CE, GRADE A, ISO9001 |
|---|---|---|---|
| Shape: | U Bend , Straight ,Coil, Snake Tube | Application: | Boiler&heat Exchanger, Energy, Petrochemical, Nuclear |
| OD: | 1.5 To 1500mm | Color: | Customer's Requirement |
| Standard: | ASME, EN, ISO | Pressure Rating: | Up To 1000 Psi |
| Highlight |
compact serpentine tube heat exchanger,durable serpentine tube exchanger,limited space heat exchanger |
||
Product Description

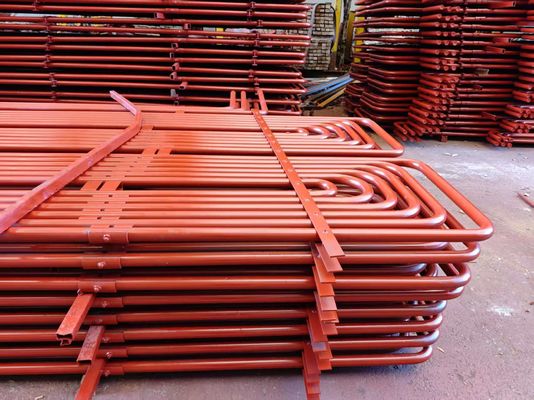

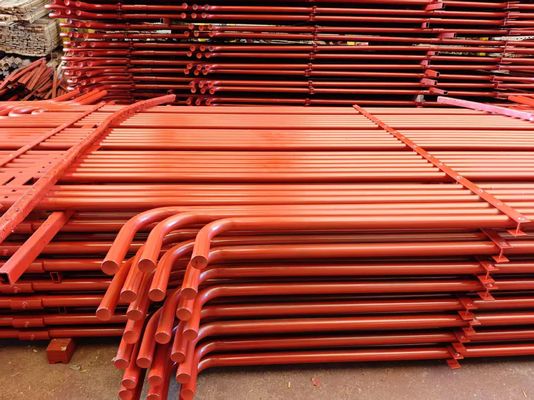

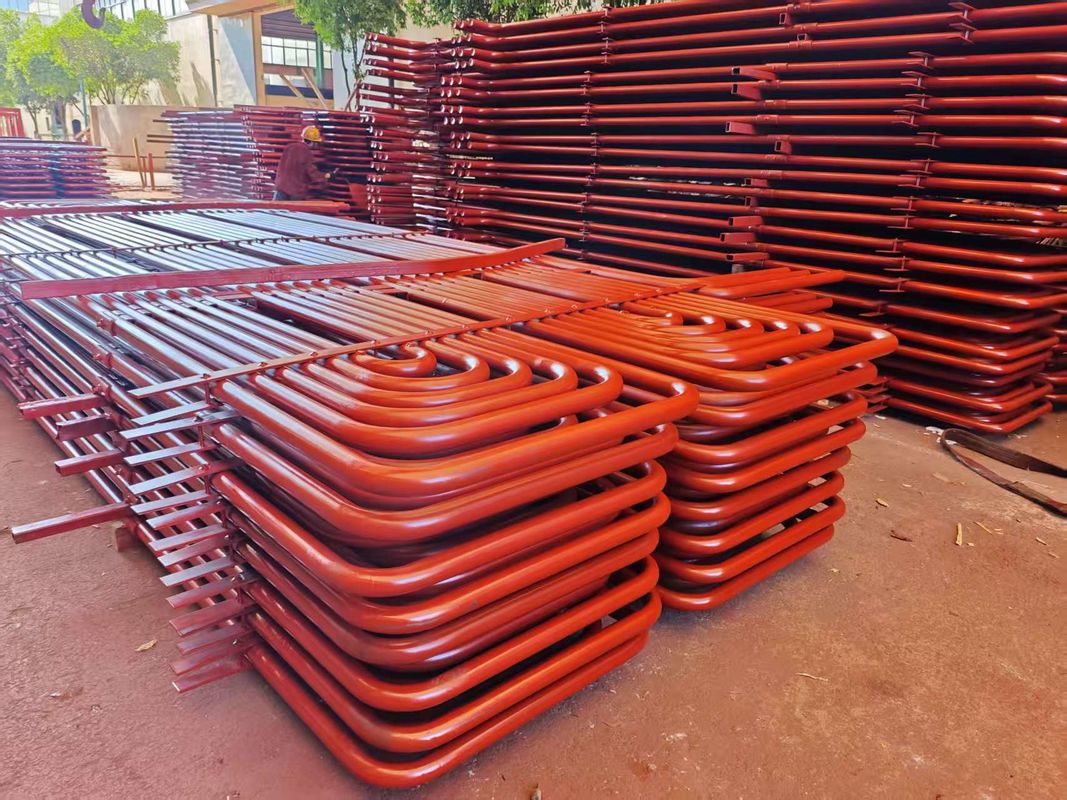

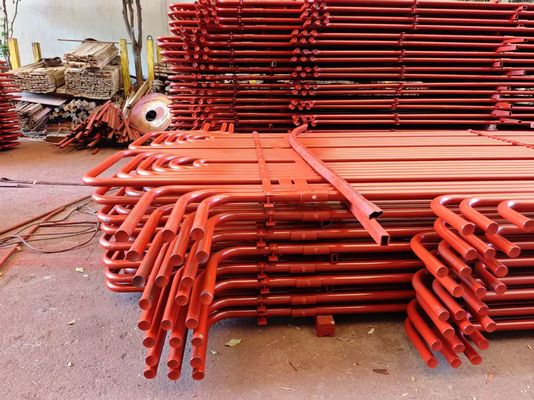

Compact And Durable Serpentine Tube Heat Exchanger For Limited Space Applications
What is a serpentine tube?
A serpentine tube is a continuous, winding pipe configuration used in heat exchangers for efficient heat transfer.
Product Description
The serpentine tube is a common tubular heat exchanger in which the heat transfer surface is acted by a serpentine tube bent into a cylindrical or flat shape. The serpentine tube heat exchangers play an important role in many industrial processes due to their simple design and efficient heat exchange. In addition, the serpentine tube heat exchanger's compact structure and small footprint make it a significant advantage in applications where space is limited.
Applications
Details
All the raw materials will be firstly made pipeline cutting.
It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.
| Setting Information | |
| process | welding |
| structure | horizontal or vertical |
| material | carbon steel, alloy steel |
| tubes | φ32, 38, 42, etc. |
| size | customized |
| brand | HTEG |
| Warranty | 18 months |
Features
- Product Name: Superheater And Reheater
- Service Life: Long Service Life
- Design: Customized
- Maintenance: Low Maintenance
- Pressure: High Pressure
- Safety: High Safety
- Key Features:
- Designed for CFB Boiler
- Superheater Coils for high temperature and pressure operation
- Reheater Coils for additional heating of steam
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support |
1. Flow blockage by condensed steam |
supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Packing and Shipping
Product Packaging:
The Superheater And Reheater product will be carefully packaged to ensure safety during transportation. It will be wrapped in protective material and placed in a sturdy cardboard box with ample padding to prevent any damage during shipping.
Shipping:
The Superheater And Reheater product will be shipped via a reputable courier service to ensure timely and safe delivery. Delivery times may vary depending on the destination, but typically range from 3-7 business days. Customers will receive a tracking number once the product has been shipped so they can monitor its progress and estimated delivery date.
Company Introduction
Hua Dong Energy Technology Started to Produce Serpentine Tube Since 1985,Up to now already supply more than 300,000 tons Steel Serpentine Tube to over 30 countries.
Hua Dong Energy Technology deals with Austenitic Stainless Steel, Nickel Alloy Steel (Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 35 years, every year sell more than 50000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Russia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001, ISO 14001.
