Stainless Carbon Alloy Steel Serpentine Tube With High Corrosion Resistance
Product Details
| Material: | Stainless Steel, Carbon Steel, Alloy Steel | Certificate: | ASME, TUV, SGS, CE, GRADE A, ISO9001 |
|---|---|---|---|
| Shape: | U Bend , Straight ,Coil, Snake Tube | Application: | Industrial/Power Station |
| Corrosion Resistance: | High | Color: | Customer's Requirement |
| Standard: | ASME, EN, ISO | Pressure Range: | Up To 100 Bar |
| Highlight |
stainless steel serpentine tube,carbon alloy serpentine tube,corrosion resistant serpentine tube |
||
Product Description
Stainless Carbon Alloy Steel Serpentine Tube With High Corrosion Resistance
Product Description

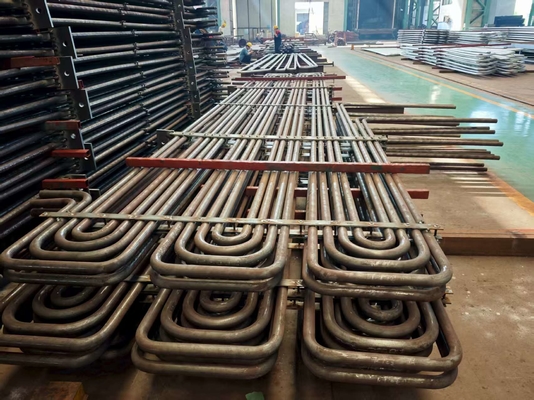

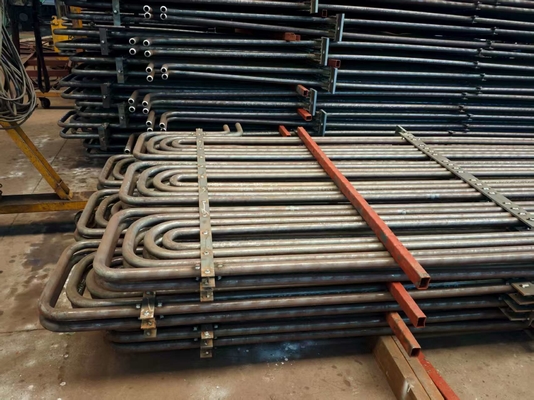

The design of the boiler serpentine tube aim to increase the heat exchange area and improve the heat exchange efficiency. This kind of pipe is usually made of metal material, which has good thermal conductivity and corrosion resistance, and it can adapt to various harsh working environments. The shape of the serpentine pipe allows the fluid to form turbulence during the flow process, further enhancing the heat exchange effect. In the power industry, it can be used in the cooling system of power plants.
Details
All the raw materials will be firstly made pipeline cutting.
It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.
| Setting Information | |
| process | welding |
| structure | horizontal or vertical |
| material | carbon steel, alloy steel |
| tubes | φ32, 38, 42, etc. |
| size | customized |
| brand | HTEG |
| Warranty | 18 months |
Features
- Product Name: Superheater And Reheater
- Service Life: Long Service Life
- Design: Customized
- Maintenance: Low Maintenance
- Pressure: High Pressure
- Safety: High Safety
- Key Features:
- Designed for CFB Boiler
- Superheater Coils for high temperature and pressure operation
- Reheater Coils for additional heating of steam
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support |
1. Flow blockage by condensed steam |
supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Applications
Packing and Shipping
Product Packaging:
The Superheater And Reheater product will be carefully packaged to ensure safety during transportation. It will be wrapped in protective material and placed in a sturdy cardboard box with ample padding to prevent any damage during shipping.
Shipping:
The Superheater And Reheater product will be shipped via a reputable courier service to ensure timely and safe delivery. Delivery times may vary depending on the destination, but typically range from 3-7 business days. Customers will receive a tracking number once the product has been shipped so they can monitor its progress and estimated delivery date.
Company Introduction
Hua Dong Energy Technology Started to Produce Serpentine Tube Since 1985,Up to now already supply more than 300,000 tons Steel Serpentine Tube to over 30 countries.
Hua Dong Energy Technology deals with Austenitic Stainless Steel, Nickel Alloy Steel (Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 35 years, every year sell more than 50000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Russia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001, ISO 14001.
