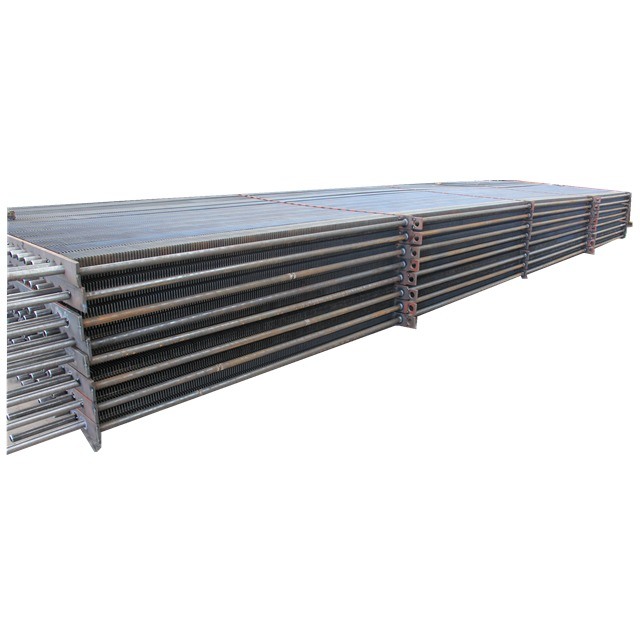

Double Finned Boiler Fin Tube for Steam Boiler and Power Station Use with High Heat Transfer
Product Details
| Type: | Natural Circulation | Structure: | Fire Tube And Water Tube |
|---|---|---|---|
| Pressure: | Low / High Pressure | Style: | VERTICAL |
| Fuel: | Biomass, Coal-Fire | Output: | Steam |
| Weight: | 5000 KG | Base Tube O.D: | 25.4 Mm ~1600mm |
| Base Tube Thickness: | 2.5 Mm ~40 Mm | Fin Height: | 0.5 Mm ~20.0 Mm |
| Fin Thickness: | 0.5 Mm ~3.0 Mm | Fin Pitch: | 5 Mm ~ 25.4 Mm |
| Material: | Carbon Steel, Alloy Steel, Stainless Steel | Length: | 0<L≤ 12000 |
| Base Pipe: | Welded Or Seamless | ||
| Highlight |
Double Finned Boiler Fin Tube,Steam Boiler Heat Exchanger Tube,Power Station H-type Finned Tube |
||
Product Description

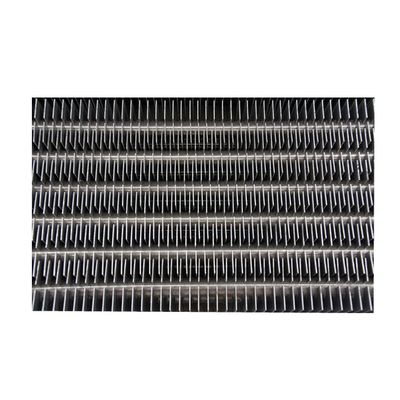

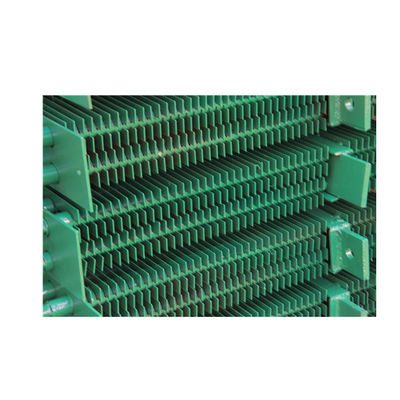

H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width.
- High heat transfer efficiency
- Excellent anti-wear and anti-fouling performance
- Superior self-cleaning properties
- Effective for flue gas waste heat recovery
- Customizable designs available
Our H-type finned tubes are derived from rectangle finned tubes with unique groove structure on the fin surface. Products can be modified according to customer requirements, designed for safety, reliability and efficiency in small spaces.
| Item | Range |
|---|---|
| Base Tube O.D (mm) | 25.4 mm ~1600mm |
| Base Tube Thickness (mm) | 2.5 mm ~40 mm |
| Fin Height (mm) | 0.5 mm ~20.0 mm |
| Fin thickness(mm) | 0.5 mm ~3.0 mm |
| Fin Pitch(mm) | 5 mm ~ 25.4 mm |
| Material | Carbon Steel, Alloy Steel, Stainless Steel |
| Length | 0<L≤ 12000 |
| Product | H-fin Tube |
| Base Pipe | Welded or Seamless |
| Material | Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys |
| Application | H economizer, H evaporator, H superheater, H air heater |
Product Highlights
Double Finned Boiler Fin Tubes/Heat Exchanger Tubes for Steam Boiler Fire Tube Structure Product Description H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery ...
High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil
High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil Boiler economizer Boiler Economizer is the energy improving device that helps to reduce the cost of operation by saving the fuel. The economizer in Boiler tends to make the system more energy efficient. In boilers, economizers are generally designed to exchange heat with the fluid, generally water. The exhaust from the boilers is generally in the temperature range of 200°C – 250°C, so there

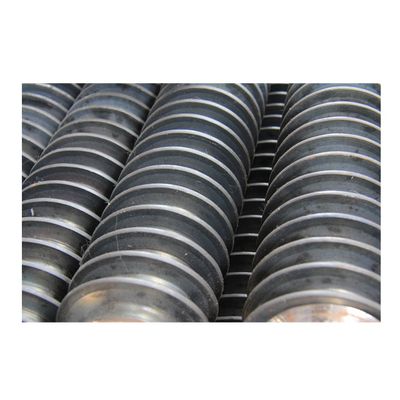

High Frequency Welding Boiler Spiral Fin Tube For Economizer Heat Transfer
