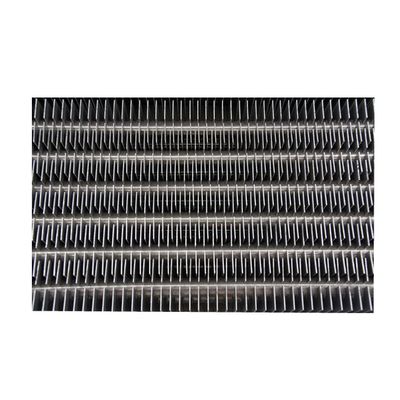

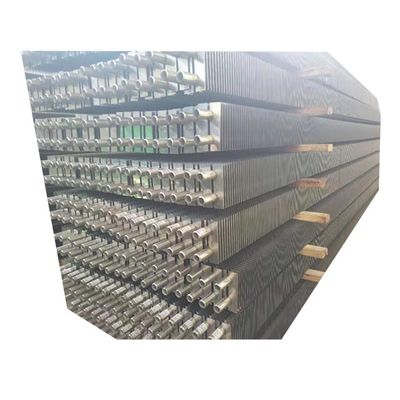

High Frequency Welded H Type Fin Tube for Heat Exchanger with 1 Year Warranty
Product Details
| Base Tube O.D: | 25.4 Mm ~1600mm | Base Tube Thickness: | 2.5 Mm ~40 Mm |
|---|---|---|---|
| Fin Height: | 0.5 Mm ~20.0 Mm | Fin Thickness: | 0.5 Mm ~3.0 Mm |
| Fin Pitch: | 5 Mm ~ 25.4 Mm | Material: | Carbon Steel, Alloy Steel, Stainless Steel |
| Length: | 0<L≤ 12000 | Base Pipe: | Welded Or Seamless |
| Steam Production: | Max. 60t/h | Pressure: | Low / High Pressure |
| Structure: | Fire Tube Or Water Tube | Surface Treatment: | Painted |
| Fuel: | Coal / Gas / Coal-fired / Water Heat, Biomass, Fossil Fuel | Output: | Hot Water / Steam |
| Style: | VERTICAL | ||
| Highlight |
High Frequency Welded Fin Tube,H Type Fin Tube,1 Year Warranty Fin Tube |
||
Product Description
New technology square fin tube double H from China providers
H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width. Integrated heat transfer capacity is related to fin efficiency, convective heat transfer coefficient and finned ratio. Pressure drop increases with the increase of fin height and fin width.
In order to improve the heat exchange efficiency and extend surface heat transfer, H-type finned tubes have been widely used in boilers and waste heat recovery in recent years. H-type finned tubes are derived largely from rectangle finned tubes. Because of their unique groove structure on the fin surface, H-type finned tubes have excellent anti-wear and anti-fouling performance.
Our products can be modified according to our customers' needs and the situation. We design and manufacture safe, reliable and efficient H-fin tubes. HD BOILER has also completed stand-alone product quality assurance systems. Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.
| Item | Base Tube O.D (mm) | Base Tube Thickness (mm) | Fin Height (mm) | Fin thickness (mm) | Fin Pitch (mm) |
|---|---|---|---|---|---|
| Range | 25.4 mm ~1600mm | 2.5 mm ~40 mm | 0.5 mm ~20.0 mm | 0.5 mm ~3.0 mm | 5 mm ~ 25.4 mm |
| Material | Carbon Steel, Alloy Steel, Stainless Steel | ||||
| Length | 0<L≤ 12000 | ||||
| Product | H-fin Tube |
|---|---|
| Base Pipe | Welded or Seamless |
| Material | Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys. |
| Application | H economizer, H evaporator, H superheater, H air heater and etc. |
- Impact test and Strength calculation report with applied materials information.
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler
- Hydraulic test report: ensure the standard working pressure and safety
