Boiler Fin Tube H Type Finned Tube with Self-Cleaning Properties Flue Gas Waste Heat Recovery and Anti-Wear Features
Product Details
| Weight: | 2000 Kg | Material: | CS |
|---|---|---|---|
| Base Tube O.D: | 25.4 Mm ~1600mm | Base Tube Thickness: | 2.5 Mm ~40 Mm |
| Fin Height: | 0.5 Mm ~20.0 Mm | Fin Thickness: | 0.5 Mm ~3.0 Mm |
| Fin Pitch: | 5 Mm ~ 25.4 Mm | Length: | 0<L≤ 12000 |
| Base Pipe: | Welded Or Seamless | Heat Transfer Efficiency: | High |
| Flue Gas Resistance: | Designed For Small Space | Fin Type: | H-fin, Spiral, Bare Tube, Serrated |
| Fin Material: | Carbon Steel, Alloy Steel, Stainless Steel | Weld Strength: | High Tensile Strength |
| Thermal Conductivity: | Good | ||
| Highlight |
Self-Cleaning Boiler Fin Tube,Flue Gas Waste Heat Recovery H Type Finned Tube,Anti-Wear Spiral Fin Tube |
||
Product Description
- High heat transfer efficiency with excellent anti-wear and anti-fouling performance
- Unique groove structure on the fin surface for superior performance
- Customizable designs to meet specific customer requirements
- Manufactured with high-quality materials for durability and reliability

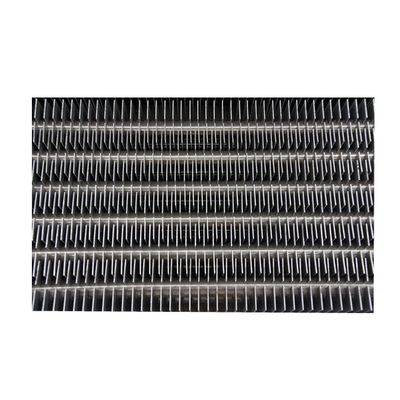

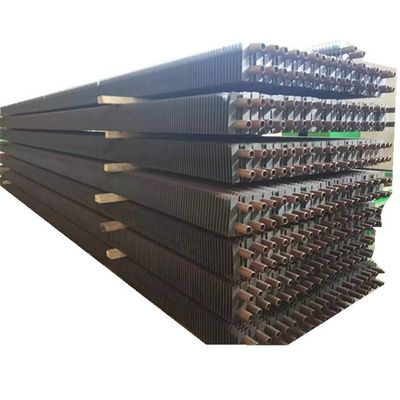

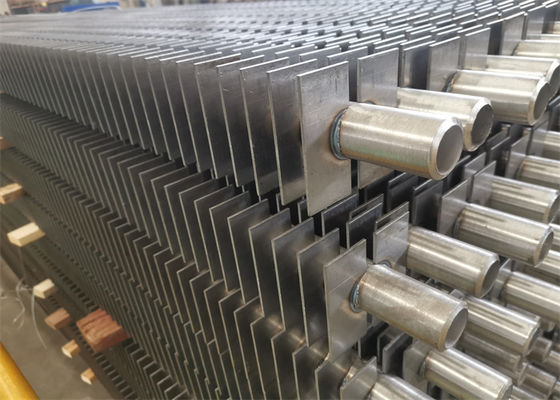

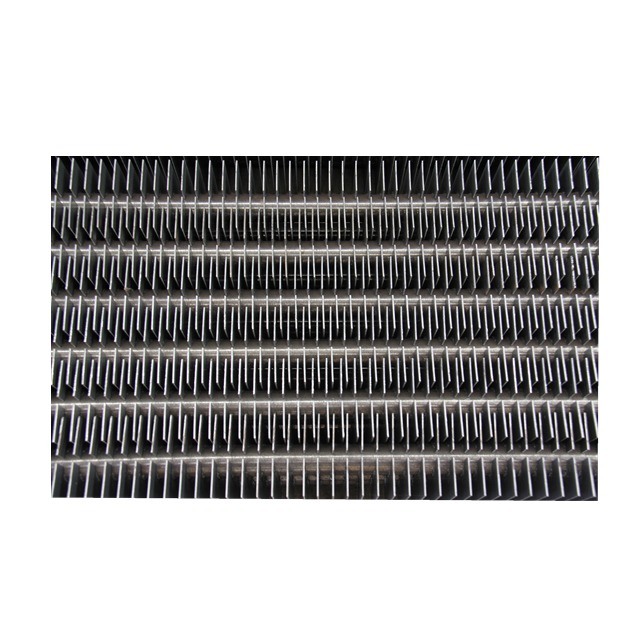

- H fin tube consists of two steel circular symmetry welded on fluorescent tubes forming fins shaped like letter "H"
- Widely used in utility boilers, industrial boilers, and marine power as heat exchanger components
- Uses flash resistance welding processes with high fusion rate and tensile strength
- Can manufacture dual tube "double H" type fin tubes for longer tube applications
| Item | Range |
|---|---|
| Base Tube O.D (mm) | 25.4 mm ~1600mm |
| Base Tube Thickness (mm) | 2.5 mm ~40 mm |
| Fin Height (mm) | 0.5 mm ~20.0 mm |
| Fin thickness(mm) | 0.5 mm ~3.0 mm |
| Fin Pitch(mm) | 5 mm ~ 25.4 mm |
| Material | Carbon Steel, Alloy Steel, Stainless Steel |
| Length | 0<L≤ 12000 |
| Product | H-fin Tube |
|---|---|
| Base Pipe | Welded or Seamless |
| Material | Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys |
| Application | H economizer, H evaporator, H superheater, H air heater and etc. |
- Impact test and Strength calculation report with applied materials information
- 100%NDT(non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam)
- Hydraulic test report to ensure standard working pressure and safety
