H-type Finned Tube Boiler Fin Tube with Max. 60t/h Steam Production Natural Circulation and 1 Year Warranty

Product Details:

Place of Origin:	Zhangjiagang,China
Brand Name:	HD Boiler
Certification:	ISO9001,ASME,SGS,EN,TUV
Model Number:	Boiler Finned Tube

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	$2,200-2,500

Contact Now

Detailed Product Description

Type:	Natural Circulation	Structure:	Fire Tube And Water Tube
Pressure:	Low / High Pressure	Steam Production:	Max. 60t/h
Style:	VERTICAL	Fuel:	Biomass, Coal-Fire
Output:	Steam	Surface Treatment:	Painted
Base Tube O.D:	25.4 Mm ~1600mm	Base Tube Thickness:	2.5 Mm ~40 Mm
Fin Height:	0.5 Mm ~20.0 Mm	Fin Thickness:	0.5 Mm ~3.0 Mm
Fin Pitch:	5 Mm ~ 25.4 Mm	Material:	Carbon Steel, Alloy Steel, Stainless Steel
Length:	0
Highlight:	Max. 60t/h Steam Production Boiler Fin Tube , Natural Circulation H-type Finned Tube , 1 Year Warranty Heat Exchanger Tube

Heat Exchanger Boiler Fin Tube for Steam Boiler HD Boiler

Product Description

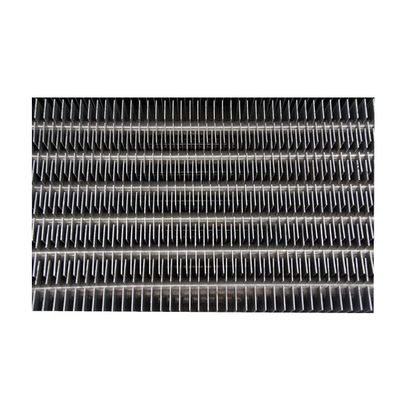

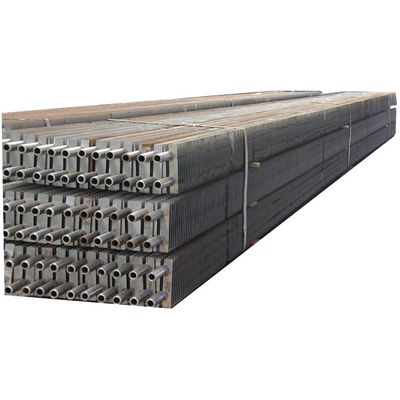

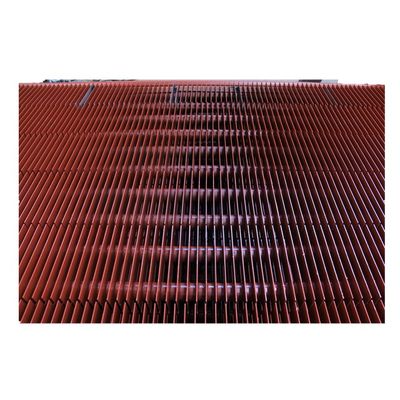

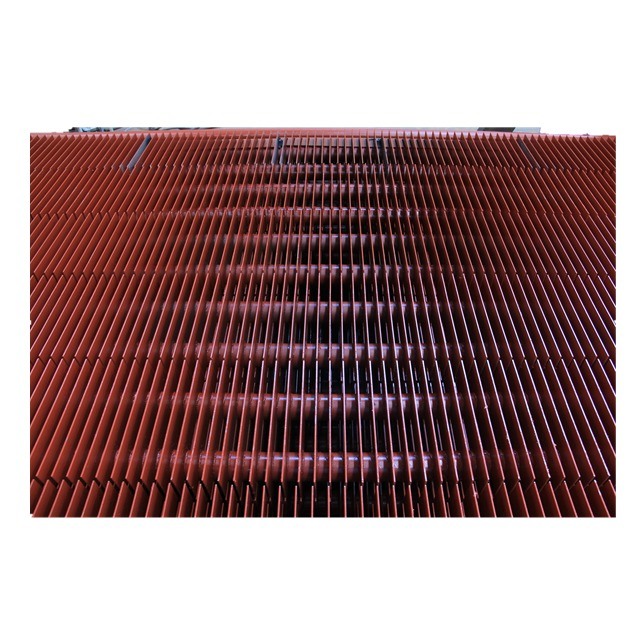

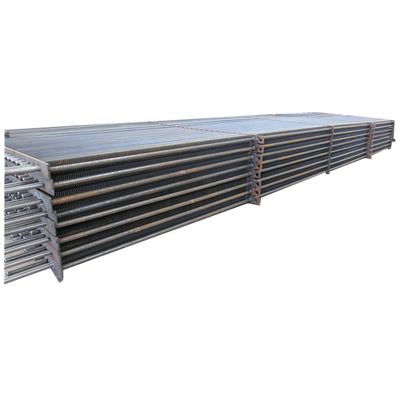

H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width. Integrated heat transfer capacity is related to fin efficiency, convective heat transfer coefficient and finned ratio. Pressure drop increases with the increase of fin height and fin width.

Detail

In order to improve the heat exchange efficiency and extend surface heat transfer, H-type finned tubes have been widely used in boilers and waste heat recovery in recent years. H-type finned tubes are derived largely from rectangle finned tubes. Because of their unique groove structure on the fin surface, H-type finned tubes have excellent anti-wear and anti-fouling performance.

Structure

Our products can be modified according to our customers' needs and the situation. We design and manufacture safe, reliable and efficient H-fin tubes. HD BOILER has also completed stand-alone product quality assurance systems. Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.

Technical Parameters

Item	Base Tube O.D (mm)	Base Tube Thickness (mm)	Fin Height (mm)	Fin thickness (mm)	Fin Pitch (mm)
Range	25.4 mm ~1600mm	2.5 mm ~40 mm	0.5 mm ~20.0 mm	0.5 mm ~3.0 mm	5 mm ~ 25.4 mm
Material	Carbon Steel, Alloy Steel, Stainless Steel
Length	0<L≤ 12000

Product	H-fin Tube
Base Pipe	Welded or Seamless
Material	Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys
Application	H economizer, H evaporator, H superheater, H air heater and etc.

Contact Person: Mrs. Sandy

Tel: 008615151590099

Fax: 86-512-5877-4453
