H-Type Finned Tube with 1 Year Warranty for Low and High Pressure Applications
Product Details
| Weight: | 5000 Kg | Base Tube O.D: | 25.4 Mm ~1600 Mm |
|---|---|---|---|
| Base Tube Thickness: | 2.5 Mm ~40 Mm | Fin Height: | 0.5 Mm ~20.0 Mm |
| Fin Thickness: | 0.5 Mm ~3.0 Mm | Fin Pitch: | 5 Mm ~25.4 Mm |
| Material: | Carbon Steel, Alloy Steel, Stainless Steel | Length: | 0<L≤12000 Mm |
| Base Pipe Type: | Welded Or Seamless | Pressure Type: | Low / High Pressure |
| Surface Treatment: | Painted | Fuel Type: | Biomass, Fossil Fuel |
| Heat Transfer: | High Efficiency | Flue Gas Resistance: | Designed For Small Space |
| Self-cleaning Properties: | Superior | ||
| Highlight |
1 Year Warranty Finned Tube,Low Pressure H-Type Finned Tube,High Pressure Boiler Fin Tube |
||
Product Description

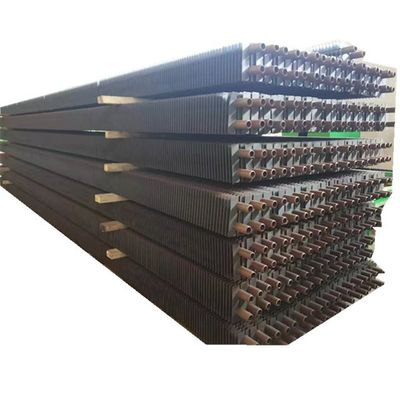

H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width.
In order to improve the heat exchange efficiency and extend surface heat transfer, H-type finned tubes have been widely used in boilers and waste heat recovery. H-type finned tubes are derived largely from rectangle finned tubes. Because of their unique groove structure on the fin surface, H-type finned tubes have excellent anti-wear and anti-fouling performance.
Our products can be modified according to our customers' needs and the situation. We design and manufacture safe, reliable and efficient H-fin tubes with high heat transfer efficiency, designed for flue gas resistance and small space requirements.
| Item | Range |
|---|---|
| Base Tube O.D (mm) | 25.4 mm ~1600mm |
| Base Tube Thickness (mm) | 2.5 mm ~40 mm |
| Fin Height (mm) | 0.5 mm ~20.0 mm |
| Fin thickness(mm) | 0.5 mm ~3.0 mm |
| Fin Pitch(mm) | 5 mm ~ 25.4 mm |
| Material | Carbon Steel, Alloy Steel, Stainless Steel |
| Length | 0<L≤ 12000 |
| Product | H-fin Tube |
|---|---|
| Base Pipe | Welded or Seamless |
| Material | Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys |
| Application | H economizer, H evaporator, H superheater, H air heater and etc. |
- Impact test and Strength calculation report with applied materials information
- 100%NDT(non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam)
- Hydraulic test report to ensure standard working pressure and safety
Product Highlights
Hua Dong's H-type finned tube heat exchanger offers superior heat transfer efficiency with anti-wear, anti-fouling properties. Customizable for boilers & waste heat recovery, available in carbon/alloy/stainless steel. Certified, seaworthy packing, 1-year warranty.
