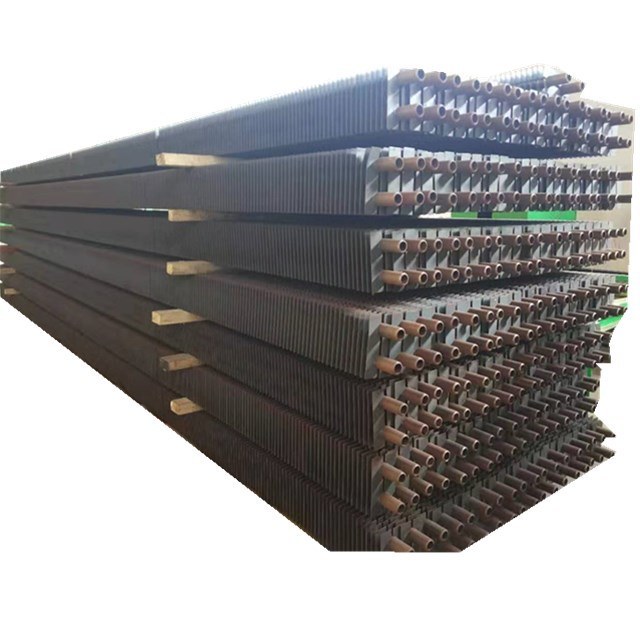

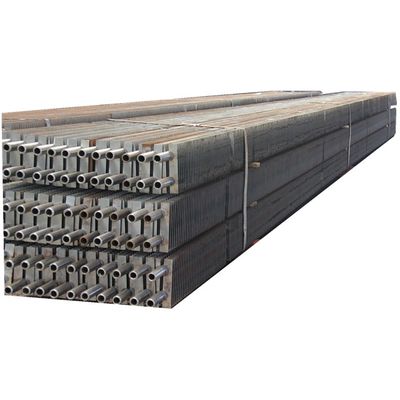

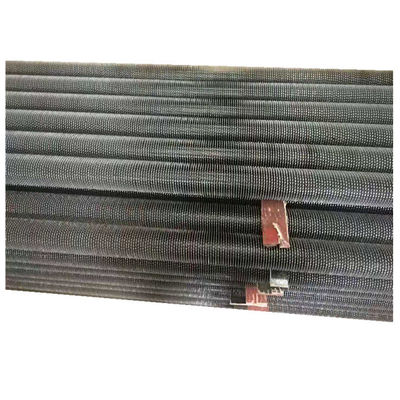

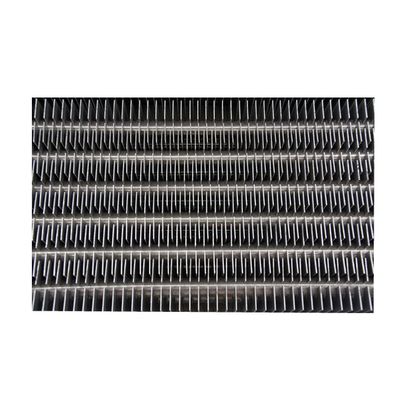

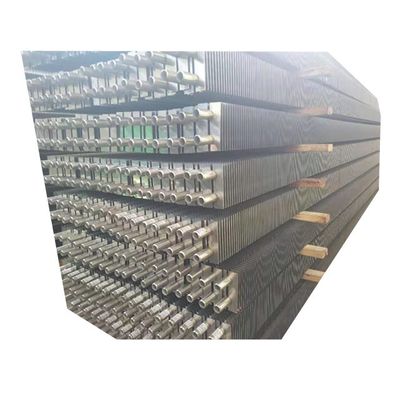

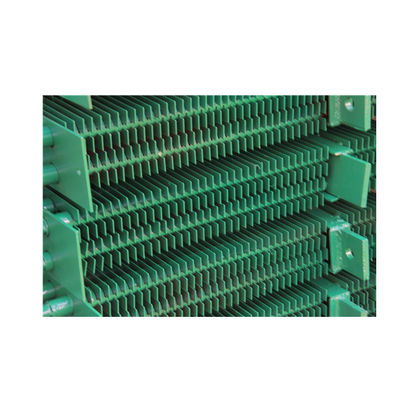

High Frequency Welding Boiler Fin Tube for Central Heating HD Boiler with Corrosion Resistant Finish
Product Details
| Weight: | 5000 Kg | Base Tube O.D: | 25.4 Mm ~1600mm |
|---|---|---|---|
| Base Tube Thickness: | 2.5 Mm ~40 Mm | Fin Height: | 0.5 Mm ~20.0 Mm |
| Fin Thickness: | 0.5 Mm ~3.0 Mm | Fin Pitch: | 5 Mm ~25.4 Mm |
| Material: | Carbon Steel, Alloy Steel, Stainless Steel | Length: | 0<L≤12000 |
| Base Pipe Type: | Welded Or Seamless | Pressure Type: | Low / High Pressure |
| Surface Treatment: | Painted | Heat Transfer Efficiency: | High |
| Self-cleaning Properties: | Superior | Flue Gas Resistance: | Designed For Small Space |
| Fin Type: | H-type Finned Tube | ||
| Highlight |
Central Heating Boiler Fin Tube,HD Boiler Fin Tube,Corrosion Resistant Fin Tube |
||
Product Description
Central heating radiator with high-frequency welded fin tubes for efficient heat transfer in boiler systems.
H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width.
H-type finned tubes have been widely used in boilers and waste heat recovery due to their unique groove structure on the fin surface, which provides excellent anti-wear and anti-fouling performance. Our products can be customized according to specific requirements.
| Item | Range |
|---|---|
| Base Tube O.D (mm) | 25.4 mm ~1600mm |
| Base Tube Thickness (mm) | 2.5 mm ~40 mm |
| Fin Height (mm) | 0.5 mm ~20.0 mm |
| Fin Thickness (mm) | 0.5 mm ~3.0 mm |
| Fin Pitch (mm) | 5 mm ~ 25.4 mm |
| Material | Carbon Steel, Alloy Steel, Stainless Steel |
| Length | 0<L≤ 12000 |
| Product | H-fin Tube |
|---|---|
| Base Pipe | Welded or Seamless |
| Material | Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys |
| Application | H economizer, H evaporator, H superheater, H air heater and etc. |
- Impact test and Strength calculation report with applied materials information
- 100%NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam)
- Hydraulic test report to ensure standard working pressure and safety
Product Highlights
High-efficiency H-type finned tube heat exchangers for industrial boilers & power stations. Features superior heat transfer, anti-wear design, and customizable specifications (25.4-1600mm tubes). Certified quality with X-ray/hydraulic testing. Ideal for food, beverage, and construction industries.
