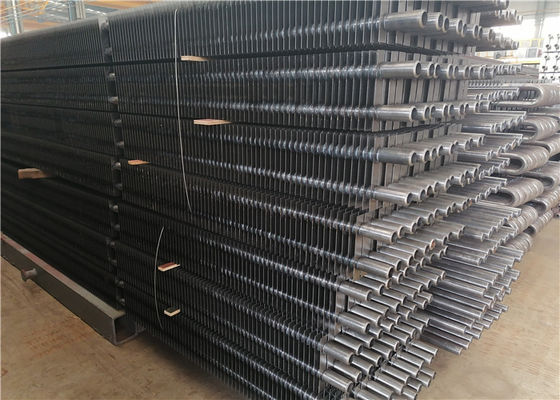

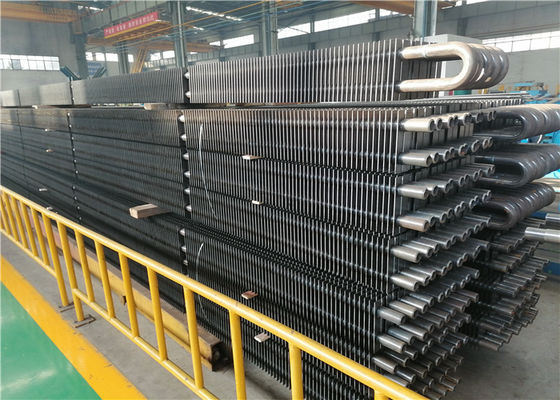

Weld Bending Extruded Boiler Fin Tube with 1 Year Warranty and New Product 2020 Design
Product Details
| Weight: | 5000 Kg | Base Tube O.D: | 25.4 Mm ~1600 Mm |
|---|---|---|---|
| Base Tube Thickness: | 2.5 Mm ~40 Mm | Fin Height: | 0.5 Mm ~20.0 Mm |
| Fin Thickness: | 0.5 Mm ~3.0 Mm | Fin Pitch: | 5 Mm ~25.4 Mm |
| Material: | Carbon Steel, Alloy Steel, Stainless Steel | Length: | 0<L≤12000 |
| Base Pipe Type: | Welded Or Seamless | Pressure Type: | Low / High Pressure |
| Surface Treatment: | Painted | Heat Transfer Efficiency: | High |
| Flue Gas Resistance: | Designed For Small Space | Self-cleaning Properties: | Superior |
| Fin Type: | H-type | ||
| Highlight |
Weld Bending Boiler Fin Tube,1 Year Warranty H-type Finned Tube,New Product 2020 Heat Exchanger Tube |
||
Product Description

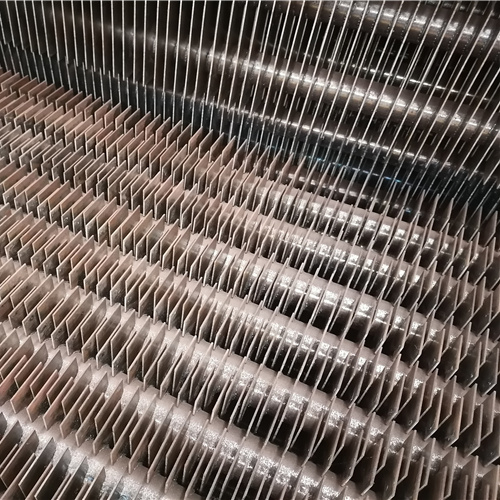

H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width.
H-type finned tubes have been widely used in boilers and waste heat recovery due to their excellent heat exchange efficiency and extended surface heat transfer. Derived from rectangle finned tubes, their unique groove structure provides exceptional anti-wear and anti-fouling performance.
Our H-fin tubes can be customized to meet specific customer requirements. Designed for safety, reliability and efficiency, they feature high heat transfer efficiency with optimized flue gas resistance and compact space requirements.
| Item | Base Tube O.D (mm) | Base Tube Thickness (mm) | Fin Height (mm) | Fin Thickness (mm) | Fin Pitch (mm) |
|---|---|---|---|---|---|
| Range | 25.4-1600 | 2.5-40 | 0.5-20.0 | 0.5-3.0 | 5-25.4 |
| Material | Carbon Steel, Alloy Steel, Stainless Steel | ||||
| Length | 0 < L ≤ 12000 | ||||
| Product | H-fin Tube |
|---|---|
| Base Pipe | Welded or Seamless |
| Material | Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys |
| Application | H economizer, H evaporator, H superheater, H air heater |
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam)
- Hydraulic test report to ensure standard working pressure and safety
Product Highlights
H-type finned tube heat exchangers offer superior heat transfer efficiency, anti-wear properties, and flue gas waste heat recovery. Customizable for boilers & industrial applications with carbon/alloy/stainless steel options. Includes 1-year warranty, testing reports, and online support.
