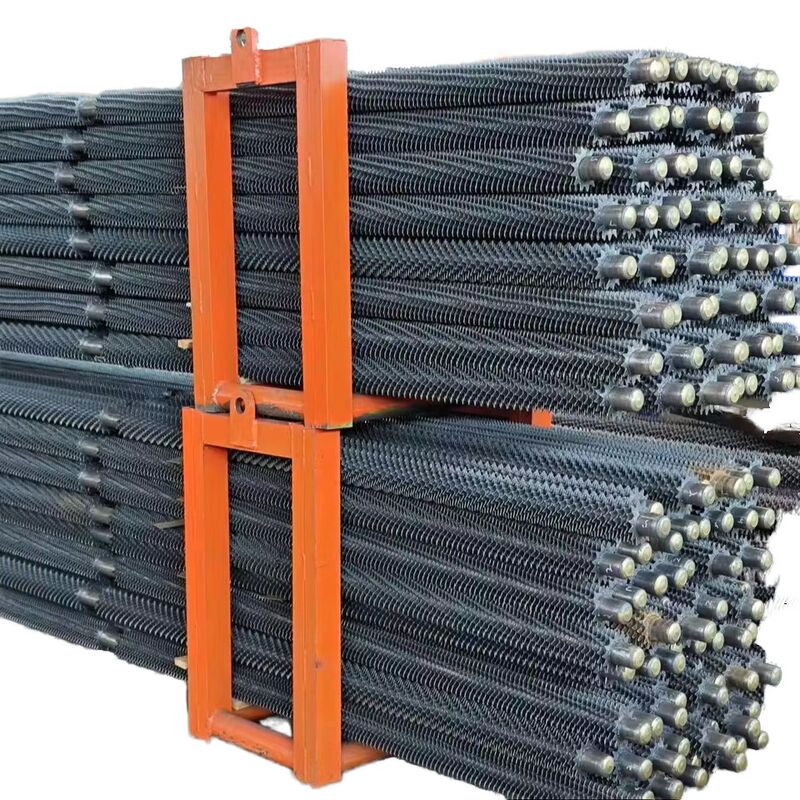

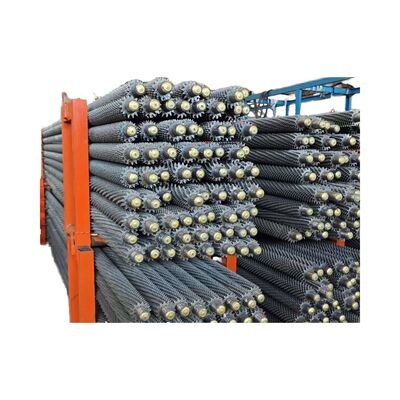

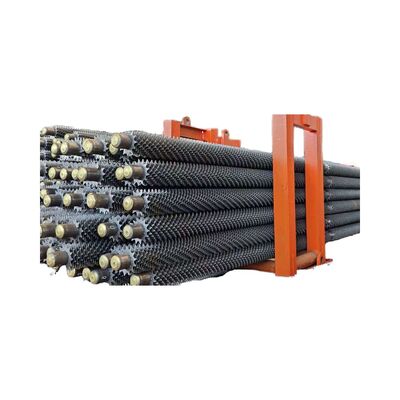

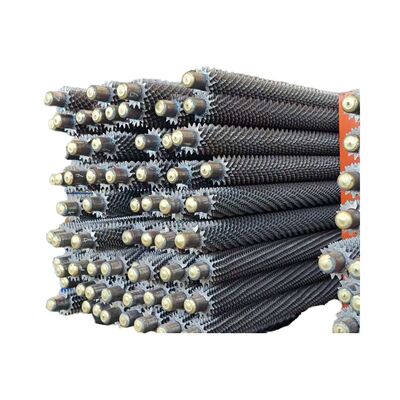

Custom Durable Stainless Steel Spiral Finned Tube for Industrial Boiler Applications
Product Details
| Base Tube O.D: | 25.4 ~1600mm | Base Tube Thickness: | 2.5 ~40 Mm |
|---|---|---|---|
| Fin Height: | 0.5 ~20.0 Mm | Fin Thickness: | 0.5 ~3.0 Mm |
| Fin Pitch: | 5 ~25.4 Mm | Material: | Stainless Steel |
| Length: | 0＜L＜12000mm | Base Pipe Type: | Welded Or Seamless |
| Weight Range: | 10 ~1000 Ton | Smelting Process: | EF+LF+VD |
| UT Standard: | ASTM A388 Or EN10228 | Surface Treatment: | Painted |
| Pressure Type: | Low/High Pressure | Product Type: | H-fin Tube |
| Fuel Type: | Biomass Fossil Fuel | ||
| Highlight |
Stainless Steel Boiler Fin Tube,Custom Durable Spiral Finned Tube,Industrial Boiler H-Finned Tube |
||
Product Description
| Item | Base Tube O.D (mm) | Base Tube Thickness (mm) | Fin Height (mm) | Fin Thickness (mm) | Fin Pitch (mm) |
|---|---|---|---|---|---|
| Range | 25.4 ~ 1600mm | 2.5 ~ 40mm | 0.5 ~ 20.0mm | 0.5 ~ 3.0mm | 5 ~ 25.4mm |
| Material | Carbon Steel, Alloy Steel, Stainless Steel | ||||
| Length | 0 < L < 12000mm | ||||
| Product | H-fin Tube |
|---|---|
| Base Pipe | Welded or Seamless |
| Material | Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys |
| Application | H economizer, H evaporator, H superheater, H air heater and more |
| Description | Boiler economizer |
|---|---|
| Material | Alloy steel, Carbon steel, SA210C, SA213T22, etc. |
| Material Standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight | Min: 10 ton, Max: 1000 ton |
| Smelting Process | EF+LF+VD |
| Process | Material → Ingot → Hot/Cold-Rolling → Heat treatment (Normalizing + tempering) → Inspection → Rough machining → UT → 2nd Heat treatment → Finishing machining → Inspection |
| UT Standard | ASTM A388 or EN10228, etc |
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report for welding seams
- Hydraulic test report to ensure standard working pressure and safety
2) Each procedure is crafted by professional skilled labor, followed by particular QC
3) All product information can be checked in our efficient management system
After sales:
1. Technical training according to customer requirements
2. Replacement under warranty
3. Maintenance spare parts supply
4. Regular customer callbacks and visits
5. Timely response to complaints and consultations
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, L/C, MoneyGram, Western Union, Cash
Languages: English, Chinese
Product Highlights
Custom stainless steel fin tubes for industrial boilers. High-efficiency H-fin & spiral designs increase heat transfer, reduce abrasion. Certified (ASME, ISO 9001) with 1-year warranty. Custom sizes & materials available.
