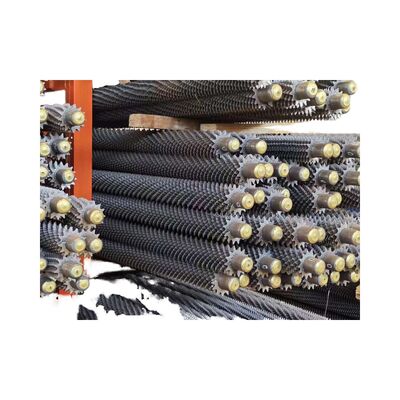

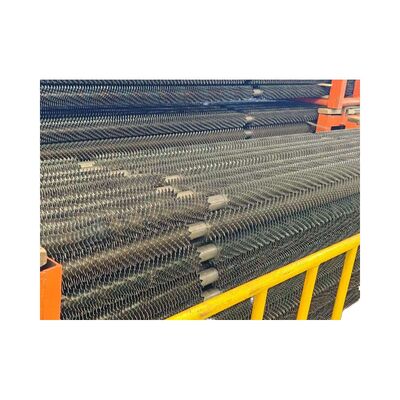

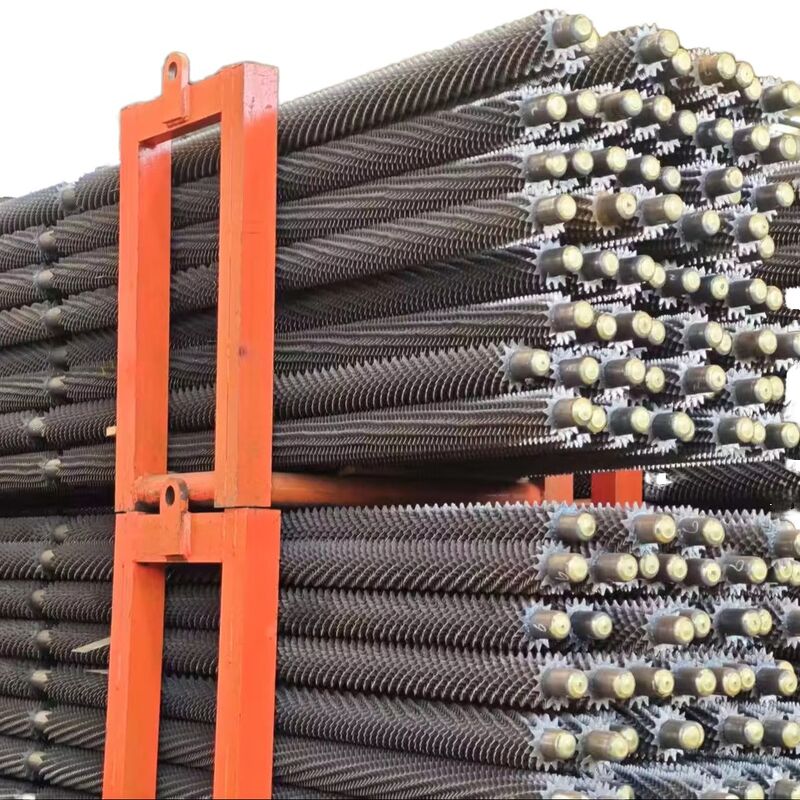

Stainless Steel Boiler Fin Tube for Low/High Pressure Industrial and Power Station Applications
Product Details
| Weight: | 5000 Kg | Base Tube O.D: | 25.4 ~1600 Mm |
|---|---|---|---|
| Base Tube Thickness: | 2.5 ~40 Mm | Fin Height: | 0.5 ~20.0 Mm |
| Fin Thickness: | 0.5 ~3.0 Mm | Fin Pitch: | 5 ~25.4 Mm |
| Material: | Carbon Steel, Alloy Steel, Stainless Steel | Length: | 0 < L < 12000 Mm |
| Base Pipe: | Welded Or Seamless | Pressure: | Low/High Pressure |
| Surface Treatment: | Painted | Smelting Process: | EF+LF+VD |
| UT Standard: | ASTM A388 Or EN10228 | Min Weight: | 10 Ton |
| Max Weight: | 1000 Ton | ||
| Highlight |
Stainless Steel Boiler Fin Tube,Low/High Pressure Finned Tube,Industrial Application H-fin Tube |
||
Product Description
| Item | Base Tube O.D (mm) | Base Tube Thickness (mm) | Fin Height (mm) | Fin Thickness (mm) | Fin Pitch (mm) |
|---|---|---|---|---|---|
| Range | 25.4 ~ 1600mm | 2.5 ~ 40mm | 0.5 ~ 20.0mm | 0.5 ~ 3.0mm | 5 ~ 25.4mm |
| Material | Carbon Steel, Alloy Steel, Stainless Steel | ||||
| Length | 0 < L < 12000mm | ||||
| Product | H-fin Tube |
|---|---|
| Base Pipe | Welded or Seamless |
| Material | Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys |
| Application | H economizer, H evaporator, H superheater, H air heater and related systems |
| Description | Boiler economizer |
|---|---|
| Material | Alloy steel, Carbon steel, SA210C, SA213T22, etc. |
| Material Standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight | Min: 10 ton, Max: 1000 ton |
| Smelting Process | EF+LF+VD |
| Process | Material→Ingot→Hot/Cold-Rolling→Heat treatment (Normalizing+tempering)→Inspection→Rough machining→UT→2nd Heat treatment→Finishing machining→Inspection |
| UT Standard | ASTM A388 or EN10228, etc. |
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler
- Hydraulic test report: ensure the standard working pressure and safety
2) Each procedure is crafted by professional skilled labor, followed by particular QC
3) All information of our products can be checked in efficient management system
Provide product information, market research forecasting, product customization, product processing, consultation and other services for your convenience.
After sales:
1) Technical training according to customer requirements
2) We promise replacement under warranty
3) We promise to supply maintenance spare parts
4) Regular call back or visit customers
5) On time response to mail and phone calls of your complaints or consultation
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, L/C, MoneyGram, Western Union, Cash
Language Spoken: English, Chinese
Product Highlights
High-performance H-fin boiler tubes for industrial & power station use. Custom alloy steel, stainless steel, or carbon steel construction. Enhances heat exchange efficiency, reduces tube count & abrasion. Backed by 38+ years expertise, ISO/ASME/CE certifications, and seaworthy packing.
