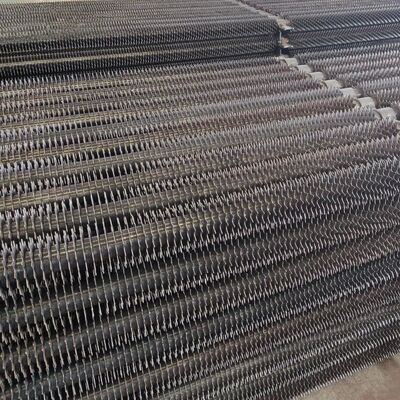

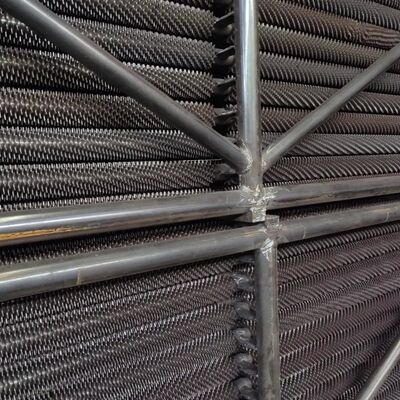

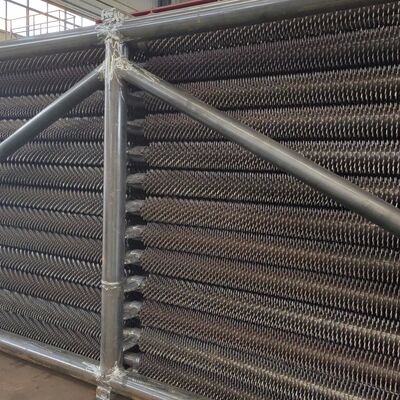

ASME Standard Painted Carbon Steel Boiler Spiral Fin Tube with Customized Specifications for Heat Exchanger Applications
Product Details
| Surface Treatment: | Painted | Material: | ND Steel / Carbon Steel / Alloy Steel |
|---|---|---|---|
| Fin Height: | Customized | Thickness: | Customized |
| Length: | Customized | Fin Pitch: | Customized |
| Size: | Customized | Shape: | Round, Square, Rectangle, Oval, Finned |
| Wall Thickness: | ≥3.5mm | Production Capacity: | 500 Tons/Month |
| Minimum Order: | 3 TONS | Supply Ability: | 100 Tons/Month |
| Fin Type: | Spiral | Heat Exchanger Type: | Boiler Fin Tube |
| Anti-corrosion Treatment: | Special Anti-corrosion Liquid | ||
| Highlight |
ASME Standard Boiler Fin Tube,Painted Carbon Steel Spiral Fin Tube,Customized Specification Heat Exchanger Fin Tube |
||
Product Description
The fin tube is a specialized heat exchanger element designed to maximize thermal efficiency. By incorporating fins on the surface of heat exchange tubes, we significantly increase the surface area, resulting in superior heat transfer performance.
- Anti-corrosion Performance: Special anti-corrosion coating on inner walls and rust-resistant exterior treatments ensure excellent corrosion resistance and extended service life
- Enhanced Wear Resistance: Wall thickness typically exceeds 3.5mm, with customizable specifications to meet specific wear resistance requirements
- Low Contact Thermal Resistance: Spiral fin design maximizes contact area with air, minimizing thermal resistance for optimal heat transfer
- Anti-dust Accumulation: Engineered design prevents dust buildup and facilitates easy cleaning maintenance
- Fin Tube Types: Round, Square, Rectangle, Oval, Finned
- Surface Treatments: Pickling, Sand Blasting, Galvanizing
- Fin Pitch: Customized to specifications
- Packaging: Wooden Cases, Pallets
- Applications: Boilers, Heat Exchangers, Condensers
- Material Options: Carbon Steel, Stainless Steel Fin Tubes
| Parameter | Description |
|---|---|
| Fin Height | Customized |
| Thickness | Customized |
| Package | Wooden Cases, Pallet |
| Length | Customized |
| Fin Pitch | Customized |
| Application | Boiler, Heat Exchanger, Condenser, Boiler Fin Tube Heat Exchanger |
| Material | Carbon Steel, Alloy Steel, Stainless Steel, Copper, Aluminum |
| Size | Customized |
| Shape | Round, Square, Rectangle, Oval, Finned |
| Standard | ASME, ASTM, EN, JIS, DIN |
HD Boiler Fin Tube represents premium quality carbon steel fin tubing engineered for demanding applications in boilers, heat exchangers, condensers, and fin-and-tube heat exchanger systems. Manufactured in compliance with ASME, ISO9001:2015, and ISOEN3834 standards, these tubes are available in customized sizes and thicknesses to meet specific customer requirements.
Ordering Information: Minimum order quantity: 3 TONS. Pricing is negotiable. Delivery time varies by quantity. Payment terms: 30% after contract, 70% before shipment, or 100% L/C at sight. Supply capacity: 100 tons/month.
Each boiler fin tube is individually protected with cardboard sleeves and securely packaged in wooden crates or cartons. Pallets are covered with waterproof tarps to ensure product integrity during transit. Shipping methods are tailored to order size: small packages via UPS or FedEx, larger shipments via freight carriers including R&L Carriers or Estes Express.
Hua Dong Boiler Co., Ltd. is an established high-tech enterprise specializing in boiler manufacturing since 1985. With two manufacturing facilities spanning 400,000 m² and fixed assets of USD 110,000,000, the company employs 1,100 personnel including 150 technicians and 600 certified welders.
Certifications: Grade A boilers and Grade A1&A2 pressure vessels licenses from Chinese General Administration of Quality Supervision; ASME "S", "U", and "NB" stamps; ISO9001, SO3834, EN12952 Quality Management System certifications.
Product Highlights
ASME-certified spiral fin tubes for boilers & heat exchangers. Custom carbon/alloy steel options with anti-corrosion coating, enhanced durability, and superior heat transfer efficiency. ISO9001 certified manufacturer with 500-ton monthly capacity.
