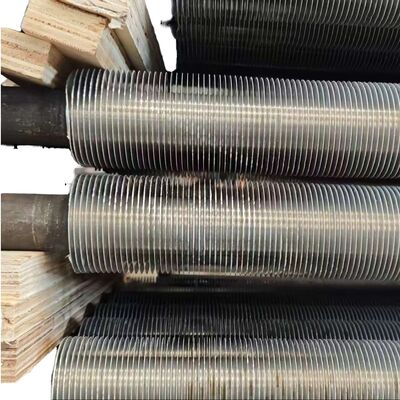

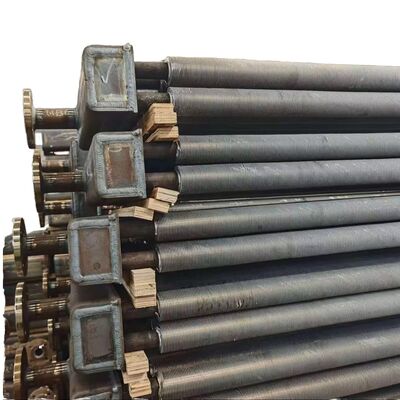

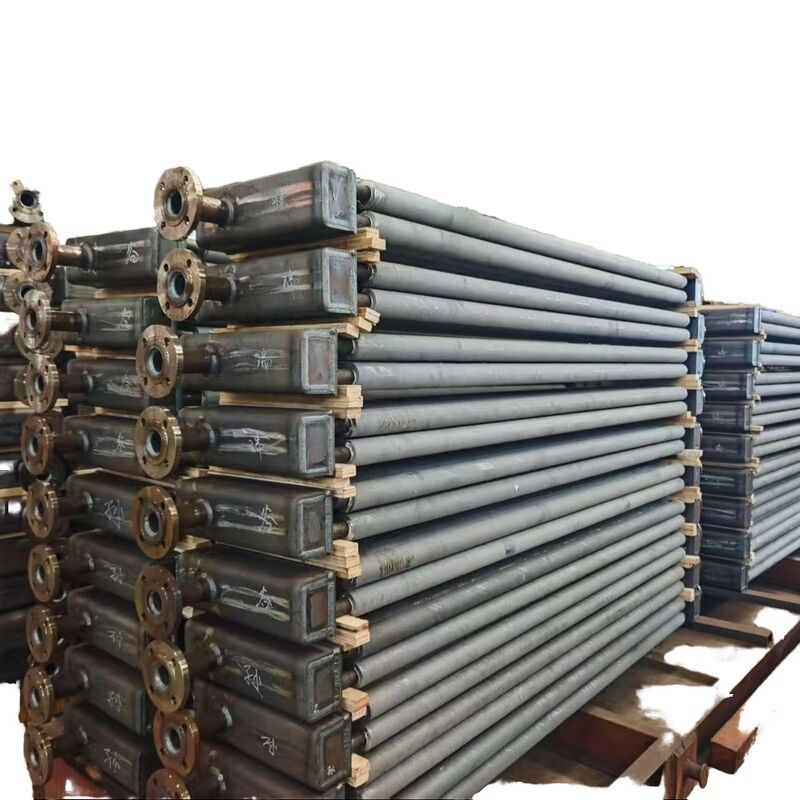

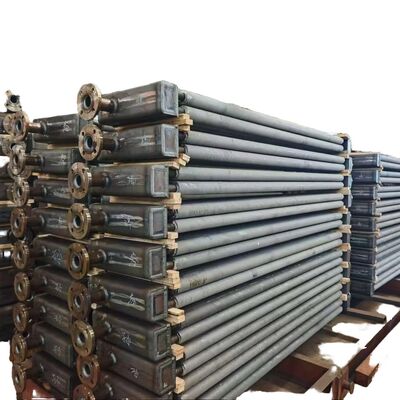

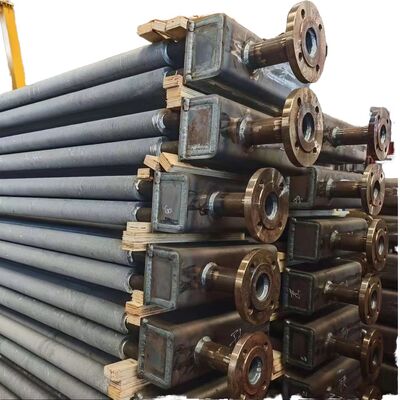

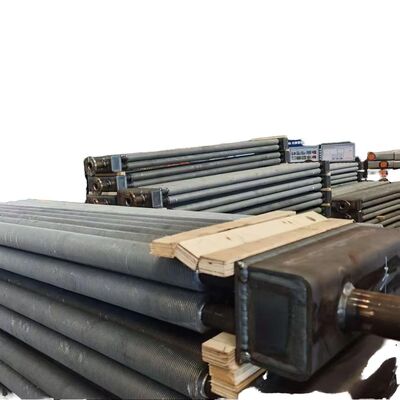

Stainless Steel Boiler Spiral Fin Tube for High Heat Transfer with Customizable Dimensions
Product Details
| Weight: | 5000 Kg | Base Tube O.D: | 25.4 ~1600 Mm |
|---|---|---|---|
| Base Tube Thickness: | 2.5 ~40 Mm | Fin Height: | 0.5 ~20.0 Mm |
| Fin Thickness: | 0.5 ~3.0 Mm | Fin Pitch: | 5 ~25.4 Mm |
| Material: | Stainless Steel, Carbon Steel, Alloy Steel | Length: | 0 < L < 12000 Mm |
| Base Pipe: | Welded Or Seamless | Pressure: | Low/High Pressure |
| Surface Treatment: | Painted | Smelting Process: | EF+LF+VD |
| UT Standard: | ASTM A388 Or EN10228 | Min Weight: | 10 Ton |
| Max Weight: | 1000 Ton | ||
| Highlight |
Stainless Steel Boiler Spiral Fin Tube,High Heat Transfer Spiral Finned Tube,Customizable Dimensions H-Finned Tube |
||
Product Description
| Item | Base Tube O.D (mm) | Base Tube Thickness (mm) | Fin Height (mm) | Fin Thickness (mm) | Fin Pitch (mm) |
|---|---|---|---|---|---|
| Range | 25.4 ~ 1600mm | 2.5 ~ 40 mm | 0.5 ~ 20.0 mm | 0.5 ~ 3.0 mm | 5 ~ 25.4 mm |
| Material | Carbon Steel, Alloy Steel, Stainless Steel | ||||
| Length | 0 < L < 12000mm | ||||
| Product | H-fin Tube |
|---|---|
| Base Pipe | Welded or Seamless |
| Material | Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys |
| Application | H economizer, H evaporator, H superheater, H air heater and related systems |
| Description | Boiler economizer |
|---|---|
| Material | Alloy steel, Carbon steel, SA210C, SA213T22, and related grades |
| Material Standard | ASTM, EN, ISO, and equivalent international standards |
| Dimension | Customized to application requirements |
| Weight | Minimum: 10 tons | Maximum: 1000 tons |
| Smelting Process | EF + LF + VD |
| Manufacturing Process | Material → Ingot → Hot/Cold-Rolling → Heat treatment (Normalizing + tempering) → Inspection → Rough machining → UT → Secondary Heat treatment → Finishing machining → Final Inspection |
| UT Standard | ASTM A388, EN10228, and equivalent standards |
- Impact test and Strength calculation reports with comprehensive applied materials documentation
- 100% NDT (non-destructive inspection) reporting for steel plate, tube, and electrode materials
- Comprehensive X-ray, γ-ray, and liquid penetrant test inspection reporting for all welding seams
- Hydraulic test reporting to validate standard working pressure and ensure operational safety
- All manufacturing processes strictly adhere to ISO quality and CE system requirements
- Each production procedure is executed by professional skilled labor with dedicated QC oversight
- Comprehensive product information accessible through our efficient management system
- Technical training programs tailored to customer requirements
- Warranty-based replacement commitments
- Maintenance spare parts supply assurance
- Regular customer callback and visit programs
- Prompt response to customer complaints and consultation requests
Product Highlights
Durable H-fin boiler tubes for superior heat transfer in industrial/power applications. Custom sizes, alloy/stainless steel, certified (ISO/ASME), with video inspection and seaworthy packing.
